TS34 - Verify Check Valves Ability to Hold Vacuum
TS34 - Verify Check Valves Ability to Hold Vacuum

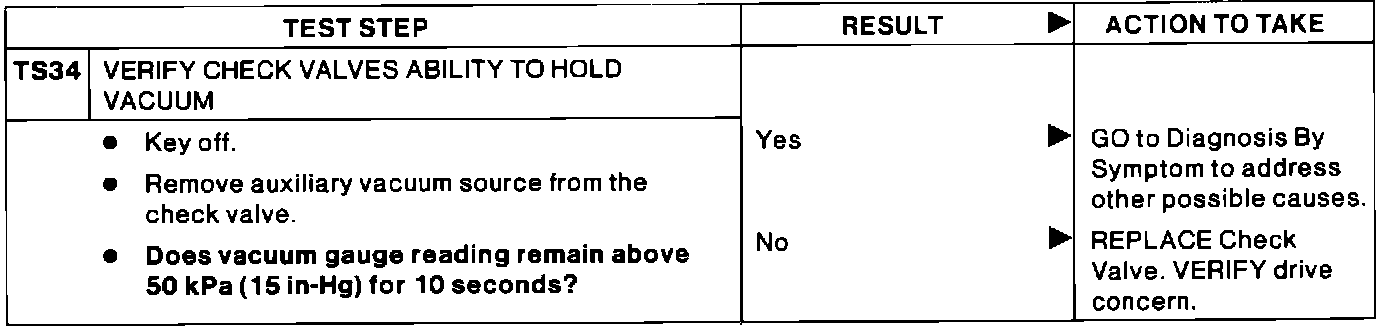

Diagnostic Test TS34:
Vacuum Check Valve:
