Home >> Mercury >> 1992 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Air Injection >> Testing and Inspection >> TS32 - Check Vacuum Reservoir Function

TS32 - Check Vacuum Reservoir Function

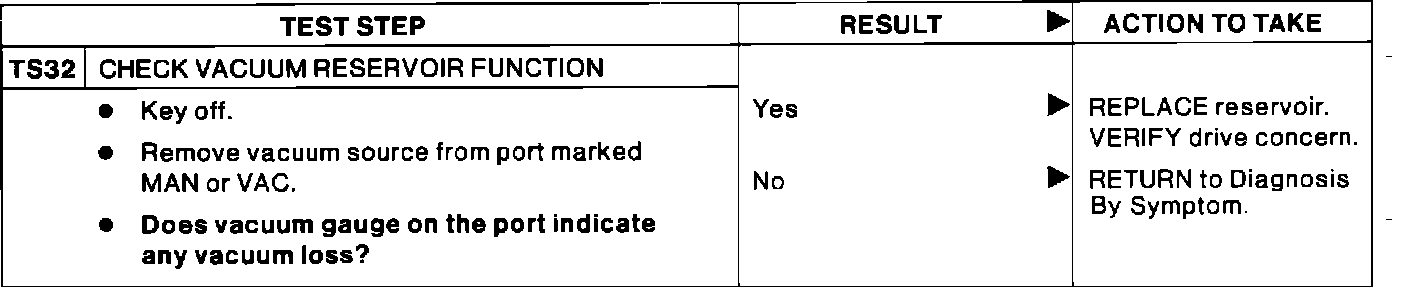

Diagnostic Test TS32:

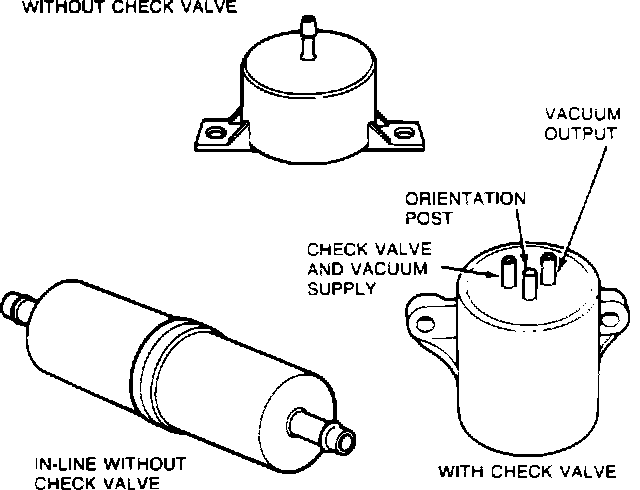

Vacuum Reservoirs:
