TS22 - Check Combination Air Control Valve Operation

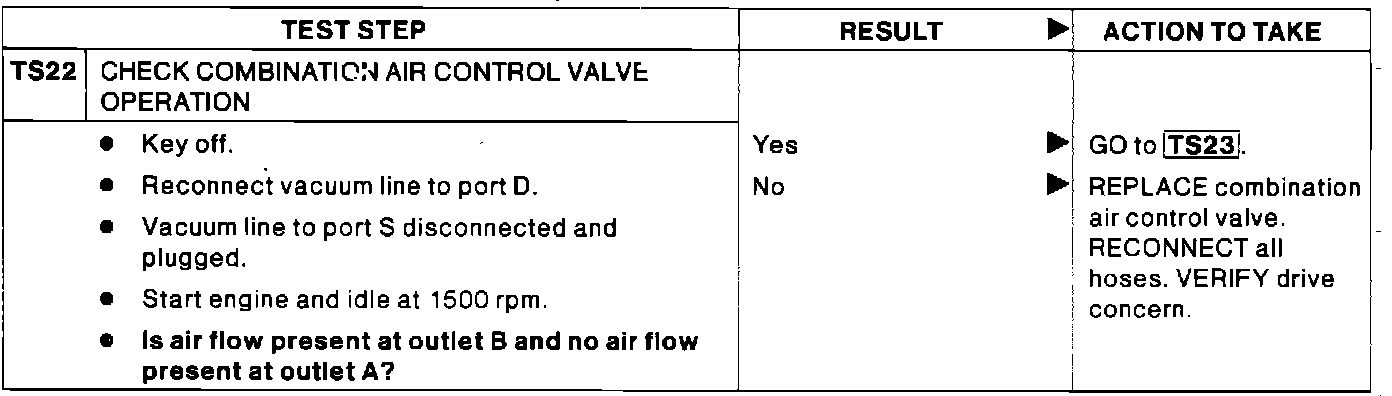

Diagnostic Test TS22:



Combination Air Bypass/Air Control Valve:
