TS13 - Check For Vacuum at Air Control Valve

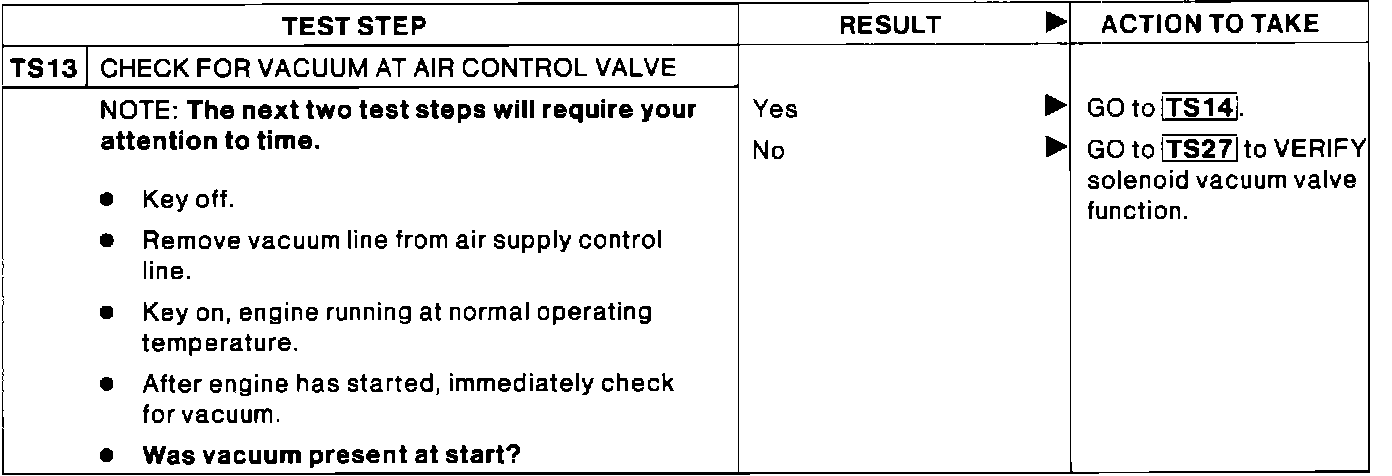

Diagnostic Test TS13:



Air Control Valve (Thermactor Bypass Valve):
