TD - Manual Lever Position (MLP) Sensor
>>

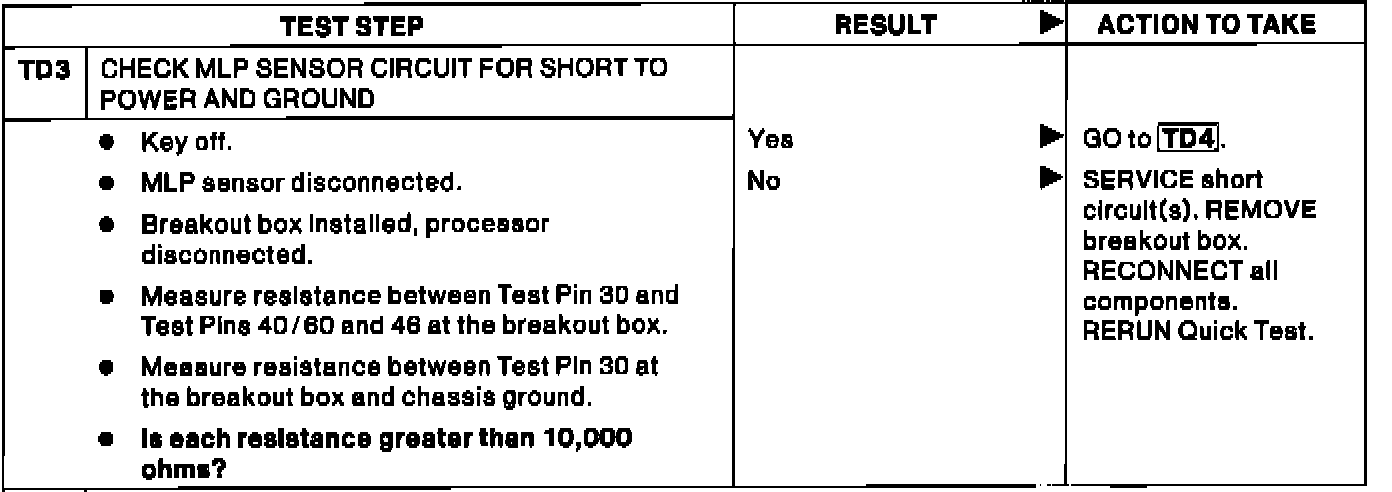

TD3 - Check MLP Sensor Circuit For Short to Power and Ground
TD3 - Check MLP Sensor Circuit For Short to Power and Ground
Pinpoint Test TD3:
