Home >> Mercury >> 1992 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> TB - 4X4 Low/Overdrive Cancel Switch >> TB7 - Check Harness Circuit For Shorts to Power

TB7 - Check Harness Circuit For Shorts to Power

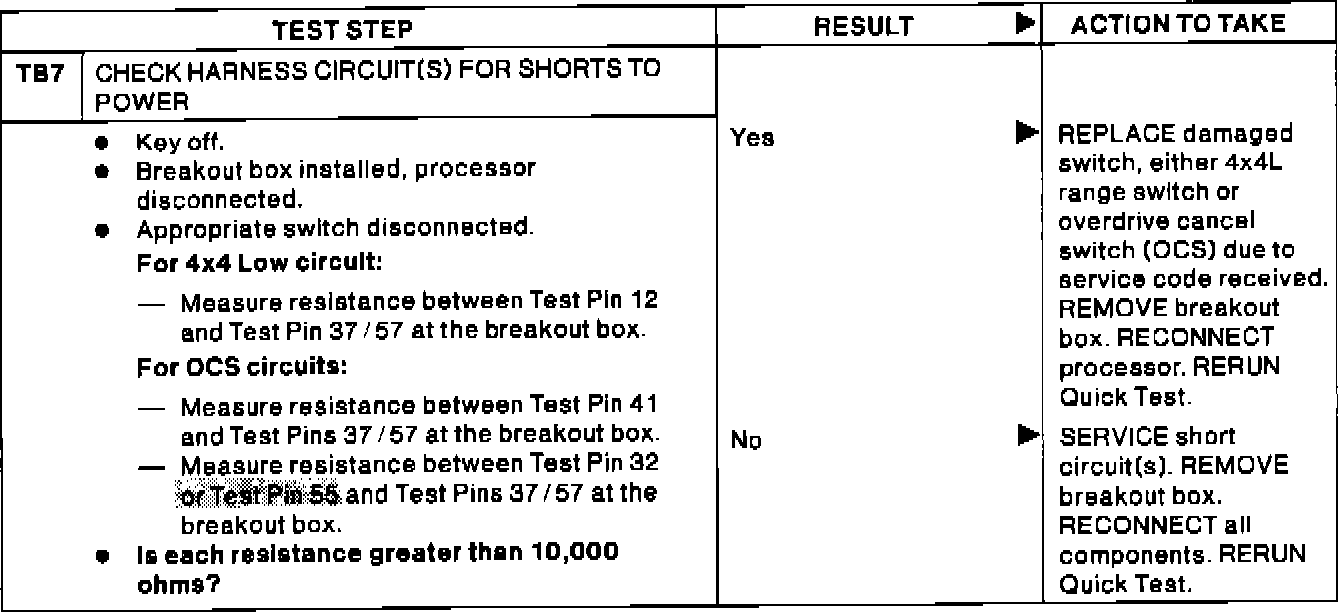

Pinpoint Test TB7:
