TB - 4X4 Low/Overdrive Cancel Switch
>>
TB3 - Check Harness Circuit For Short to Ground
TB3 - Check Harness Circuit For Short to Ground

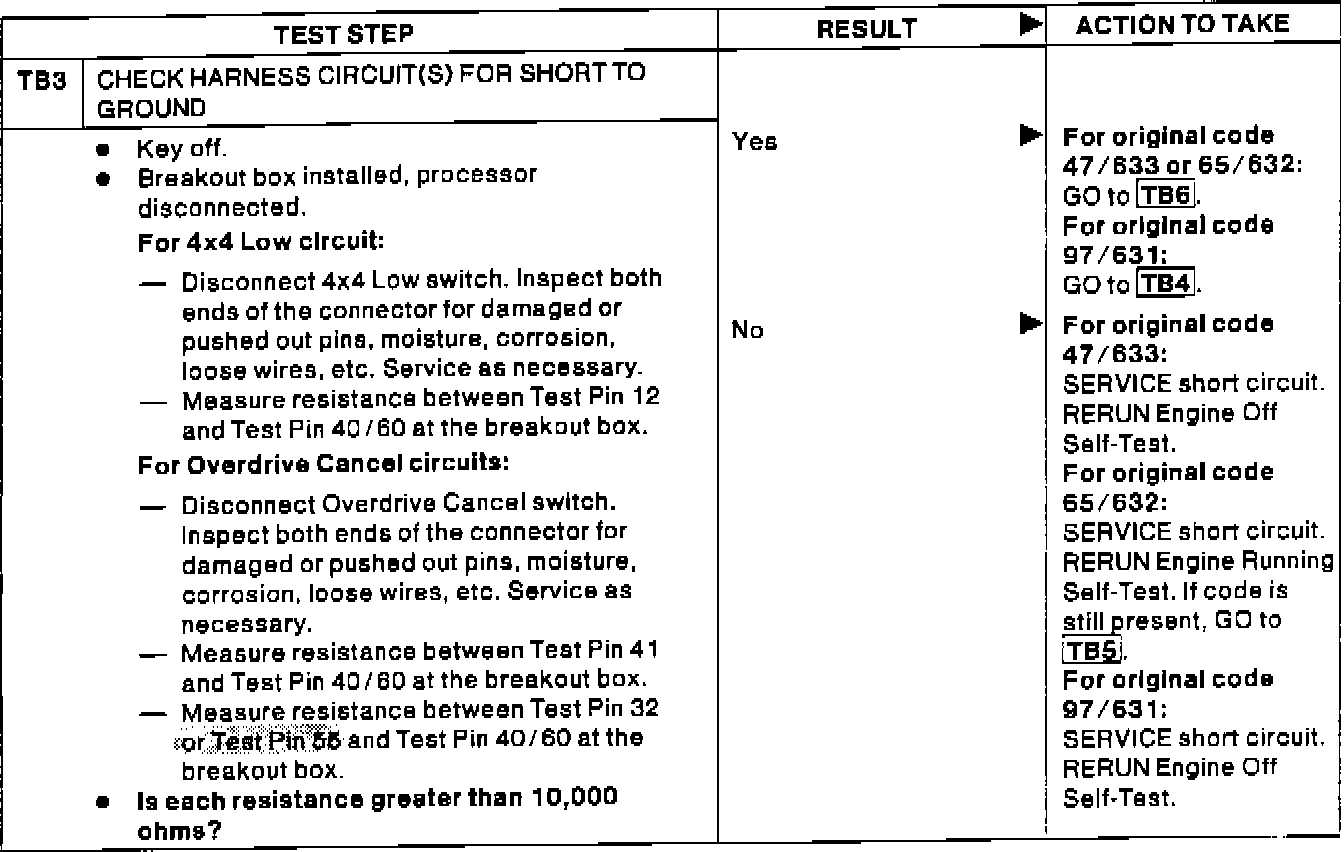

Pinpoint Test TB3:
