FF - Power Steering Pressure (PSP) Switch
>>
FF4 - Check PSPS Circuits For Shorts
FF4 - Check PSPS Circuits For Shorts
*** UPDATED BY TSB 926B1 DATED 02-01-92

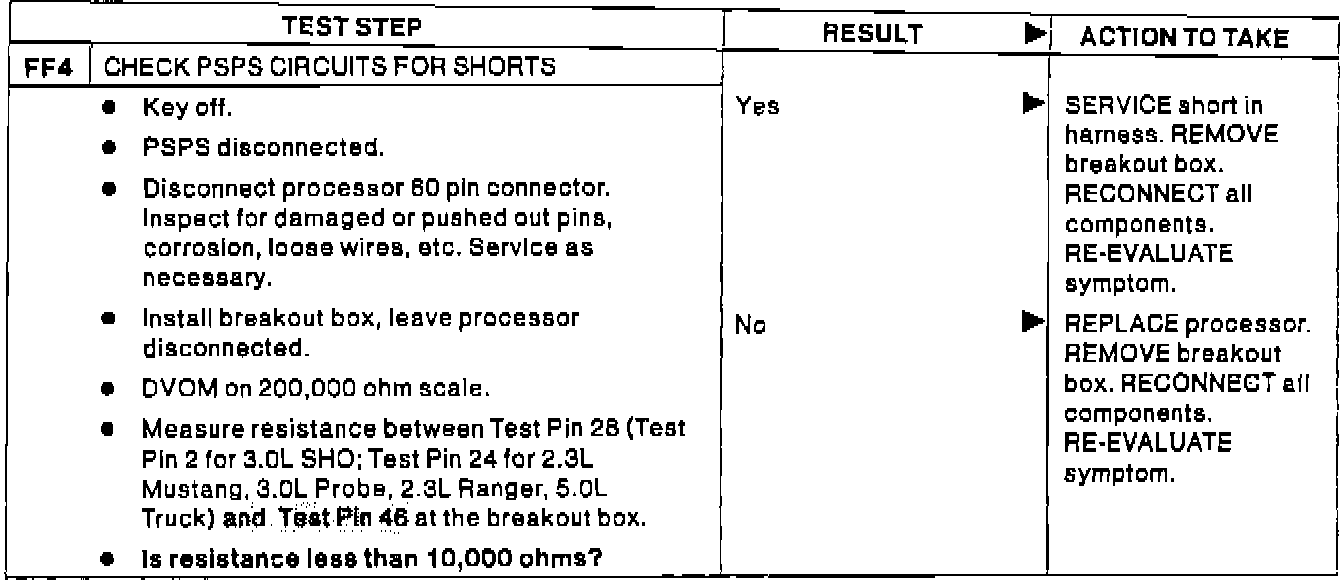

Pinpoint Test FF4:
