Home >> Mercury >> 1992 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> FE - Electrical Load Inputs >> FE23 - Check DRL Circuit Continuity

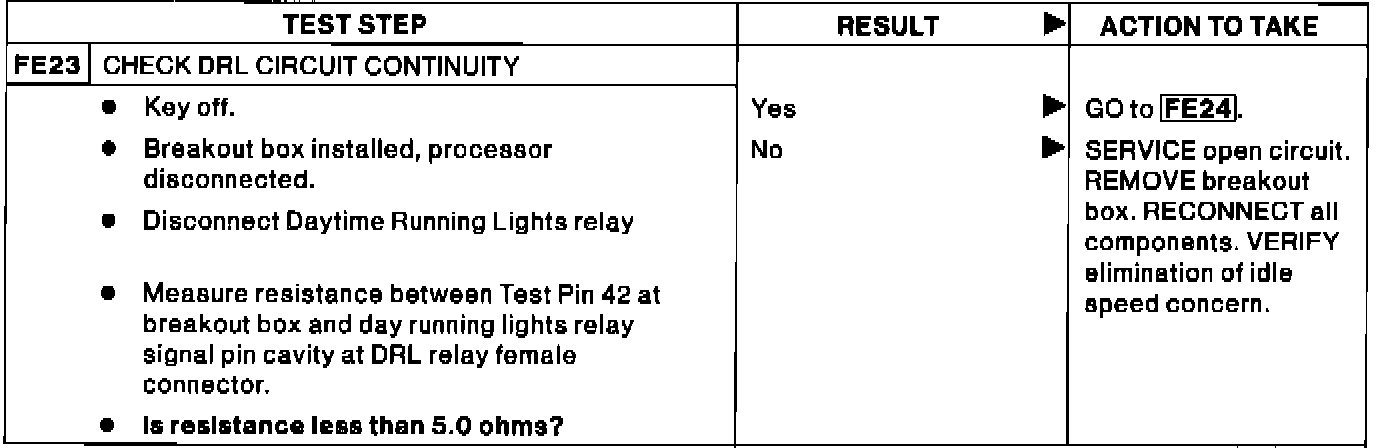

FE23 - Check DRL Circuit Continuity

Pinpoint Test FE23:
