Home >> Mercury >> 1992 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> A2-A8

A2-A8

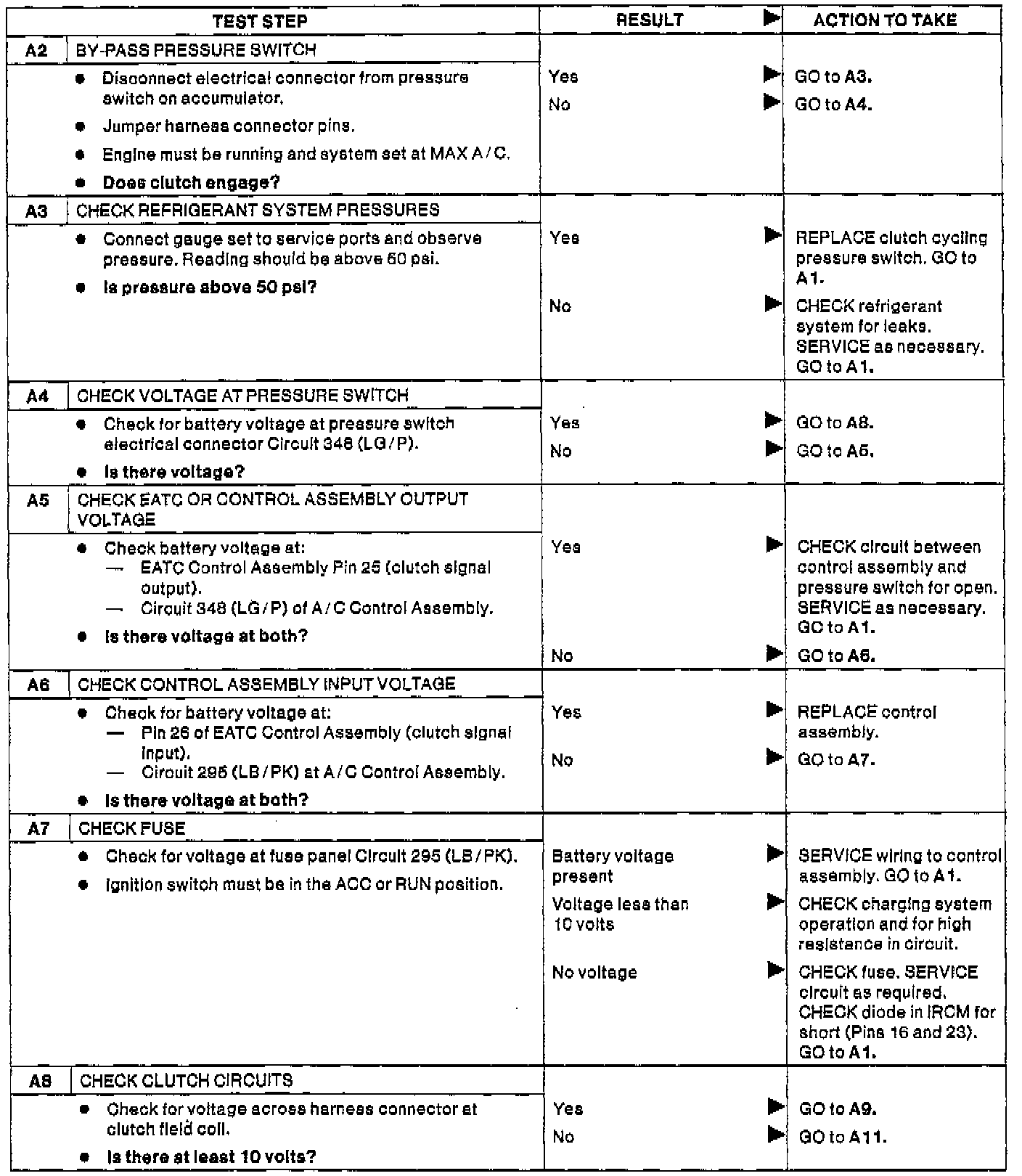

Pinpoint Test A2 - A8 - A/C Compressor Clutch Circuit Diagnosis:
