With Manual A/C-Heater

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the instrument panel finish applique.

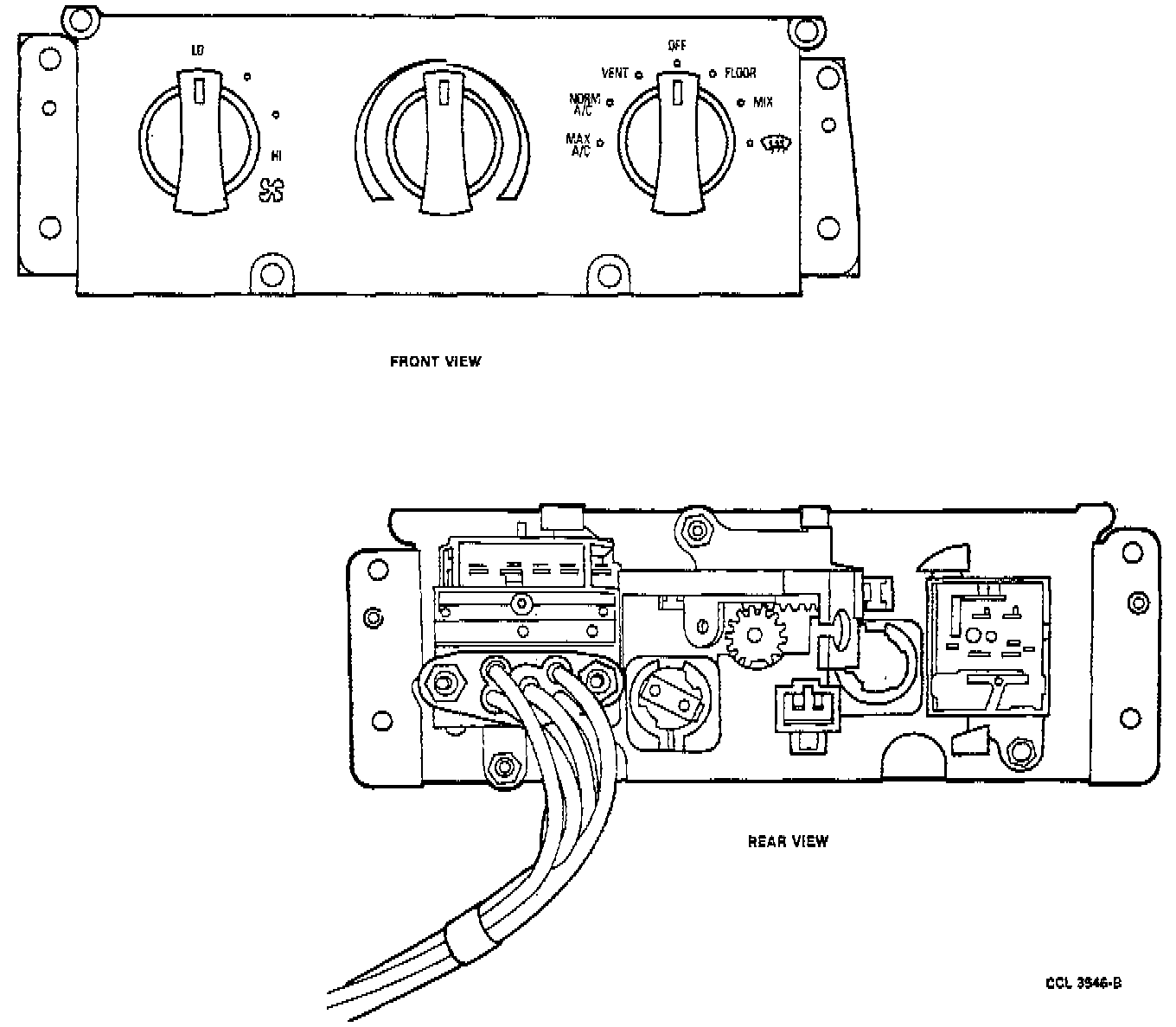

Manual A/C-Heater Control Assembly:

3. Remove the four screws attaching the control assembly to the instrument panel.
4. Pull the control assembly from the instrument panel opening and disconnect the wire connectors from the control assembly.
5. Disconnect the vacuum harness and the temperature control cable from the control assembly. Discard the used pushnut from the vacuum harness.

INSTALLATION
1. Connect the temperature cable to the control assembly.
2. Connect the wire connectors and the vacuum harness to the control assembly using new pushnuts.

CAUTION: Push on the vacuum harness retaining nuts. Do not attempt to screw them onto the post.

3. Position the control assembly to the instrument panel opening and install the four retaining screws.
4. Install the instrument panel finish applique.
5. Connect the battery ground cable.

NOTE: On vehicles equipped with Electronic Engine Control (EEC), when the battery has been disconnected and reconnected, some abnormal drive symptoms may occur while the EEC processor relearns its adaptive strategy. The vehicle may need to be driven 10 miles or more to relearn the strategy.

6. Check the system for proper operation.
