Home >> Mercury >> 1992 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Accessories and Optional Equipment >> Radio/Stereo >> AM/FM ESR or AM/FM/Cassette ESC

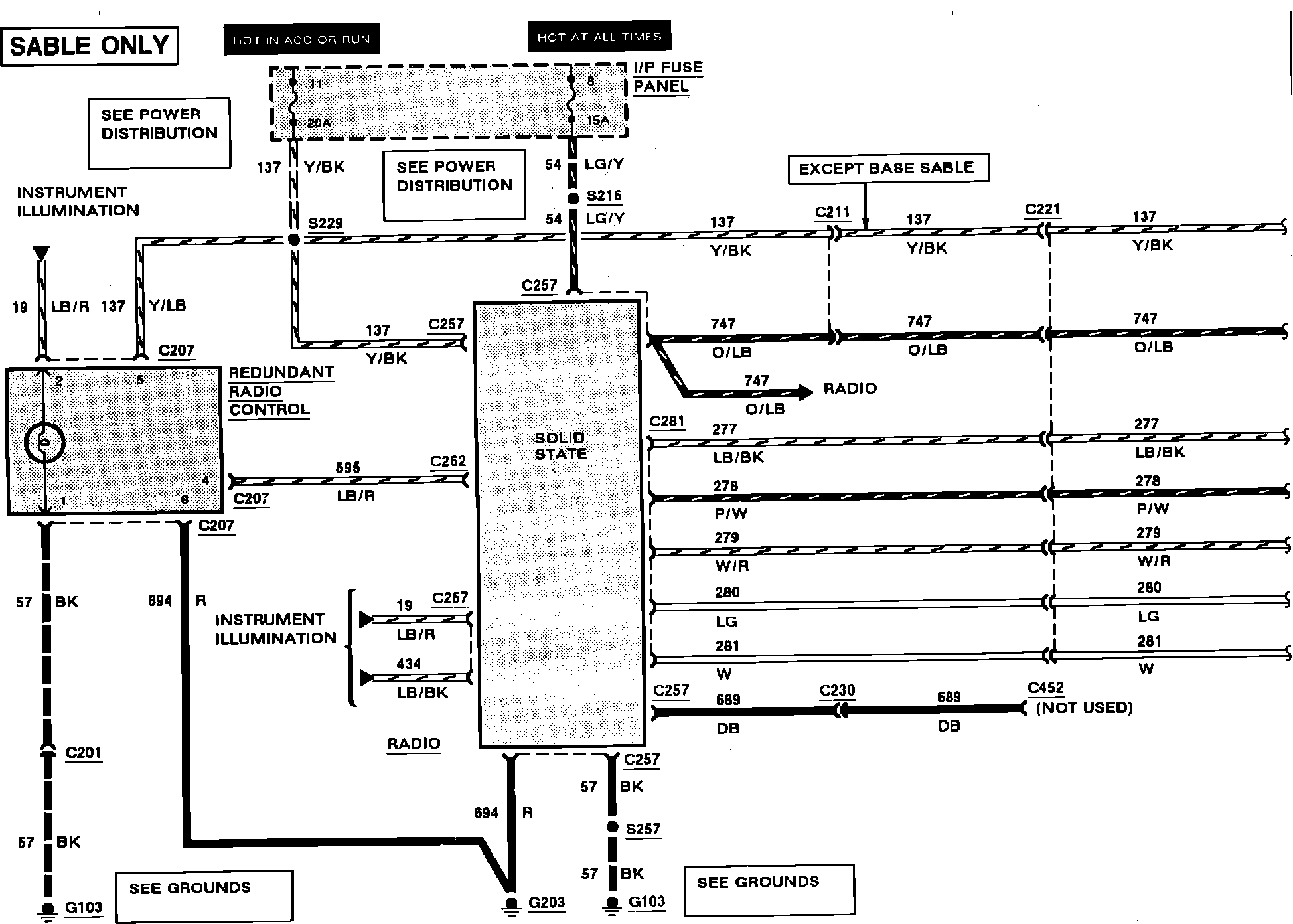

AM/FM ESR or AM/FM/Cassette ESC

Circuit Description Chart:

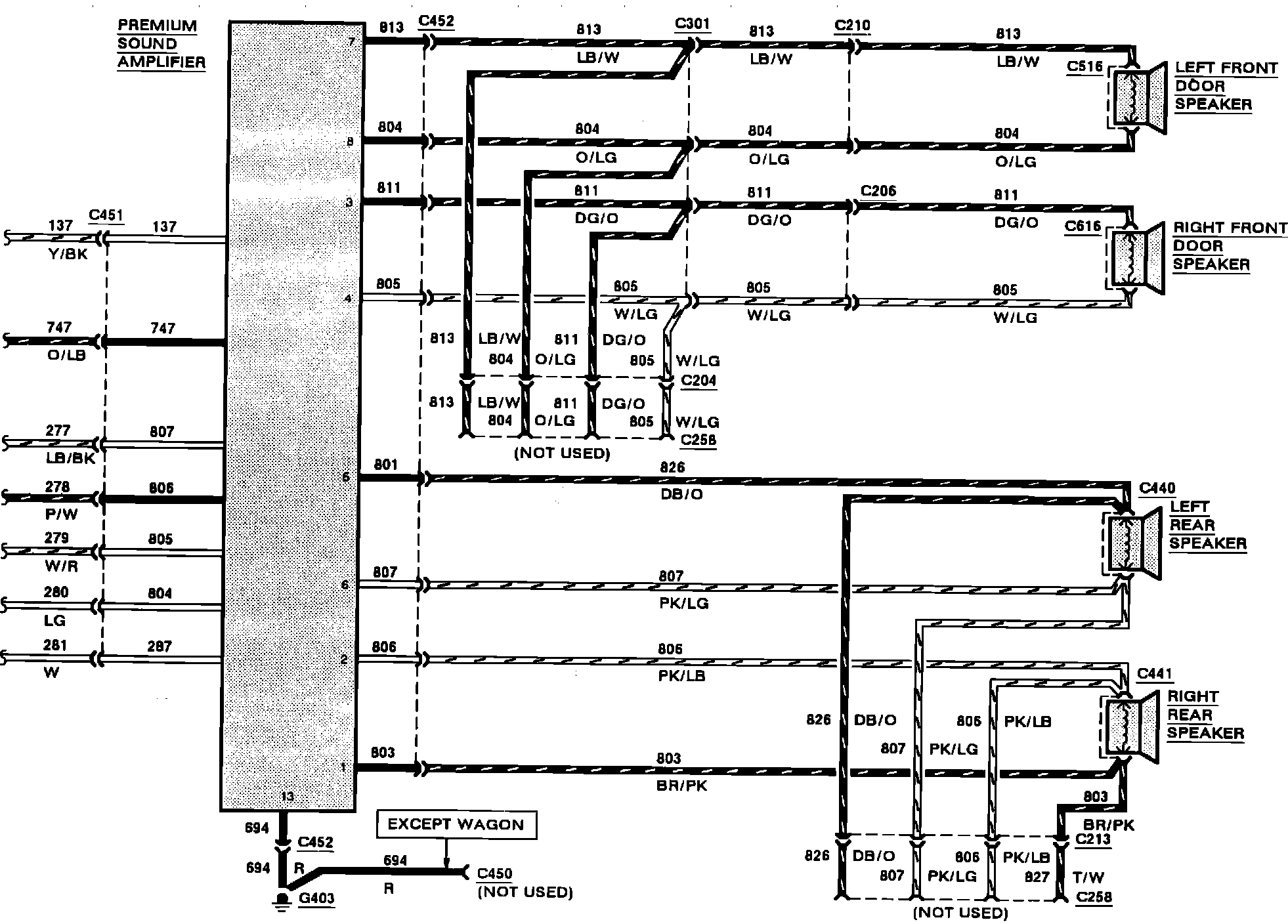

Radio (Premium Sound):



Radio (Premium Sound):
