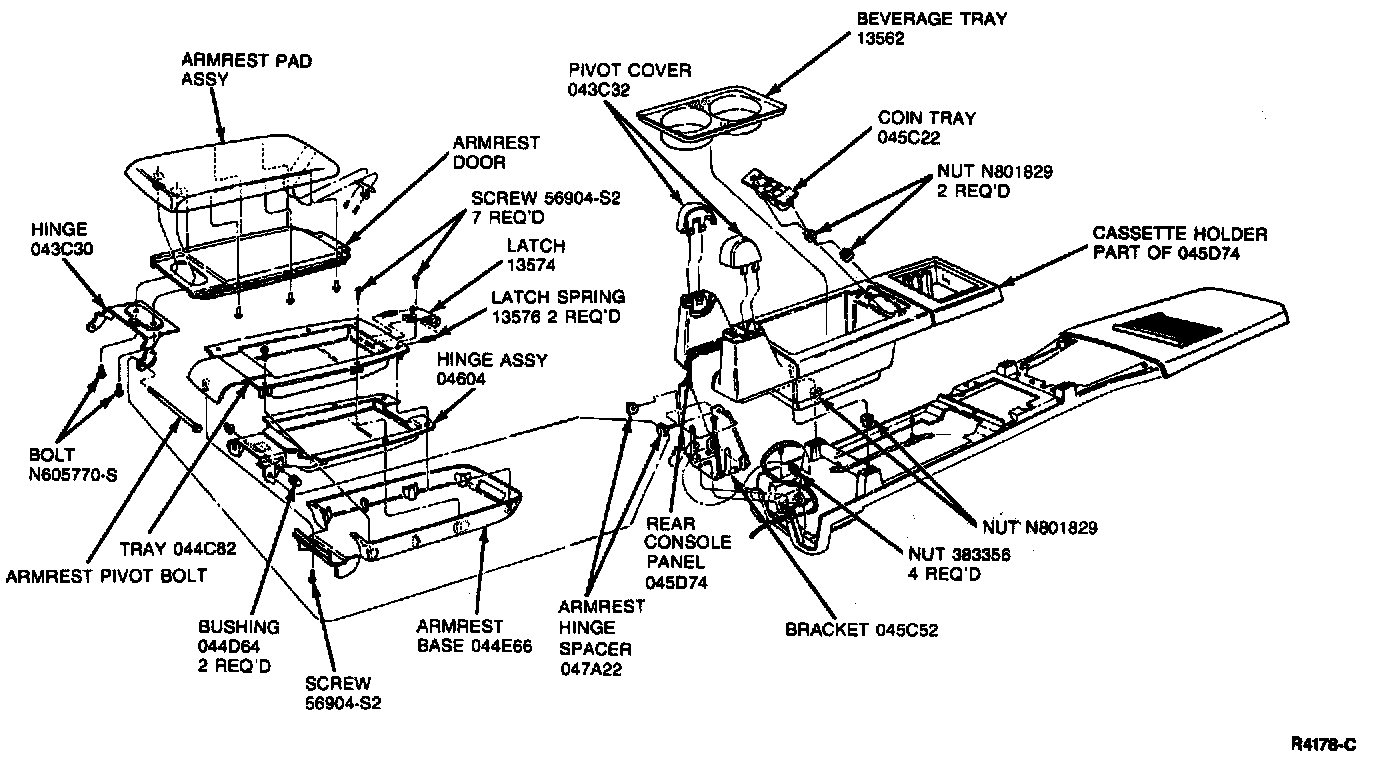

Arm Rest: Service and Repair

Removal and Installation
1. Open armrest door and remove two hinge-to-door retaining screws. Remove armrest door.
2. Remove both hinge covers (snap oft) to expose armrest base-to-mounting bracket attaching bolt.
3. Remove base and armrest base.
4. To install, reverse Removal procedure.
