Master Switch

COMPONENT TESTING PROCEDURE

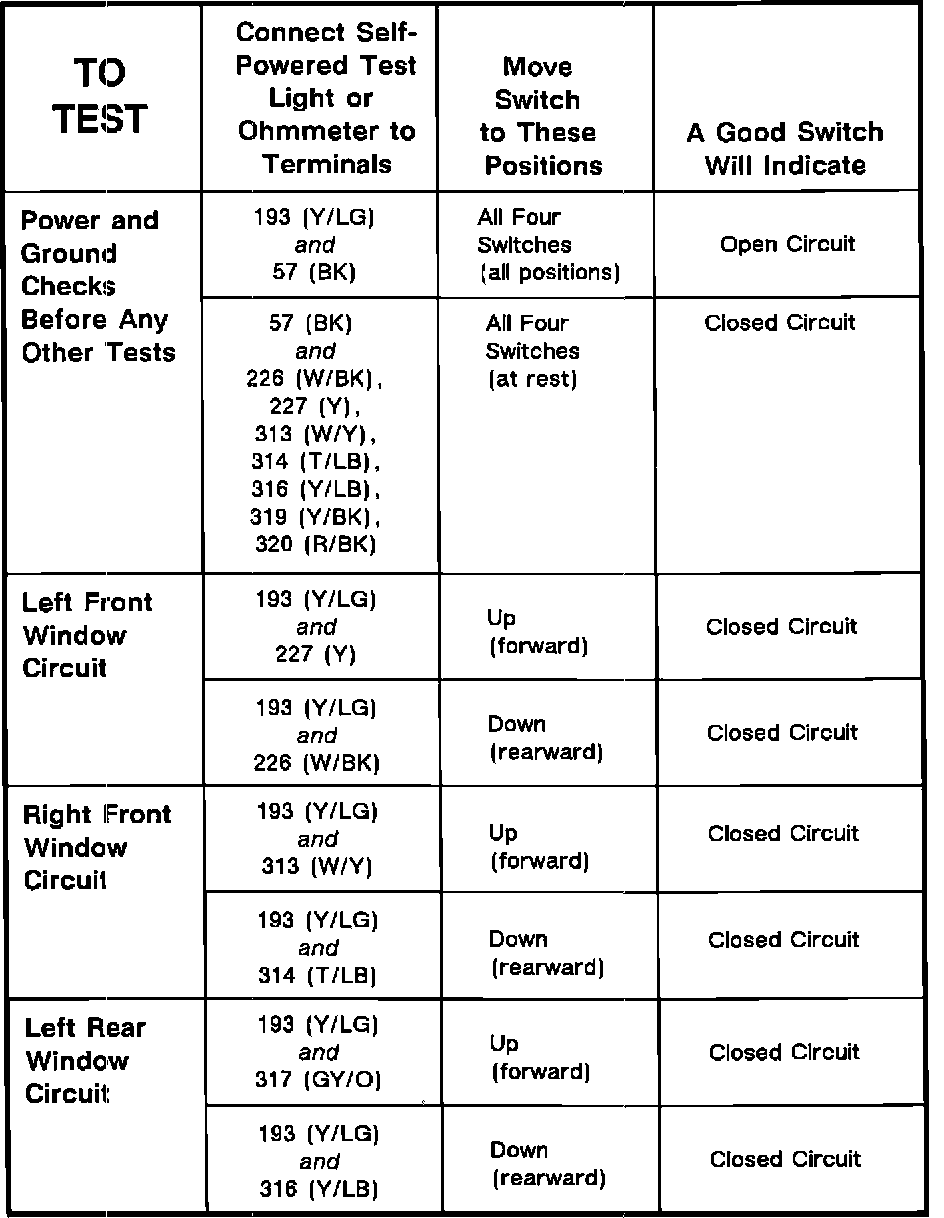

Component Testing Procedure - Window Circuits:

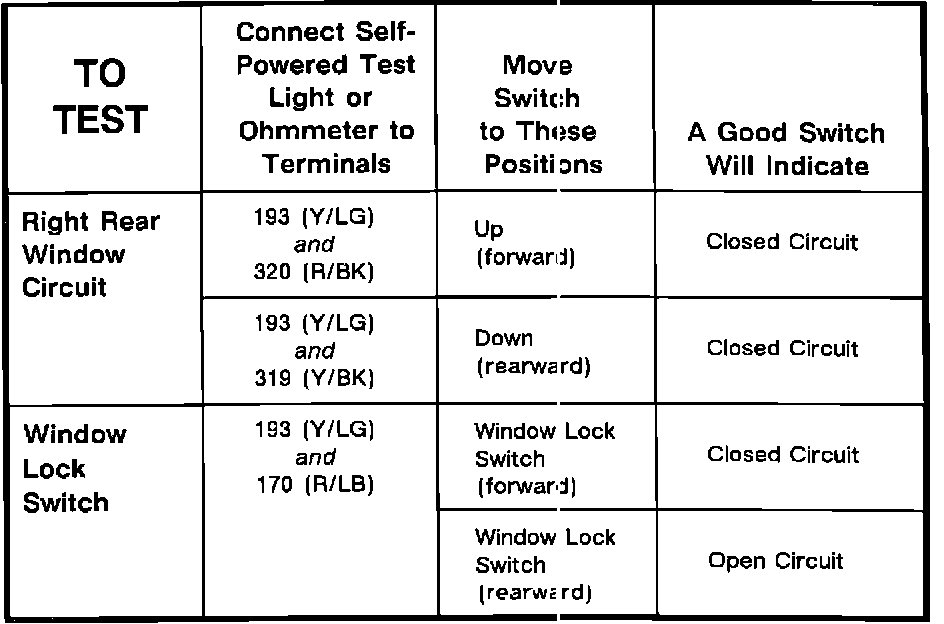

Component Testing Procedure - Window Circuits:






TERMINAL IDENTIFICATION ON SWITCH

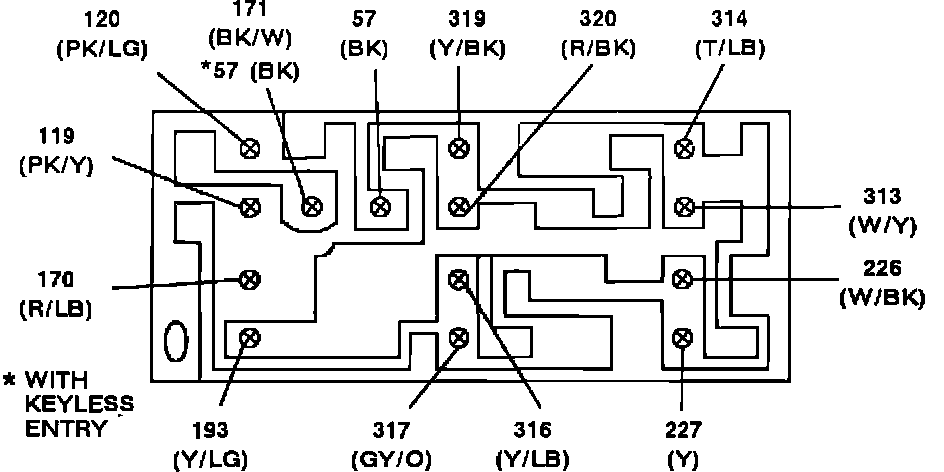

Terminal Location On Switch:






SCHEMATIC

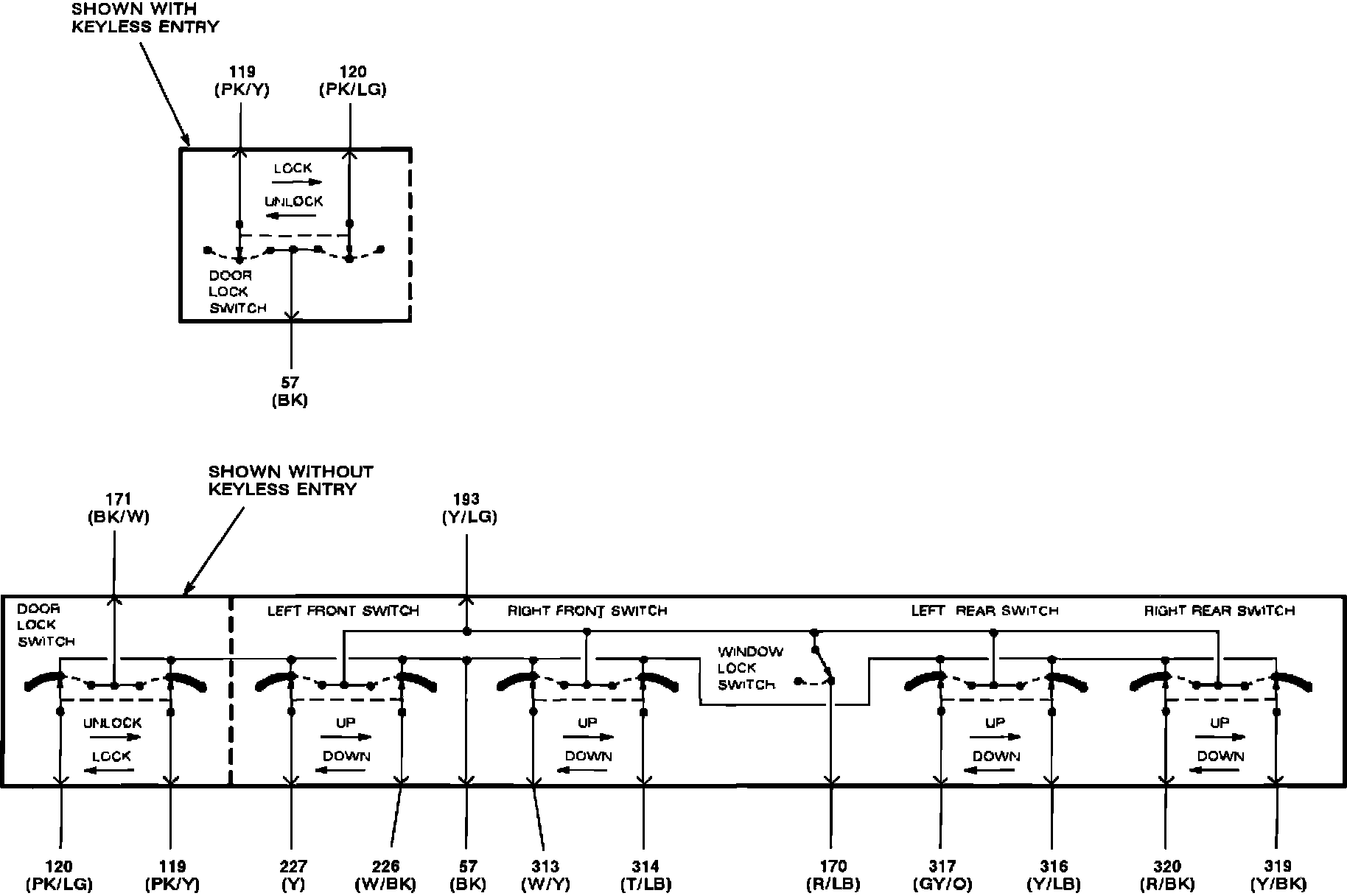

Schematic:
