Master Control

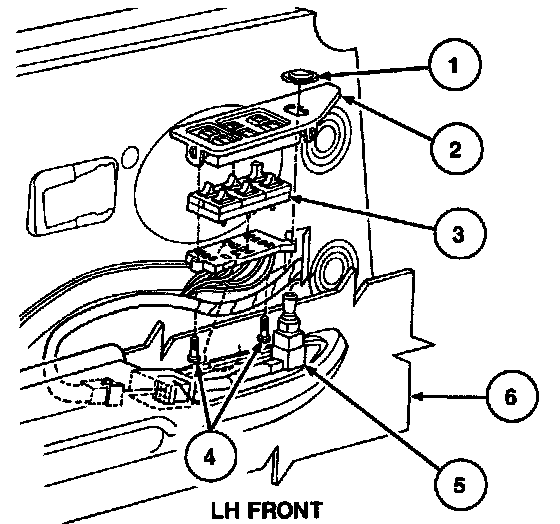

Removal and Installation

1. Disconnect battery ground cable.

2. Remove nut from outside mirror control switch.

3. Pry up gently on the switch housing assembly starting at the front.

4. Remove the two screws retaining the connector to the switch housing.

5. Carefully pry the switch from the connector with a small screwdriver. Take care not to damage the electrical contact pins.

6. To install, reverse Removal procedure.
