Home >> Mercury >> 1992 >> Grand Marquis V8-281 4.6L SOHC >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Pinpoint Tests >> E Comp Relay/Vent Solenoid Shorted to Ground

E Comp Relay/Vent Solenoid Shorted to Ground

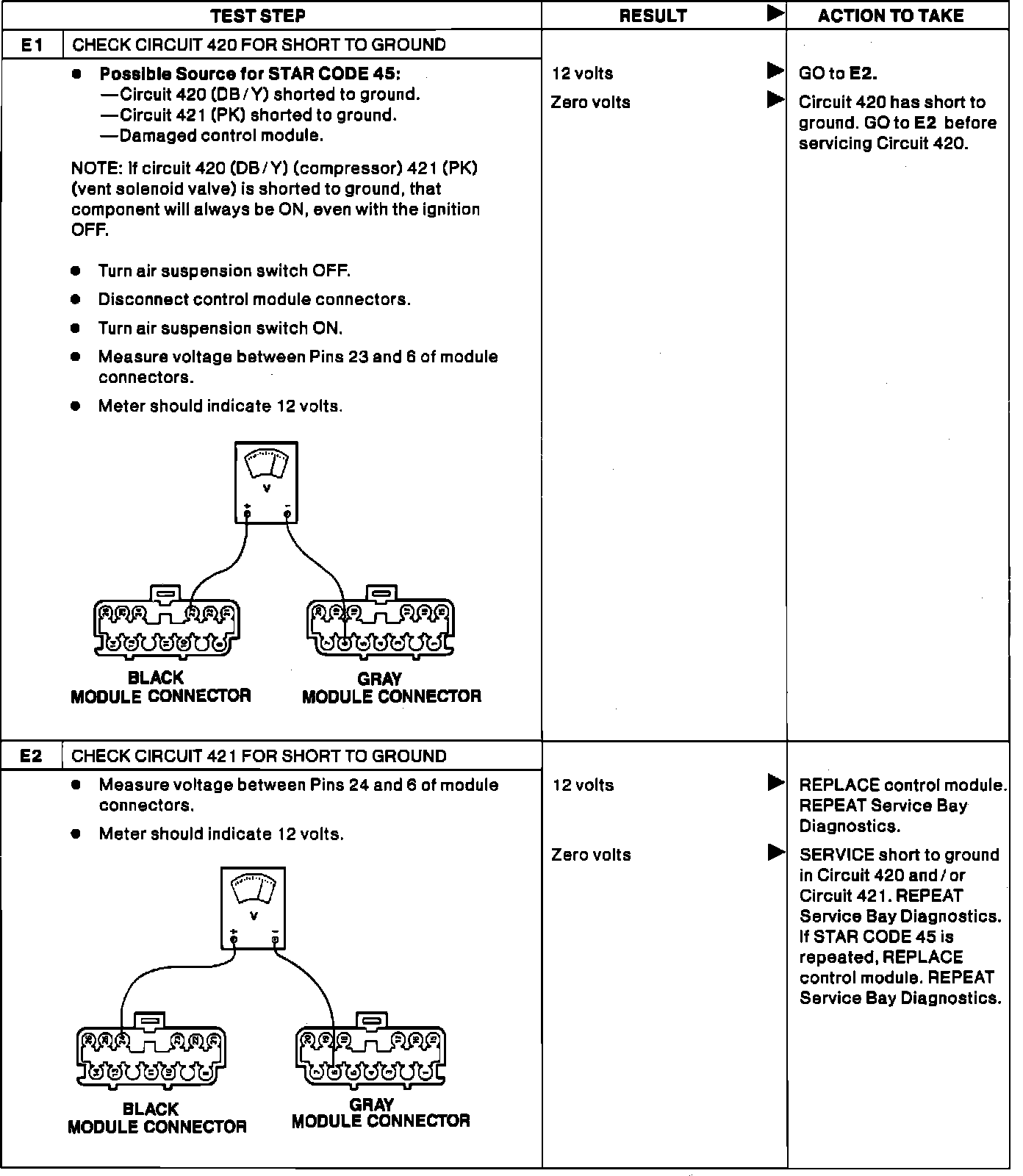

Test E1 - E2 Star Code 45: Compressor Relay Shorted Or Vent Solenoid Circuit Shorted To Ground:
