A Compressor Relay Shorted to Battery
A Compressor Relay Shorted to Battery

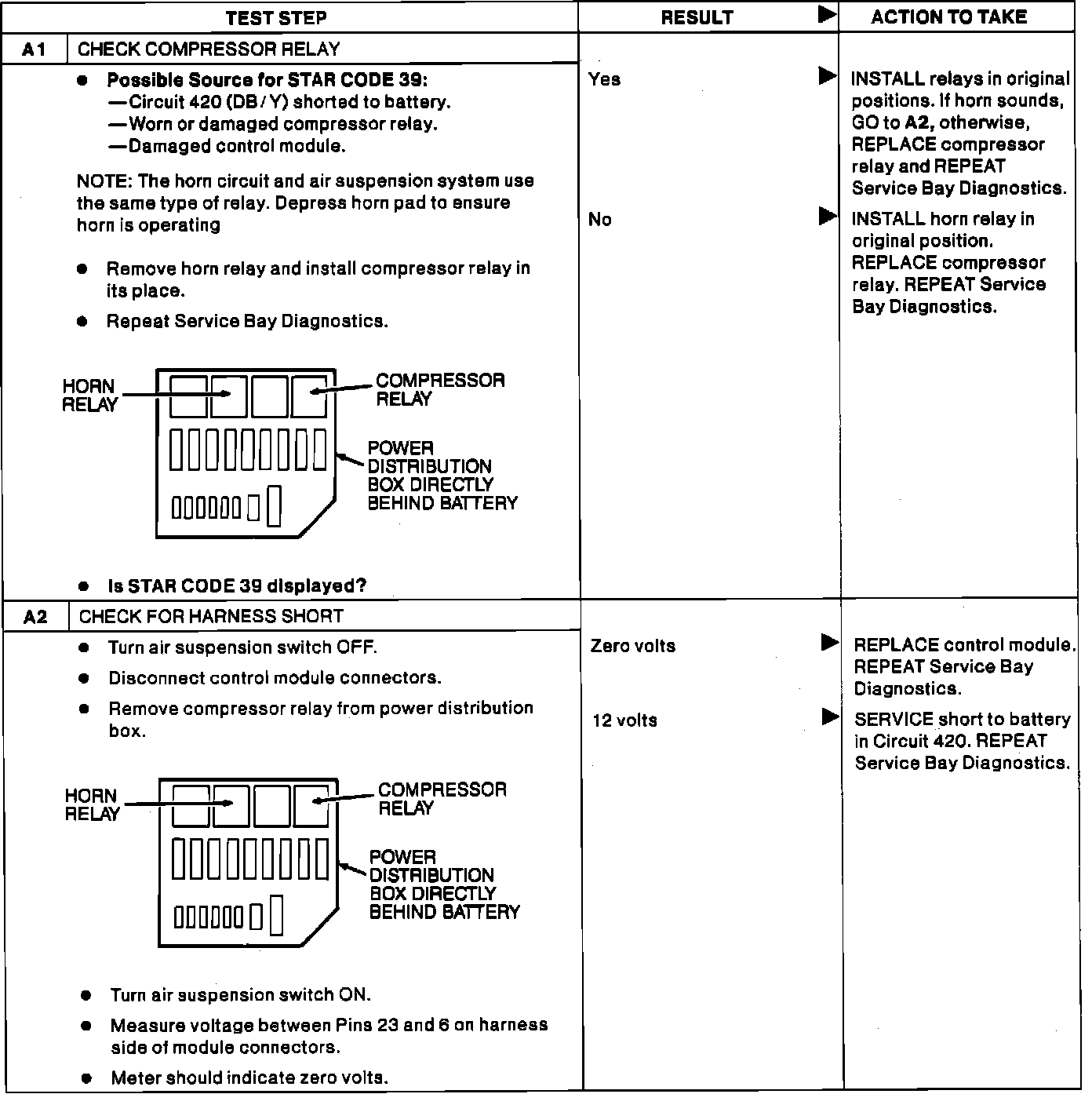

Test A1 - A2 Star Code 39: Compressor Relay Circuit Shorted To Battery:
