Diagnostic Trouble Code Descriptions

The STAR Tester 007-0004, the Super STAR II Tester 007-00041, or equivalents, are required to properly diagnose and test this system.

NOTE: Do not use Super STAR Tester 007-00019.

NOTE: Ford Does not provide a procedure to retieve diagnostic trouble codes without a Super Star II tester.

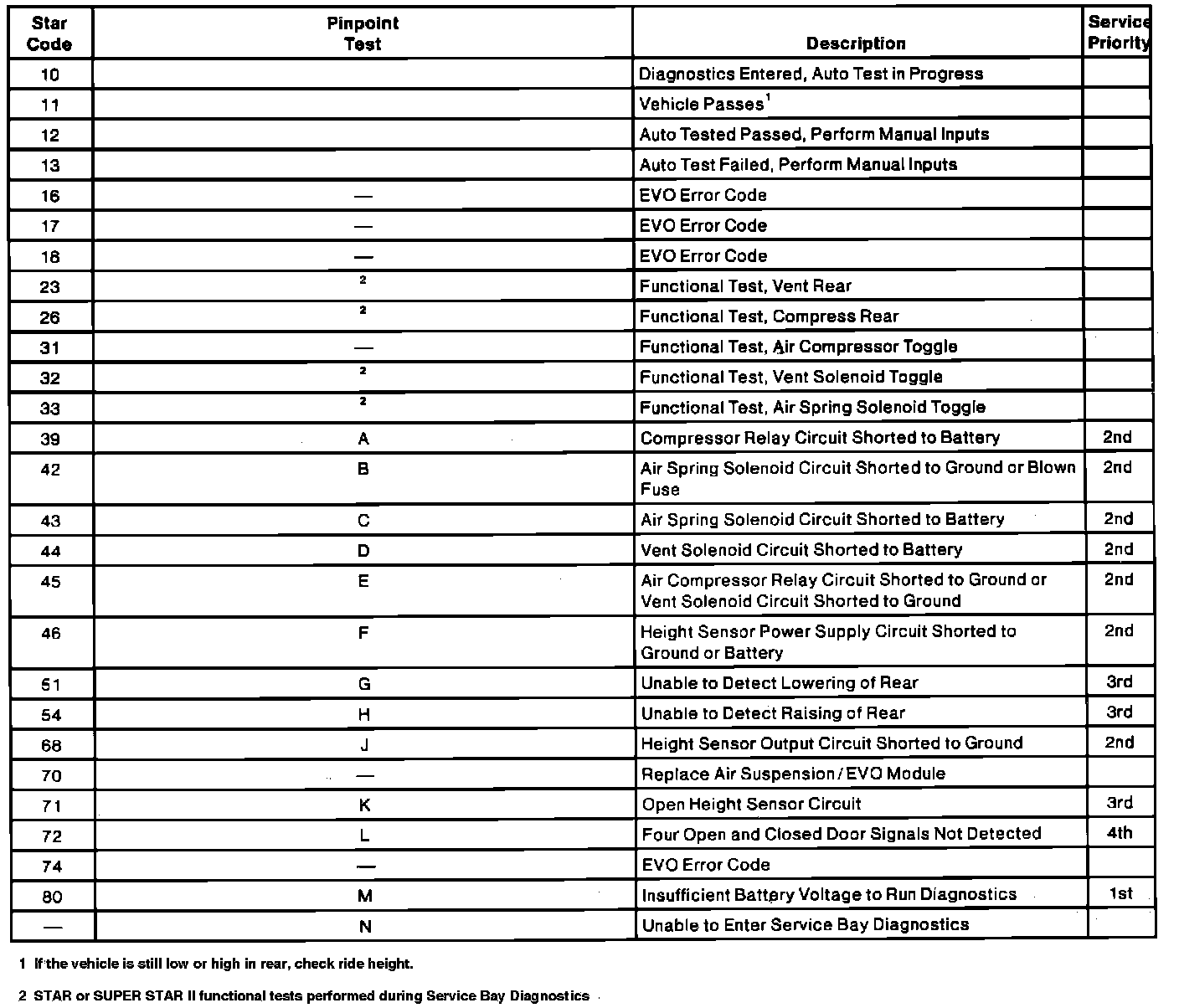

Air Suspension Star Codes:

Each fault code has its own pinpoint test. These tests have priorities assigned with ``1'' being the highest priority and ``4'' being the lowest. One fault code may cause other fault codes to be displayed. Perform pinpoint tests in order of priority starting with the highest. For Connector Terminal Identification, refer to Diagrams/Connector Views. For Pinpoint tests, Pinpoint Tests
