Starting System - Service Information Revision

Article No.
93-19B-7

09/29/93

^ ELECTRICAL/VACUUM TROUBLESHOOTING MANUAL - 1992 - PAGES 20-1A AND 151-2A (NEW PAGES) - STARTING SYSTEM SCHEMATIC AND COMPONENT LOCATION VIEWS FOR LATE PRODUCTION VEHICLES WITHOUT FENDER MOUNTED STARTER RELAY ADDED

^ SERVICE MANUAL - 1992 - SECTION 03-06B (NEW) - SERVICE INFORMATION FOR STARTING SYSTEM - AODE TRANSMISSION EQUIPPED VEHICLES ADDED

FORD:
1992 CROWN VICTORIA

LINCOLN-MERCURY:
1992 GRAND MARQUIS, TOWN CAR

ISSUE:
Starting System service information for AODE transmission equipped vehicles was omitted from the 1992 Town Car/Crown Victoria/Grand Marquis Service Manual; Section 03-06B is new. Also, Starting System electrical schematic and component location views for late production vehicles without fender mounted starter relay were omitted from the 1992 Crown Victoria/Grand Marquis EVTM; Pages 20-1A and 151-2A are new.

ACTION:
Refer to the pages in this TSB article for the additional information.

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 490000

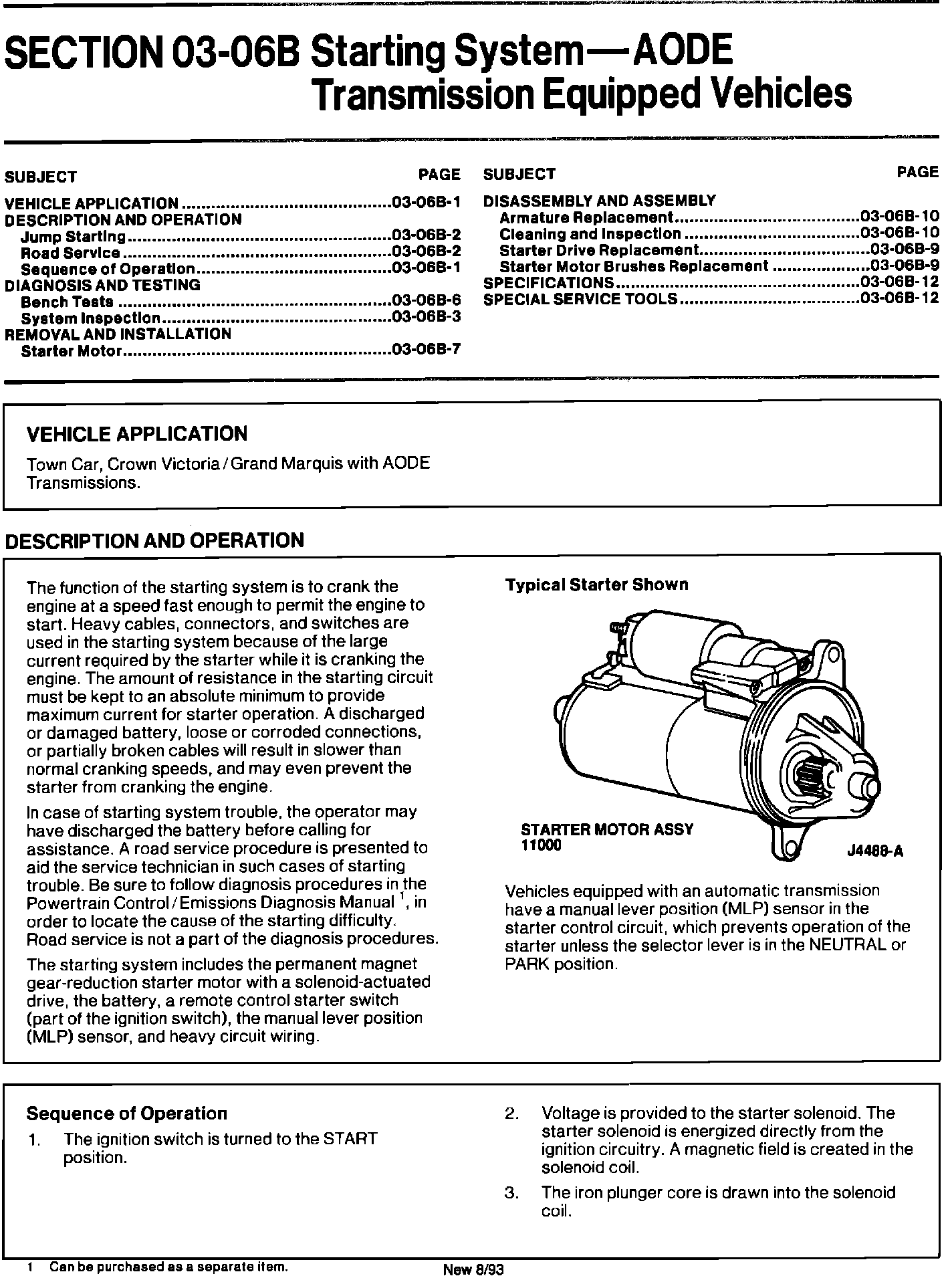

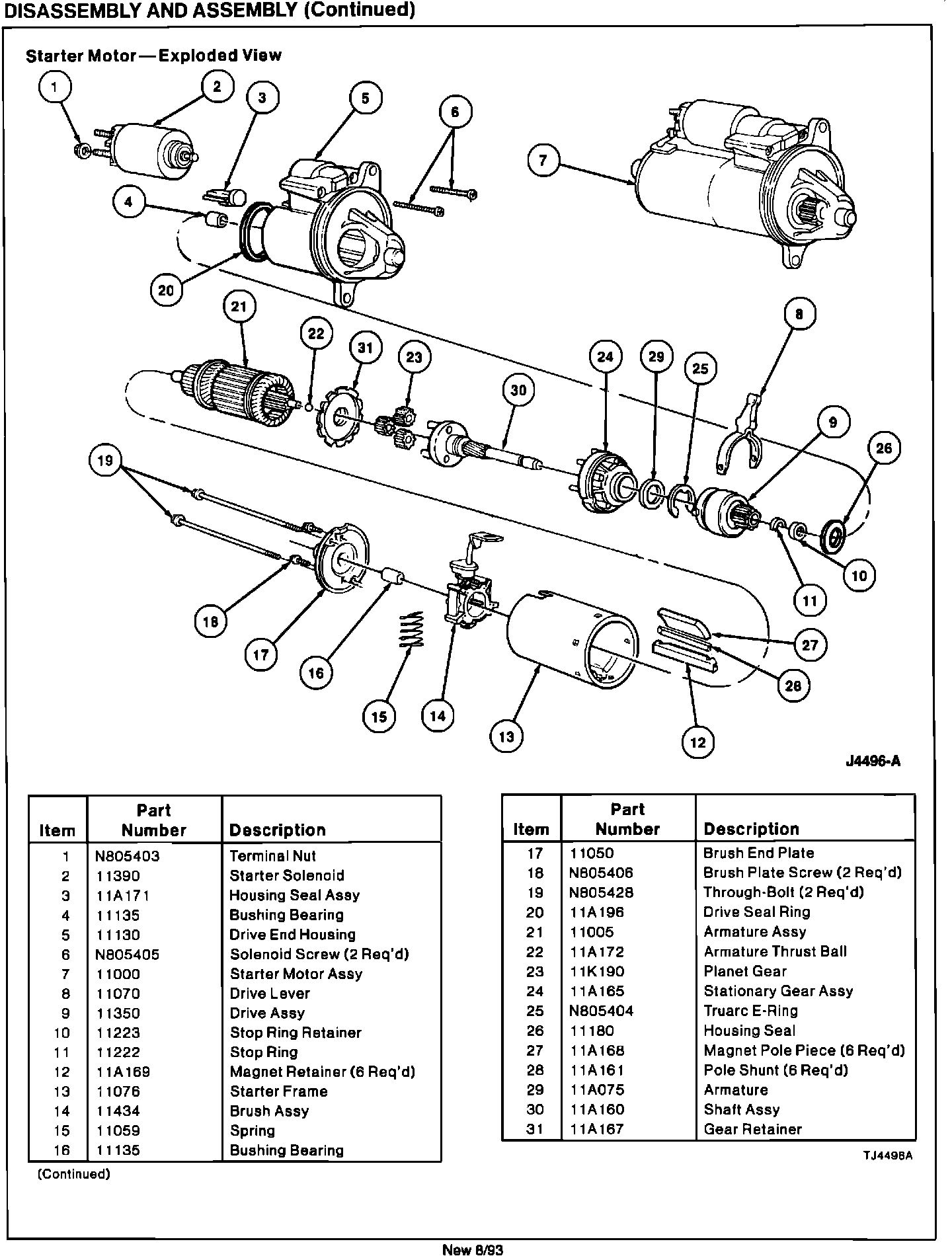

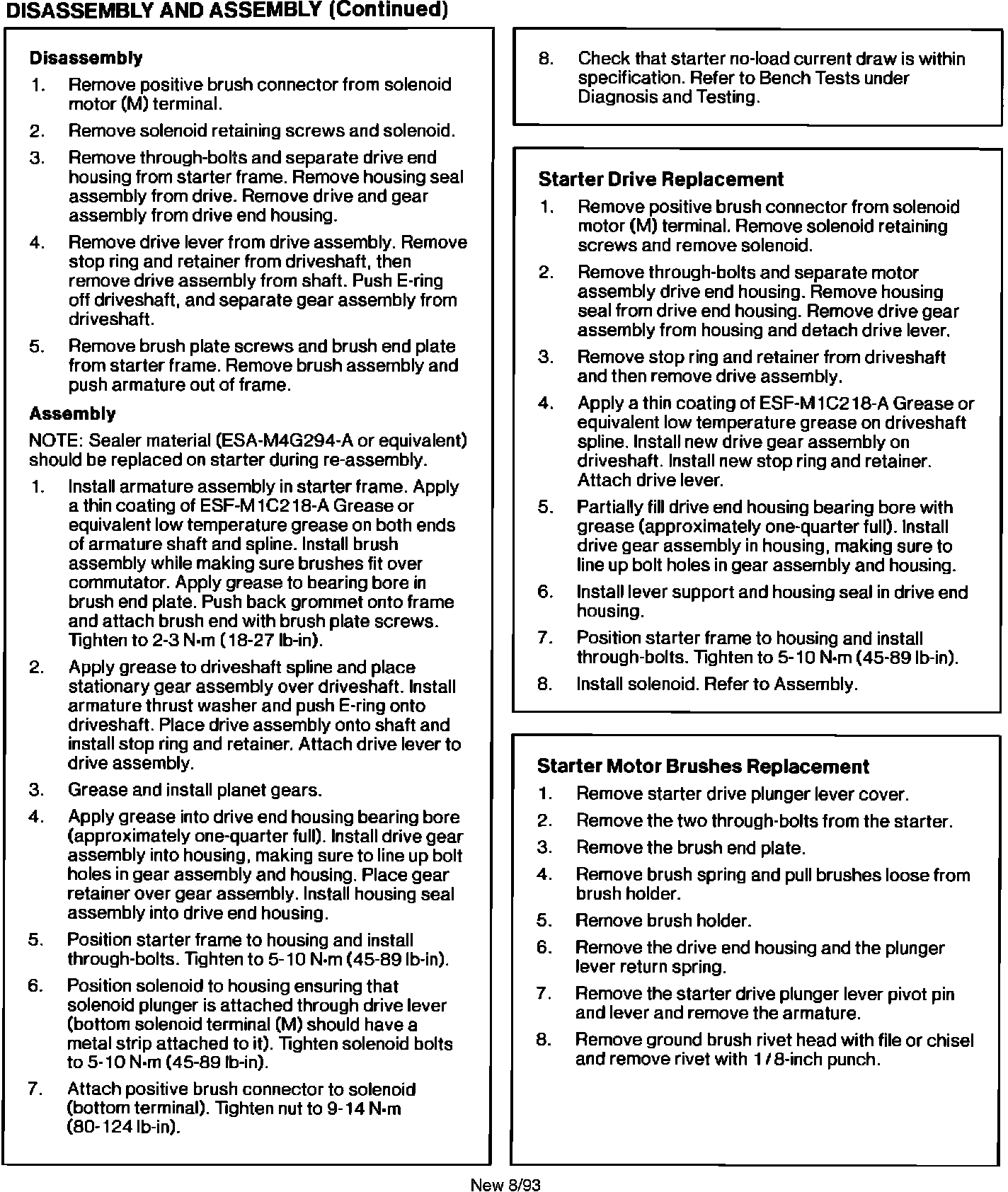

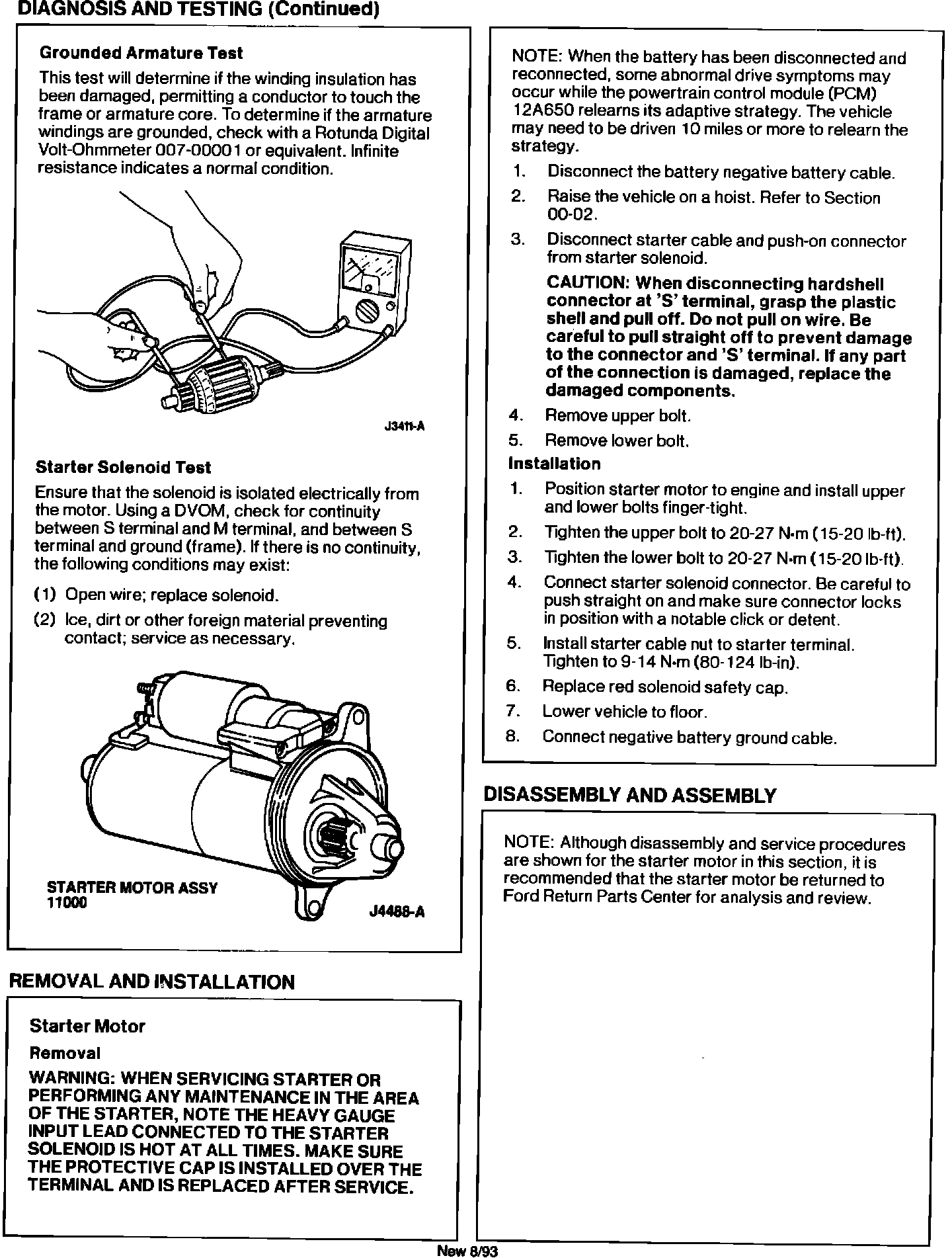

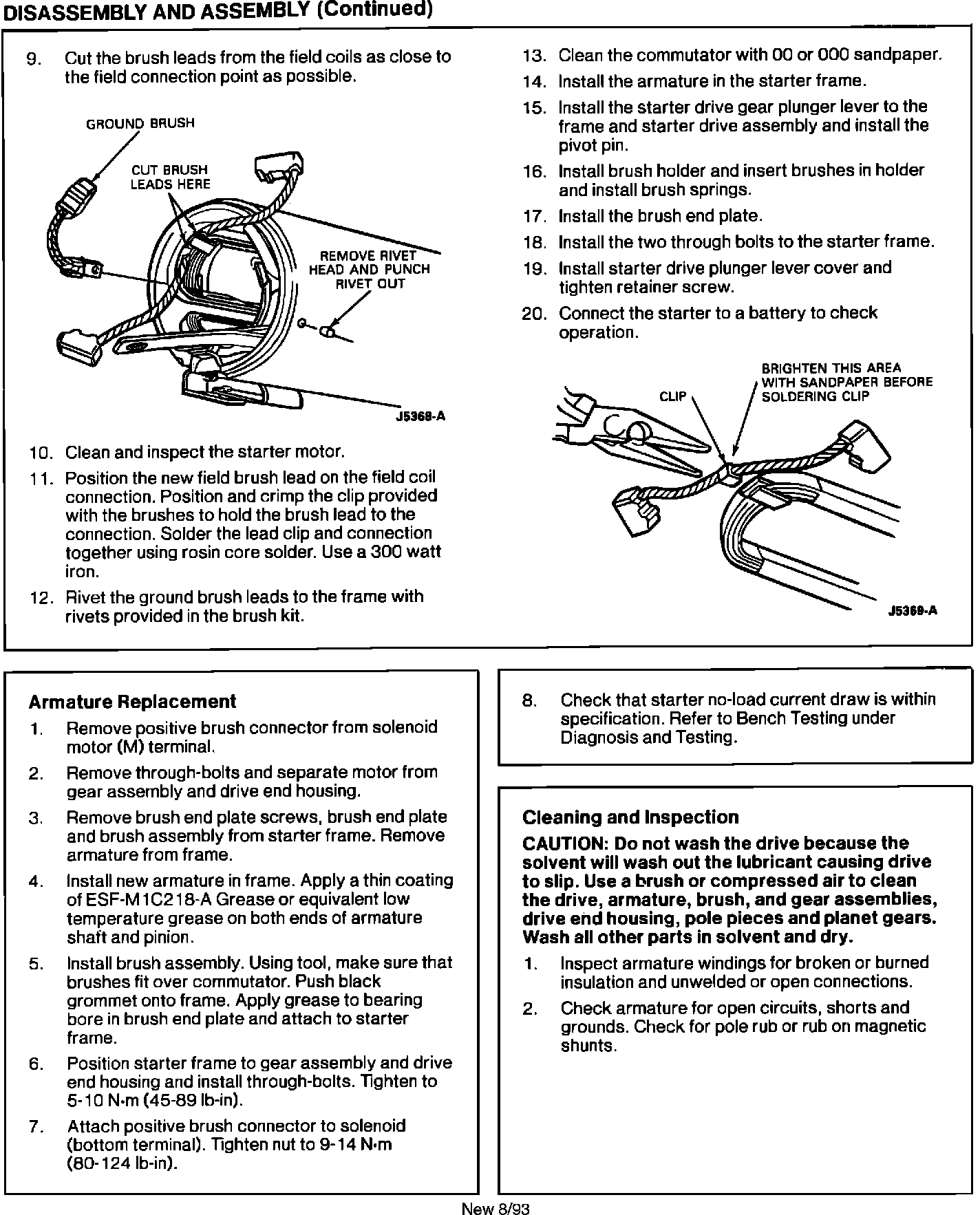

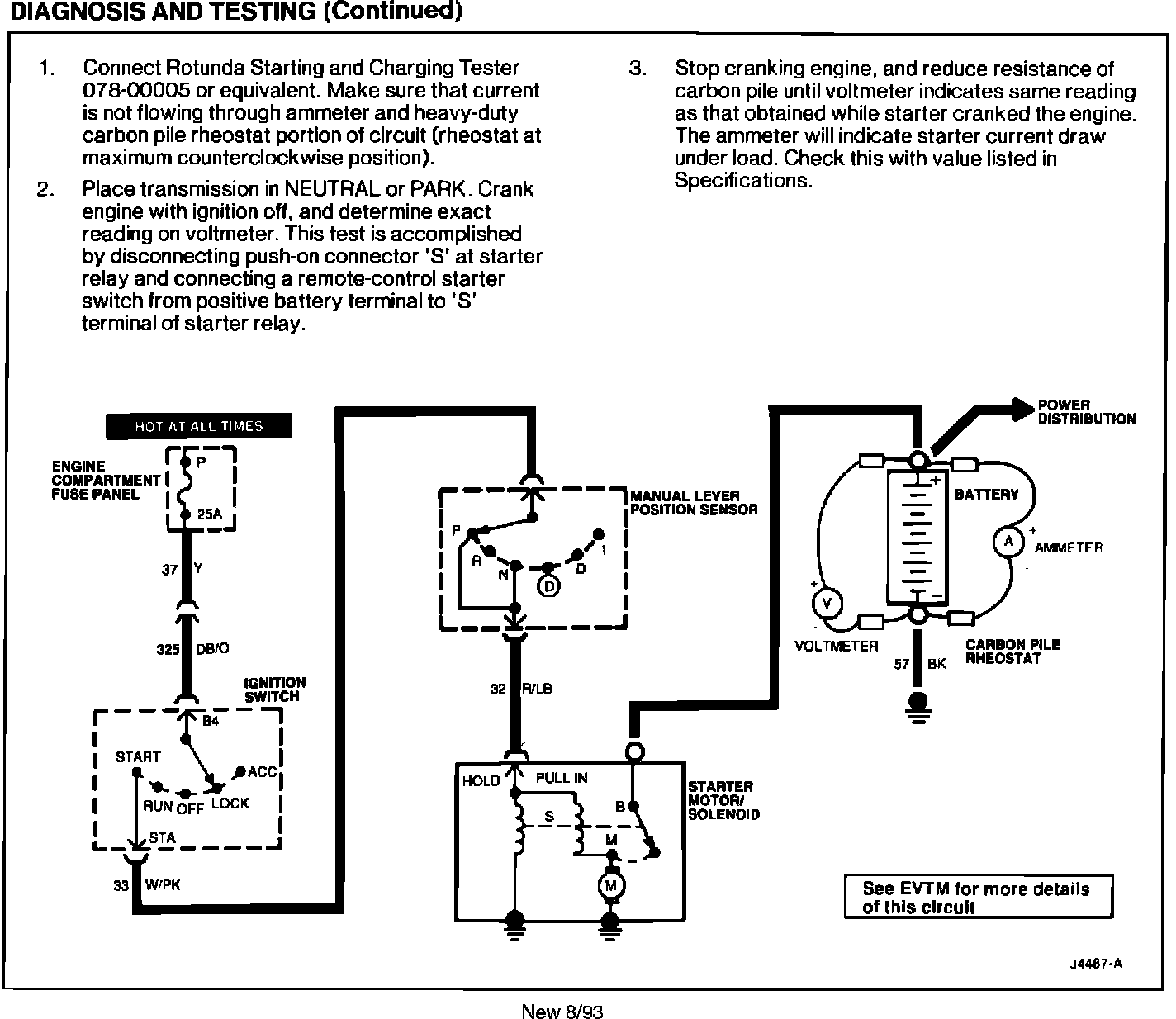

Page 03-06B-1

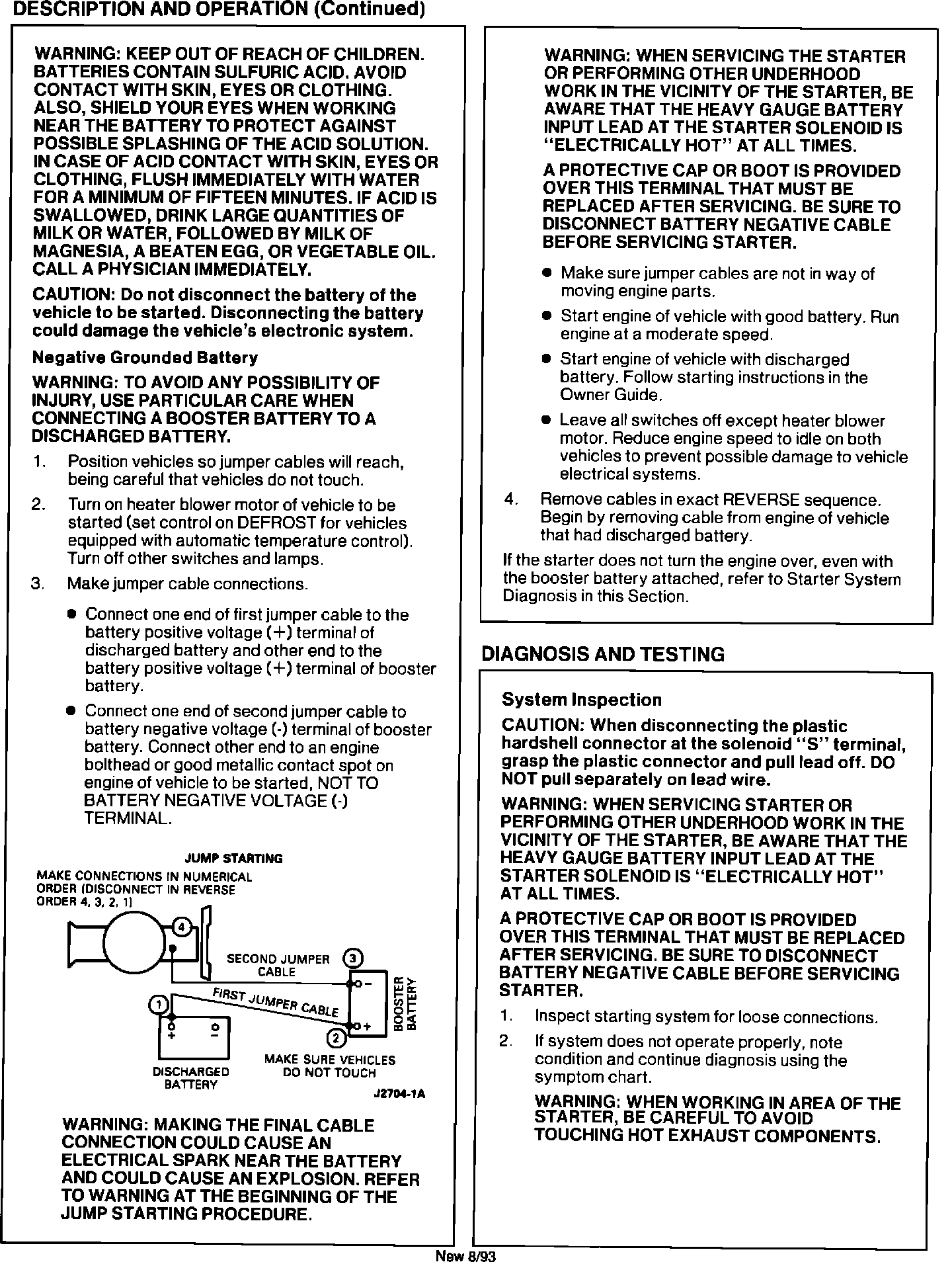

Page 03-06B-2

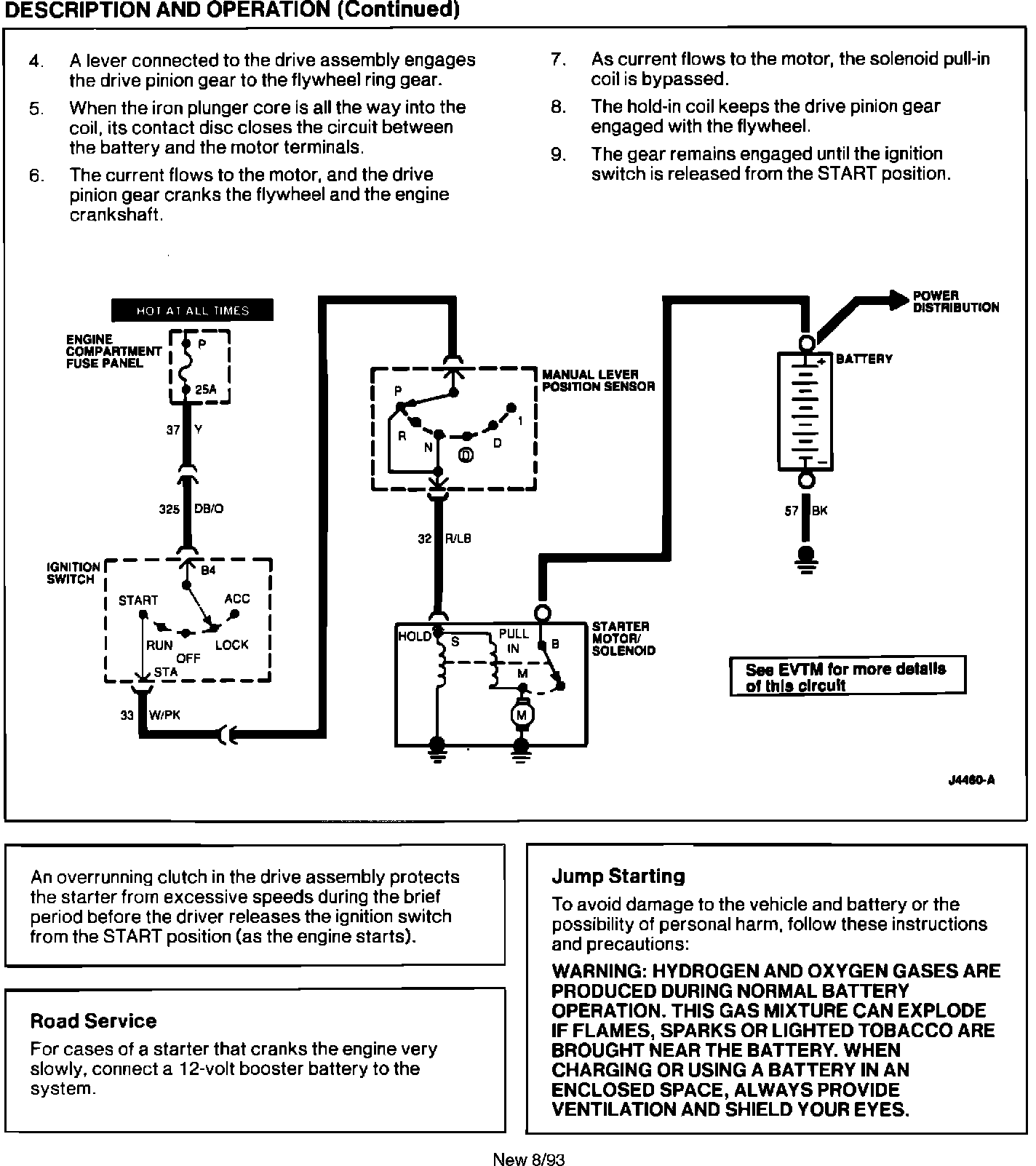

Page 03-06B-3





Page 03-06B-4

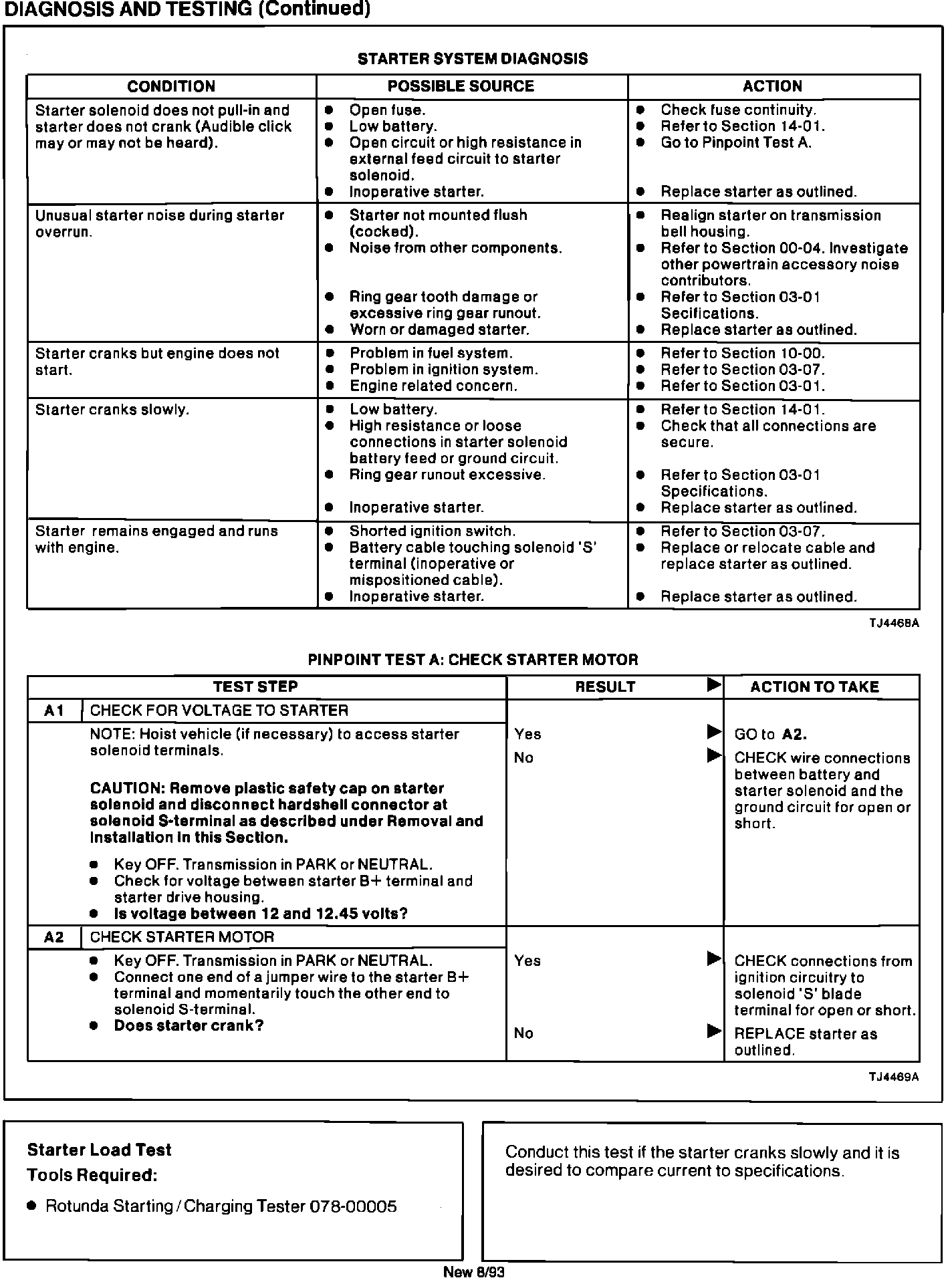

Page 03-06B-5

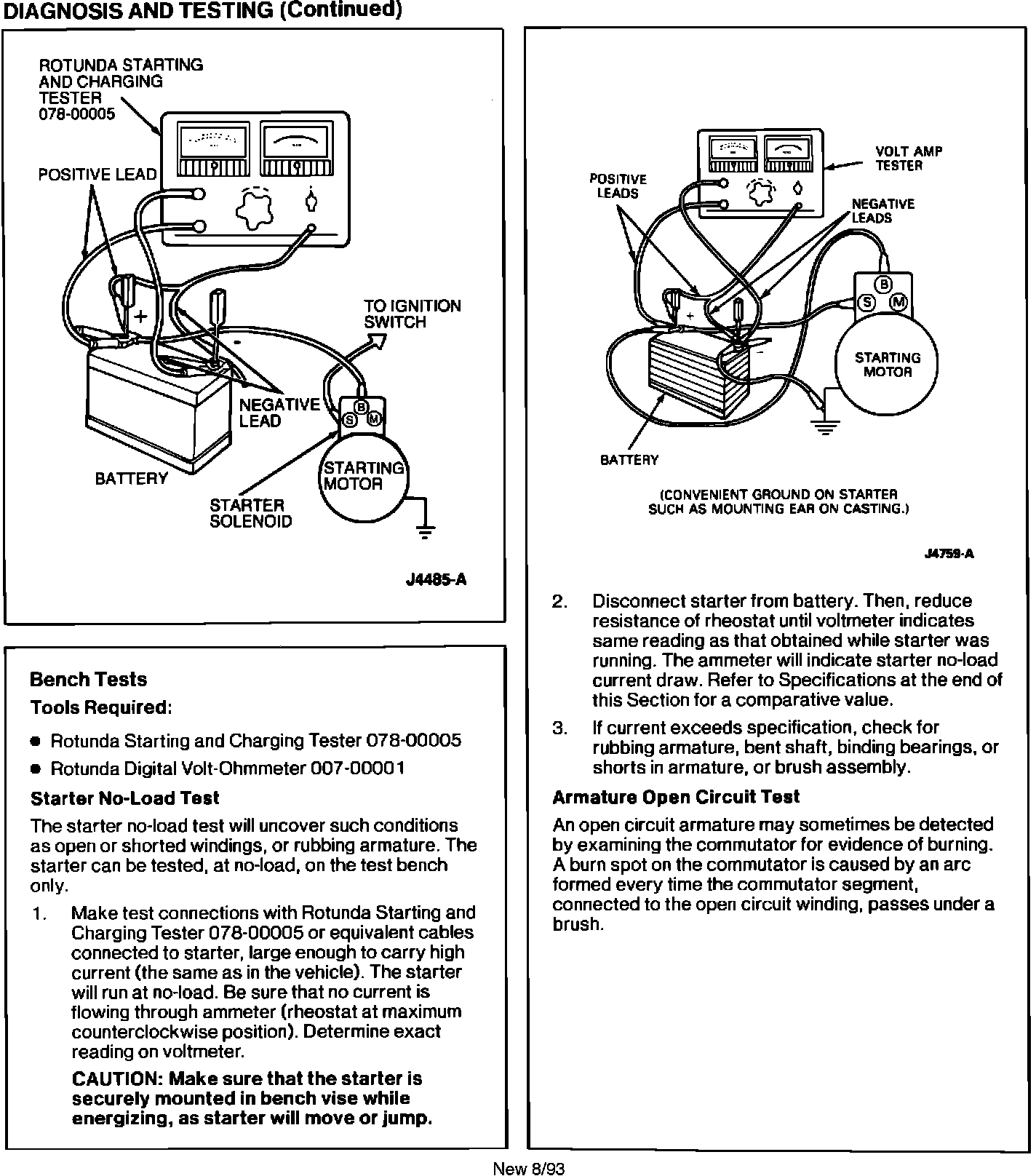

Page 03-06B-6





Page 03-06B-7





Page 03-06B-8





Page 03-06B-9

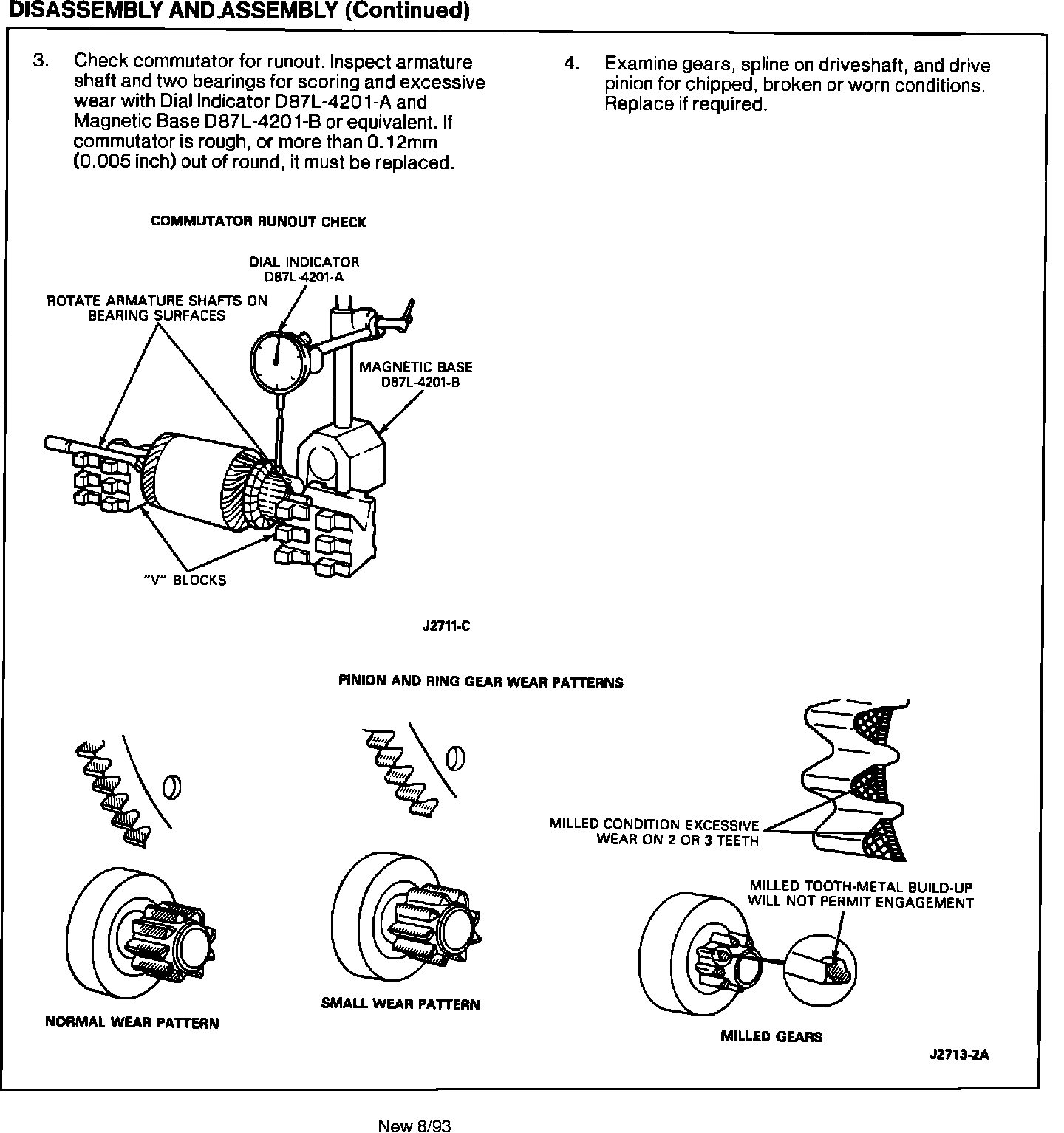

Page 03-06B-10





Page 03-06B-11

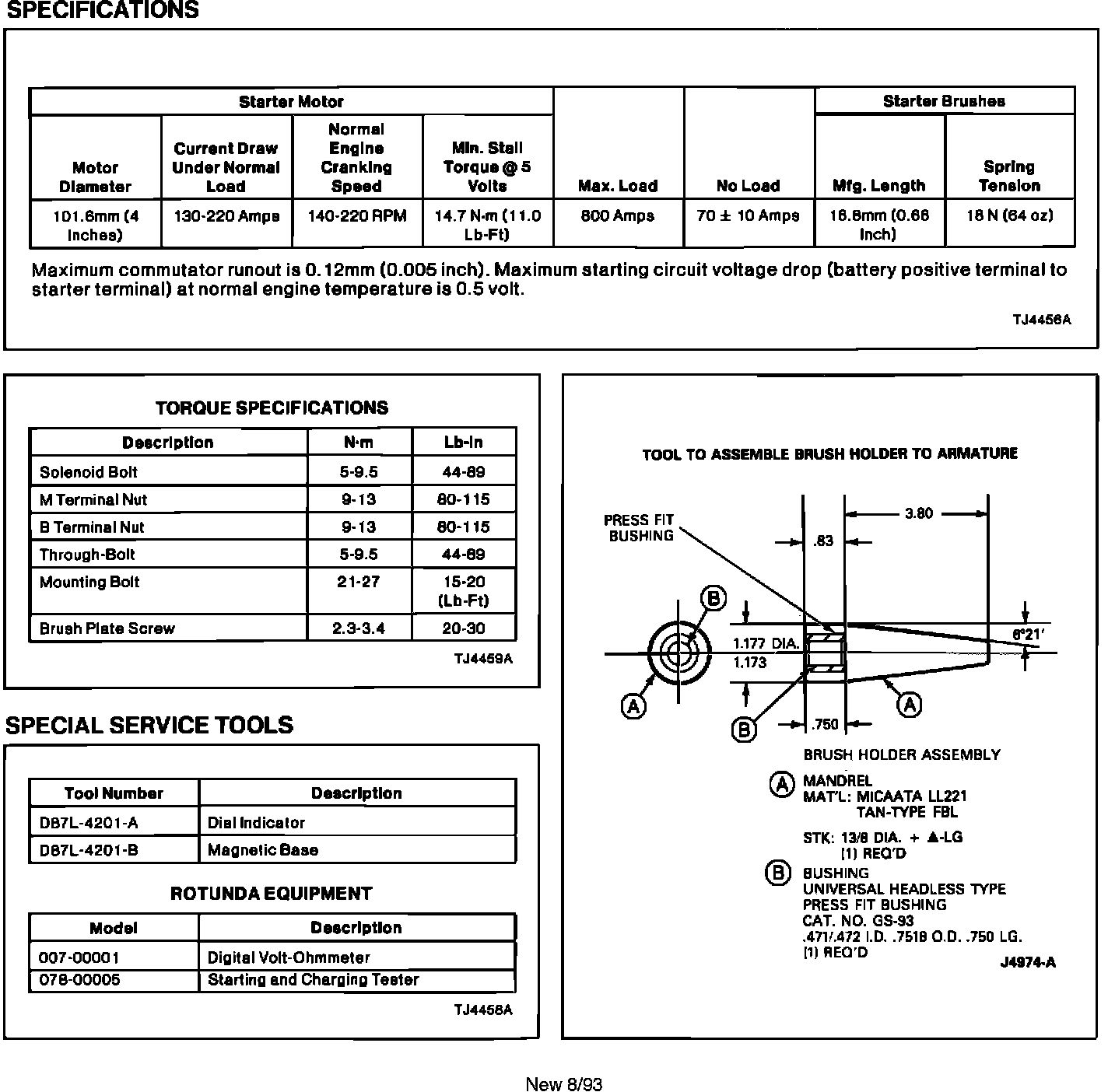

Page 03-06B-12

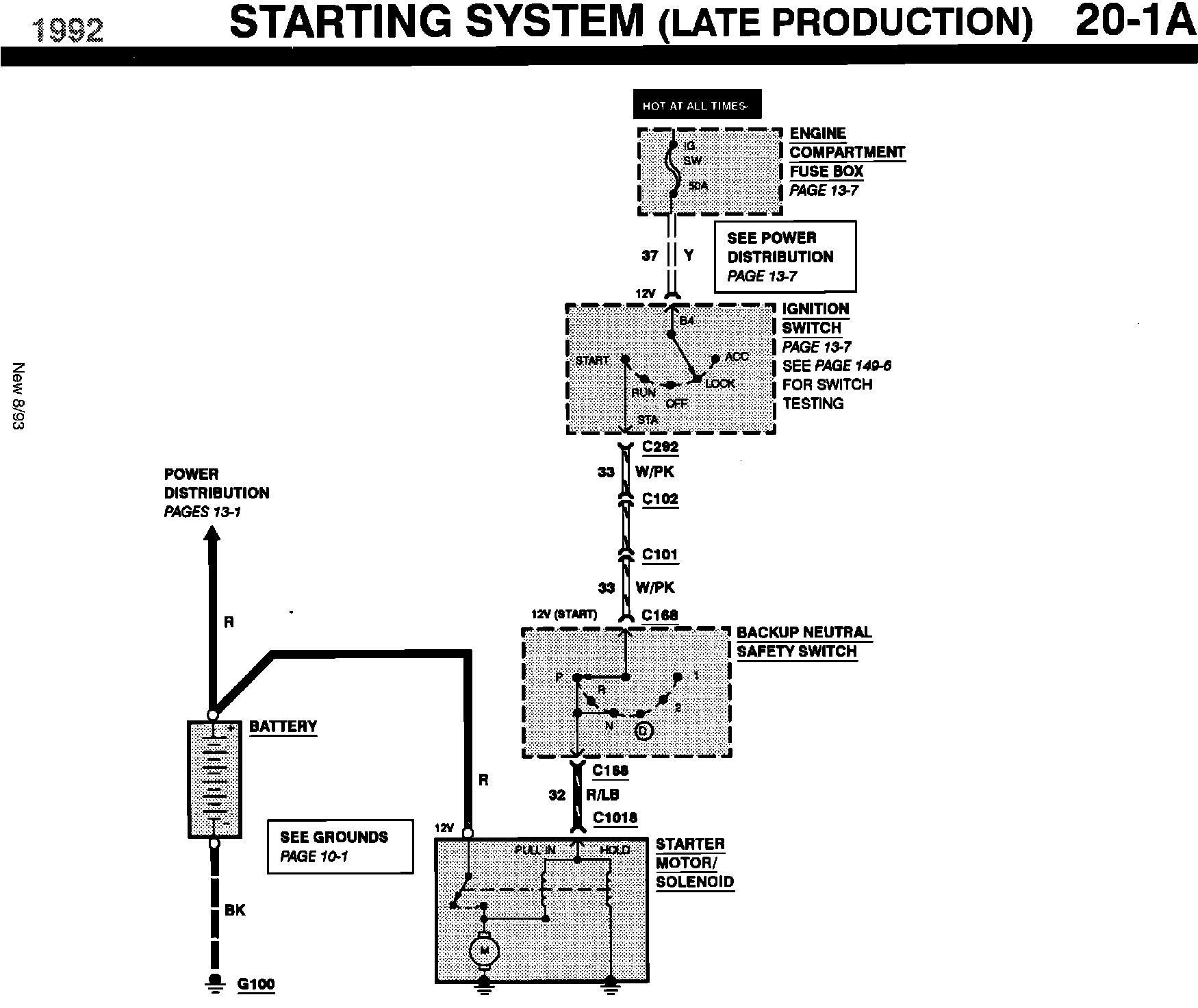

Page 20-1A

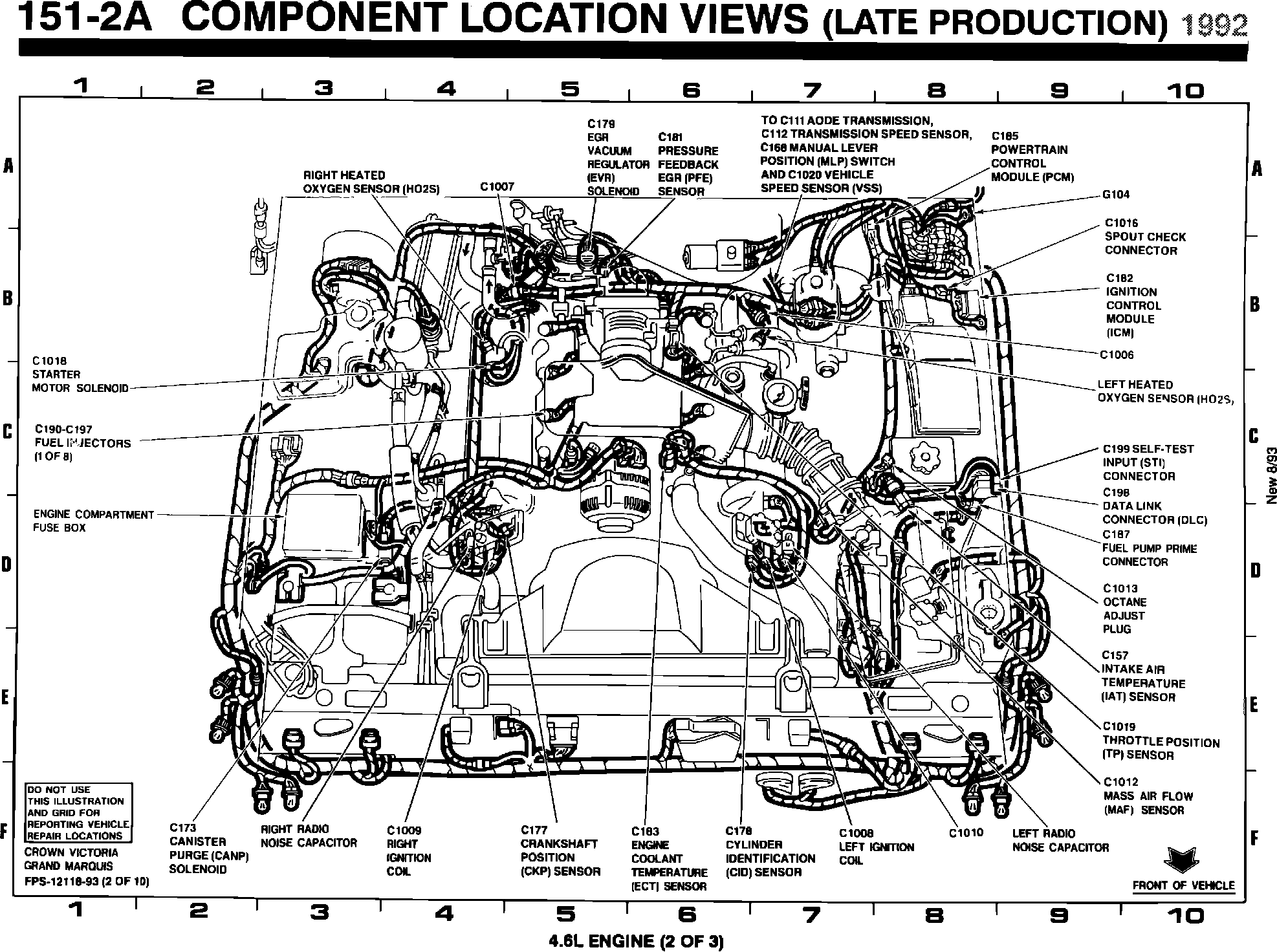

Page 151-2A
