Home >> Mercury >> 1992 >> Grand Marquis V8-281 4.6L SOHC >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Pinpoint Tests >> LL: Air Bag Indicator Flashes Fault Code 34

LL: Air Bag Indicator Flashes Fault Code 34

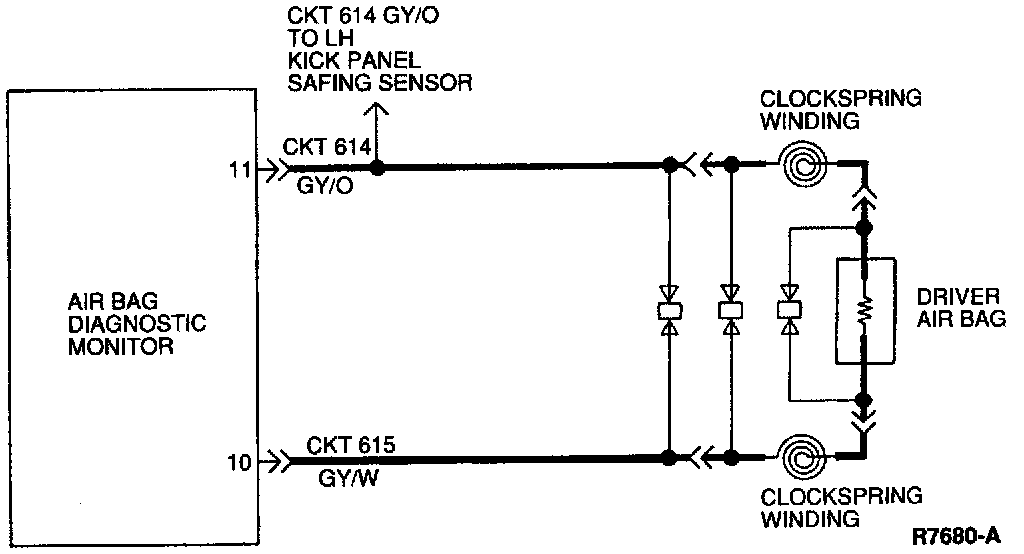

Schematic Used With Pinpoint Test LL:

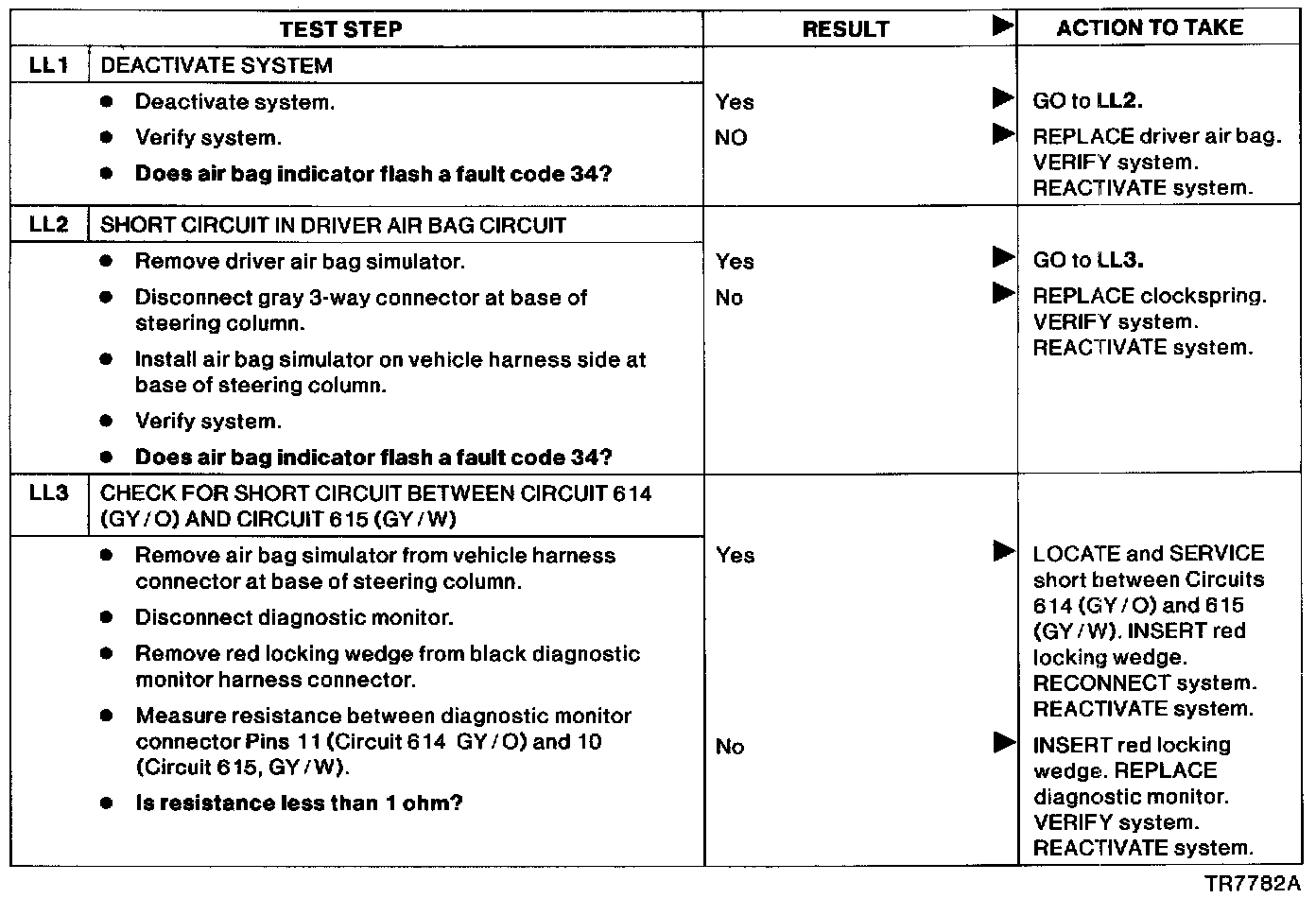

LL1 - LL3:
