Home >> Mercury >> 1992 >> Grand Marquis V8-281 4.6L SOHC >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Pinpoint Tests >> KK: Air Bag Indicator Flashes Fault Code 33

KK: Air Bag Indicator Flashes Fault Code 33

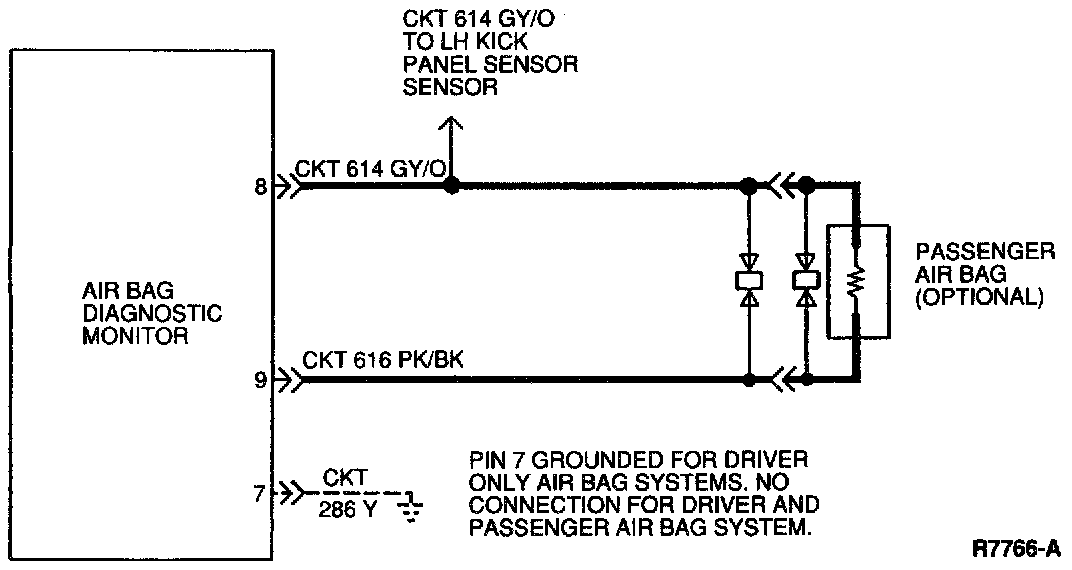

Schematic Used With Pinpoint Test KK:

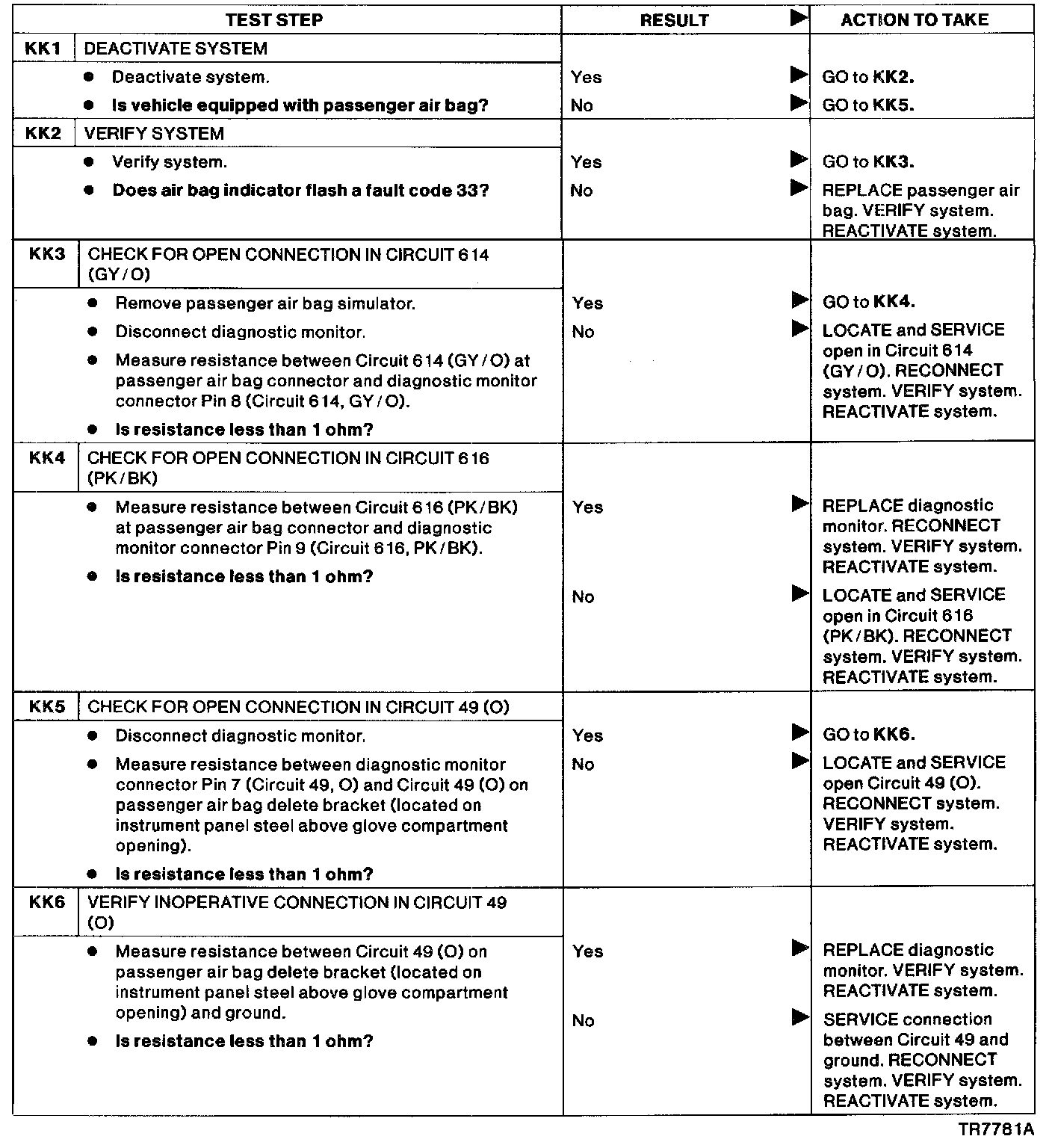

KK1 - KK6:
