Home >> Mercury >> 1992 >> Grand Marquis V8-281 4.6L SOHC >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Pinpoint Tests >> EE: Air Bag Indicator Flashes Fault Code 21

EE: Air Bag Indicator Flashes Fault Code 21

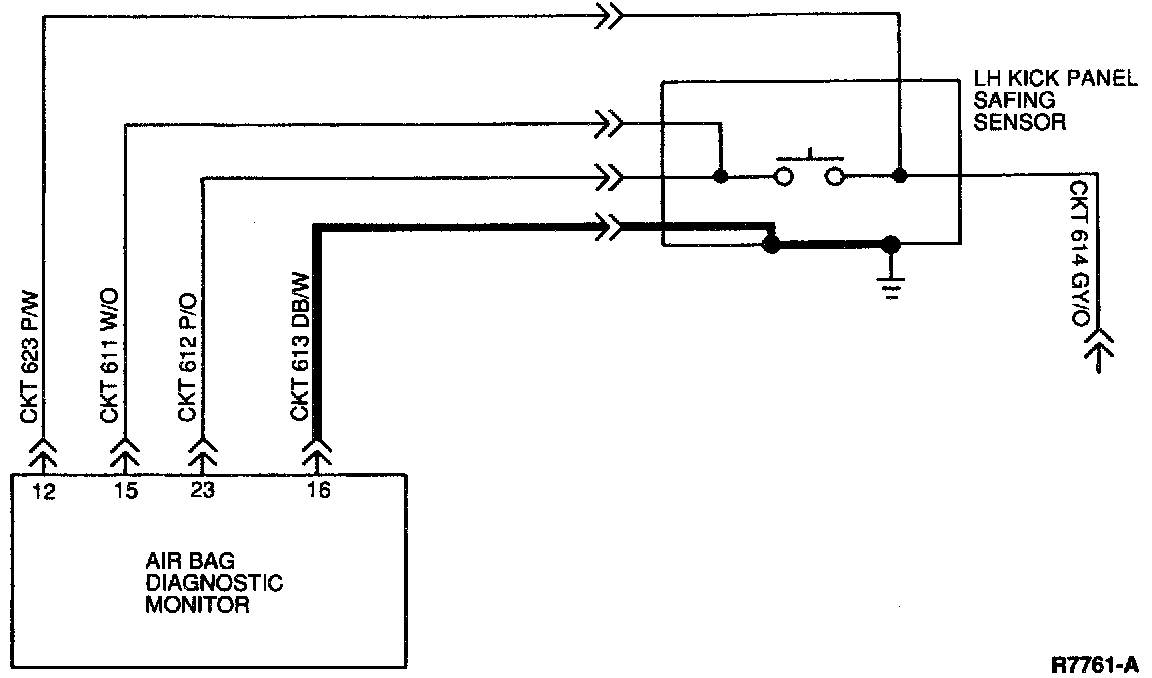

Schematic Used With Pinpoint Test EE:

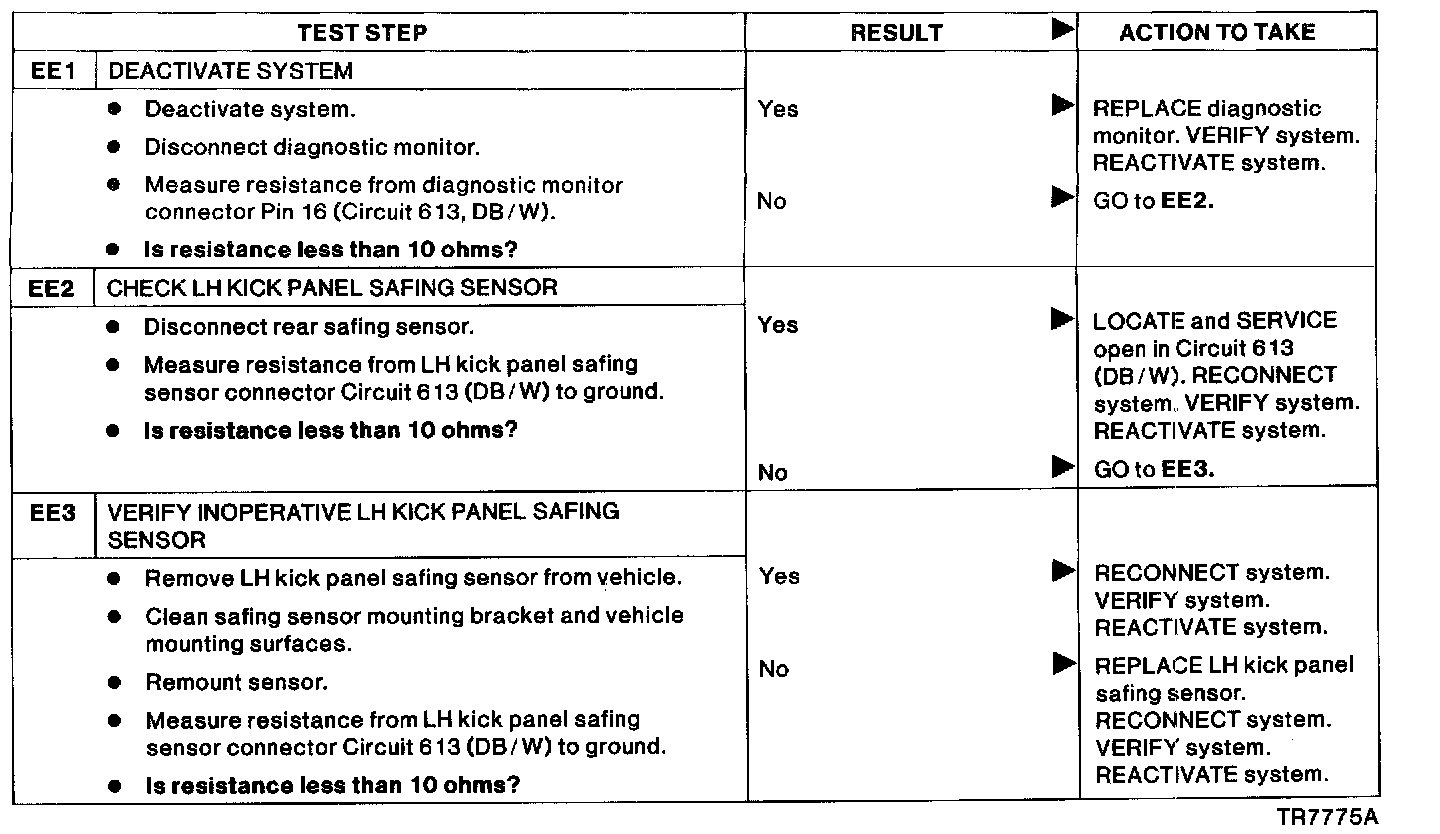

EE1 - EE3:
