CC: Air Bag Indicator Flashes Fault Code 12

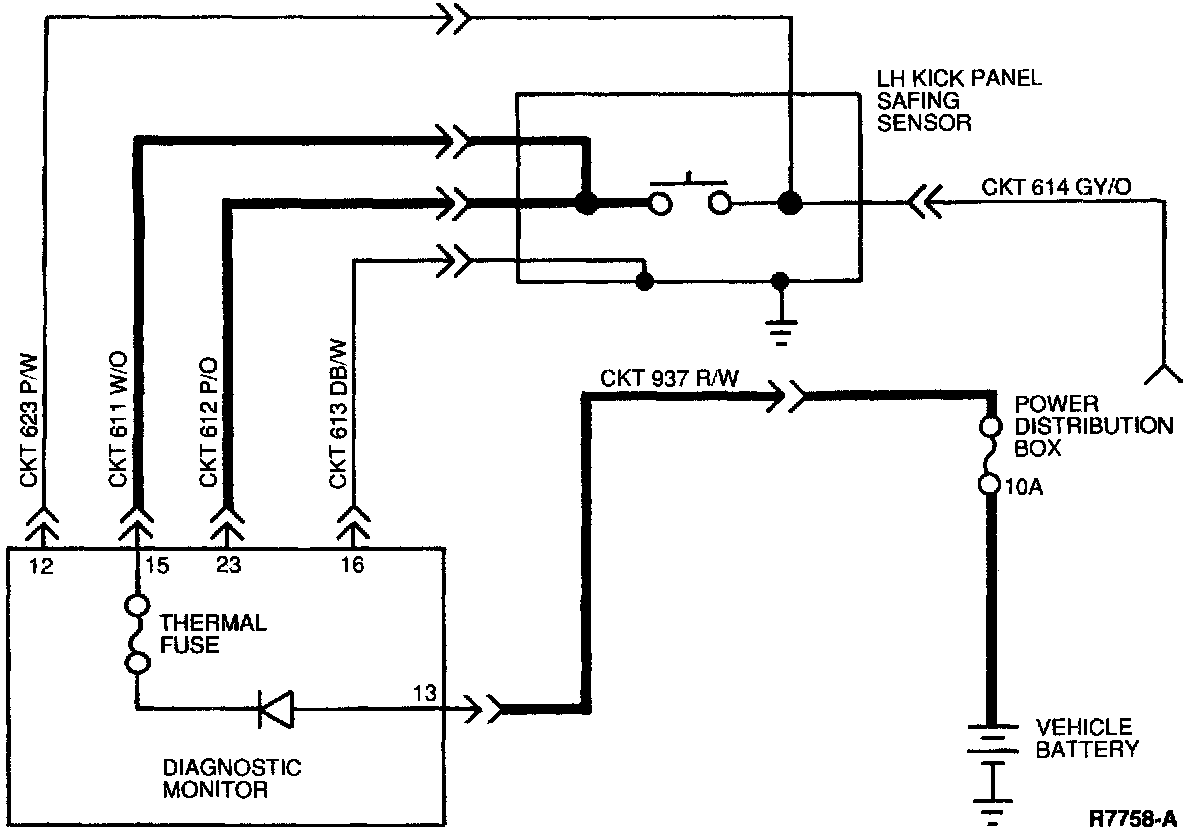

Schematic Used With Pinpoint Test CC:

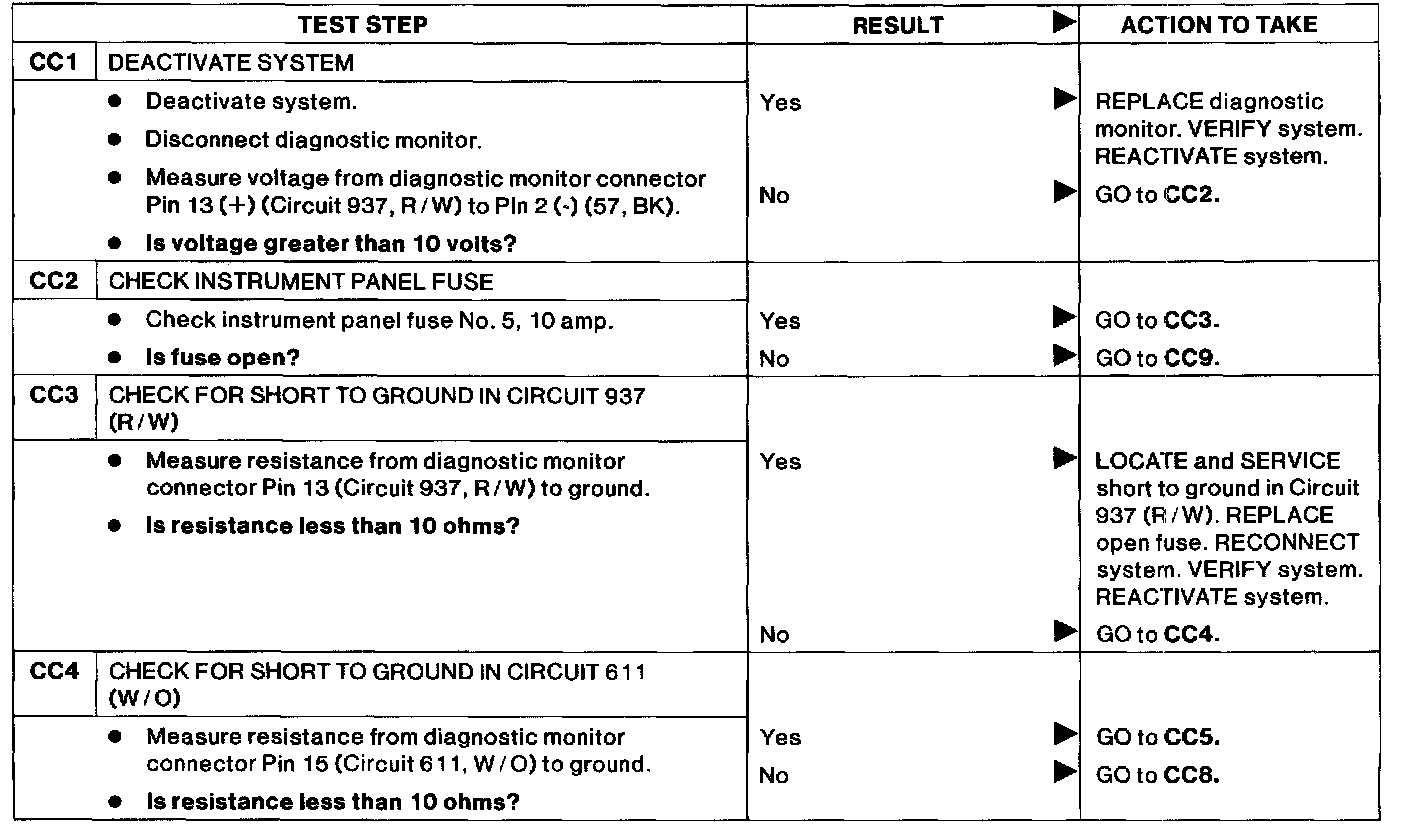

CC1 - CC4:

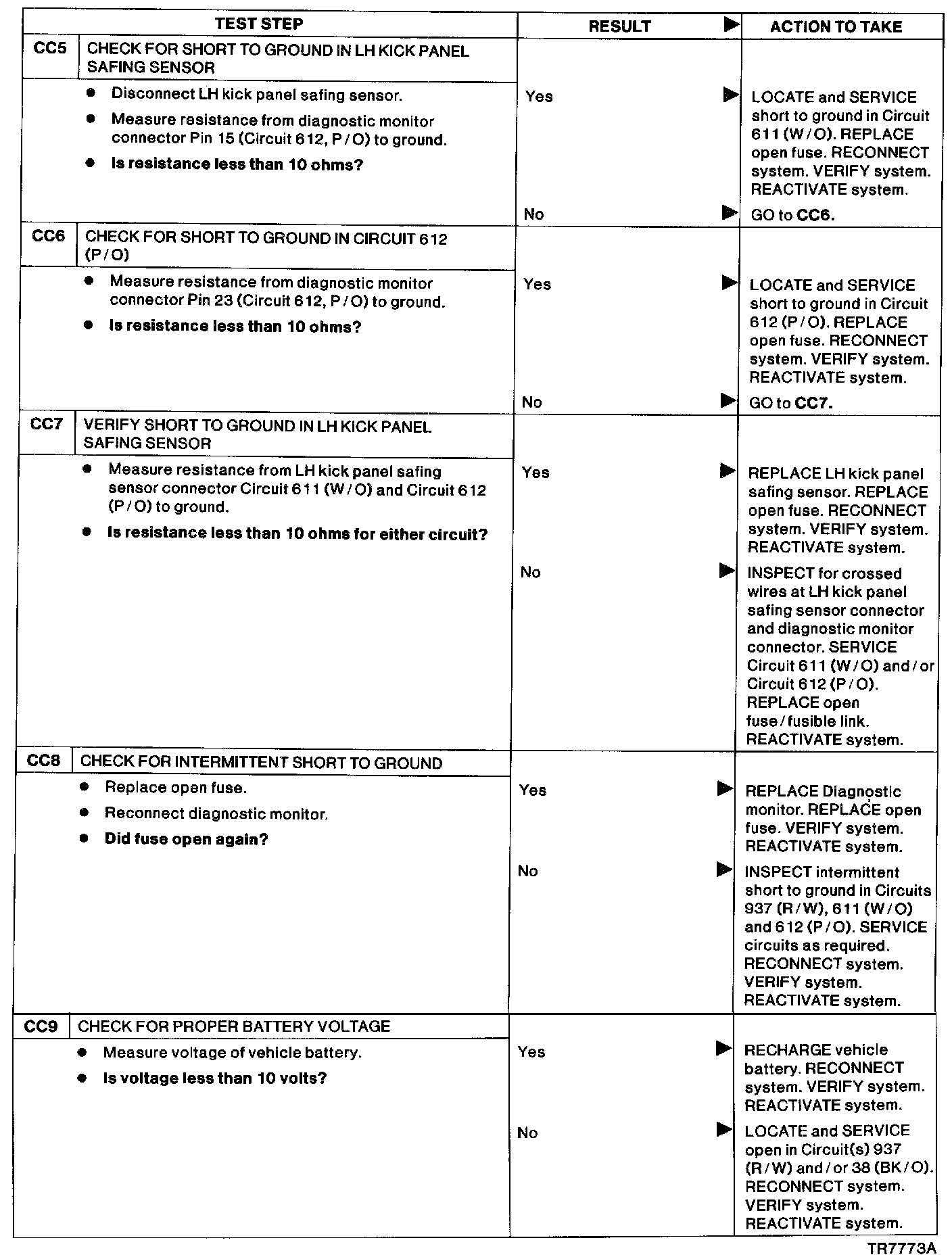

CC5 - CC9:
