Suspension Control Module: Service and Repair

Removal

WARNING: TURN AIR SUSPENSION SWITCH OFF.

1. Remove rear seat back.

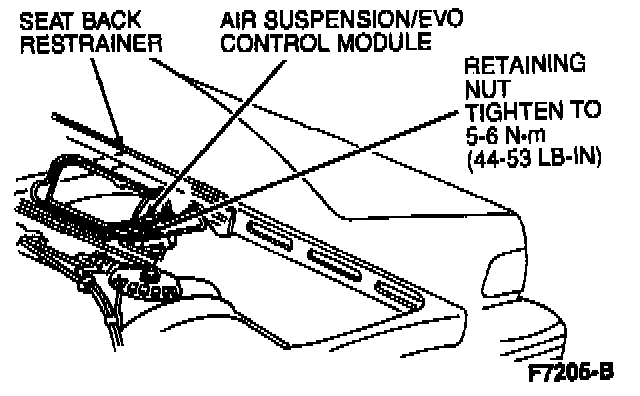

2. Remove two nuts retaining module to sheet metal on seat back restrainer.
3. Disconnect each connector by pushing connector release button and pulling connector from module.

Installation
1. Connect electrical connectors to module.
2. Position module on sheet metal.
Install and tighten retaining nuts to 5-6 Nm (45-53 inch lbs).

CAUTION: Do not attempt to strip retaining nuts from housing.

3. Install rear seat back.
4. Turn air suspension switch ON.
