A/T - AODE Noisy/Harsh/Extended Shifting
Article No.93-3-13
February 3, 1993
^ TRANSMISSION - AODE - "DRUMMING" OR "GROANING" NOISE - 2.73 AXLE EQUIPPED CROWN VICTORIA/GRAND MARQUIS VEHICLES BUILT AFTER 2/1/92
^ TRANSMISSION - AODE - 4-3 COAST TIP-IN BUMP OR JERK - CROWN VICTORIA/GRAND MARQUIS VEHICLES BUILT AFTER 2/1/92
^ TRANSMISSION - AODE - EXTENDED SHIFT DURING ACCELERATION - CROWN VICTORIA/GRAND MARQUIS VEHICLES BUILT AFTER 2/1/92
^ TRANSMISSION - AODE - OCCASIONAL FIRM 3-4 SHIFT - CROWN VICTORIA/GRAND MARQUIS VEHICLES BUILT AFTER 2/1/92
FORD: 1992 CROWN VICTORIA
LINCOLN-MERCURY: 1992 GRAND MARQUIS
CALIBRATION:
2-18F-R00, 2-18G-R00, 2-18H-R00, 2-181-R00, 2-18M-R00, 2-18N-R00
WARNING:
THIS MODIFICATION IS AUTHORIZED ONLY FOR THE LISTED ENGINE. PERFORMING THIS MODIFICATION ON OTHER ENGINE CALIBRATIONS IS UNAUTHORIZED AND COULD CREATE LIABILITY UNDER APPLICABLE FEDERAL OR LOCAL LAWS.
ISSUE:
The AODE Transmission may exhibit the following concerns:
^ 4-3 Coast Tip-in Bump - This concern occurs during 4-3 coasting down shifts. When the accelerator pedal is depressed, while coasting in 4th gear, a drive line "bump" or "jerk" may be felt.
^ Occasional Firm 3-4 Shift - This condition is caused by the torque converter clutch engaging prior to the 3-4 shift being completed.
^ Extended Shift - This occurs during acceleration when the accelerator is suddenly released. Normal torque converter clutch disengagement may be observed as an increase in engine speed.
^ Transmission "Drumming" or "Groaning" Noise - This condition occurs on vehicles equipped with 2.73 axles when the vehicle is in overdrive and operating in 4th gear between 34-42 MPH (55-68 KmH).
The above concerns may be caused by the operating strategy of the powertrain control module.
ACTION:

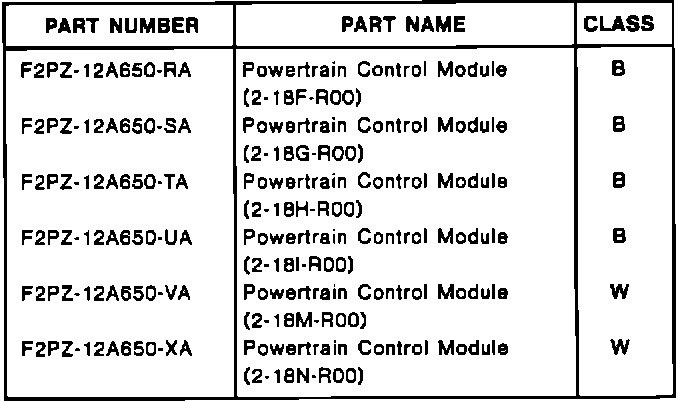

Replace the existing powertrain control module with a a new module which has a revised shift and converter clutch operating strategy. Refer to the 1992 Lincoln Town Car, Crown Victoria/Grand Marquis Service Manual, Section 07-01A, for service details.
Obtain an Authorized Modifications Decal and list the date, dealer number, and summary of alterations performed. Select a prominent place adjacent to the Vehicle Emission Control Information Decal suitable for installing the Authorized Modifications Decal. Clean the area, install the decal, and cover it with a clear plastic decal shield.
OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS:
Eligible Under Bumper To Bumper Warranty Coverage
OPERATION DESCRIPTION TIME
930313A Road Test And Replace 0.6 Hr.
Powertrain Control Module
DEALER CODING
BASIC PART NO. CONDITION CODE
12A650 08
OASIS CODES:
501000, 502000, 504000, 597997, 702000
