Home >> Mercury >> 1992 >> Grand Marquis V8-281 4.6L SOHC >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Lighting and Horns >> Daytime Running Lamp Control Unit >> Locations >> Connector Locations >> Daytime Running Lamps (DRL) Module

Daytime Running Lamps (DRL) Module

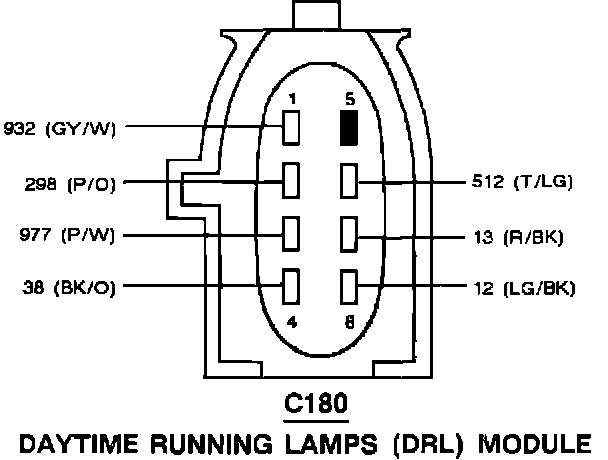

Connector Faces/Pinout Charts:
