Pinpoint Test D: No Medium Or Low Blower Speeds

III Symptom - No Medium Or Low Blower Speed (cont.):

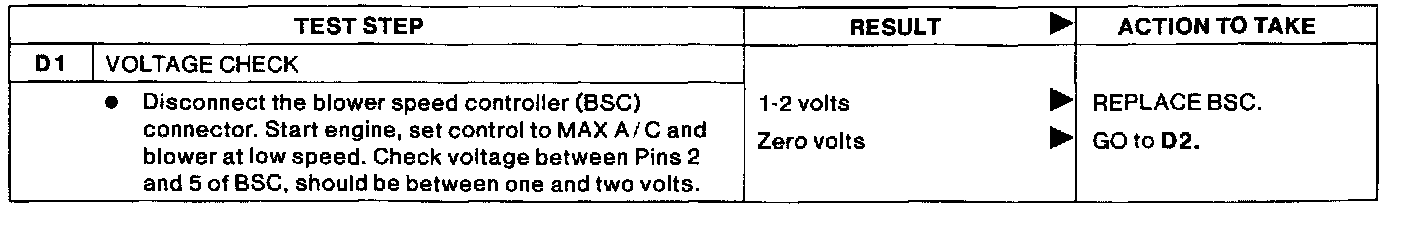

III Symptom - No Medium Or Low Blower Speeds:






Test Condition:

Start engine, set control to MAX A/C, set blower switch to MED or LOW. If there is no blower operation:
