Pinpoint Test C: High Blower Always on In All Switch Positions

II Symptom - High Blower Always On In All Switch Positions:

Electrical

Refer to the Electrical Vacuum Troubleshooting manual for a complete schematic and wire colors.

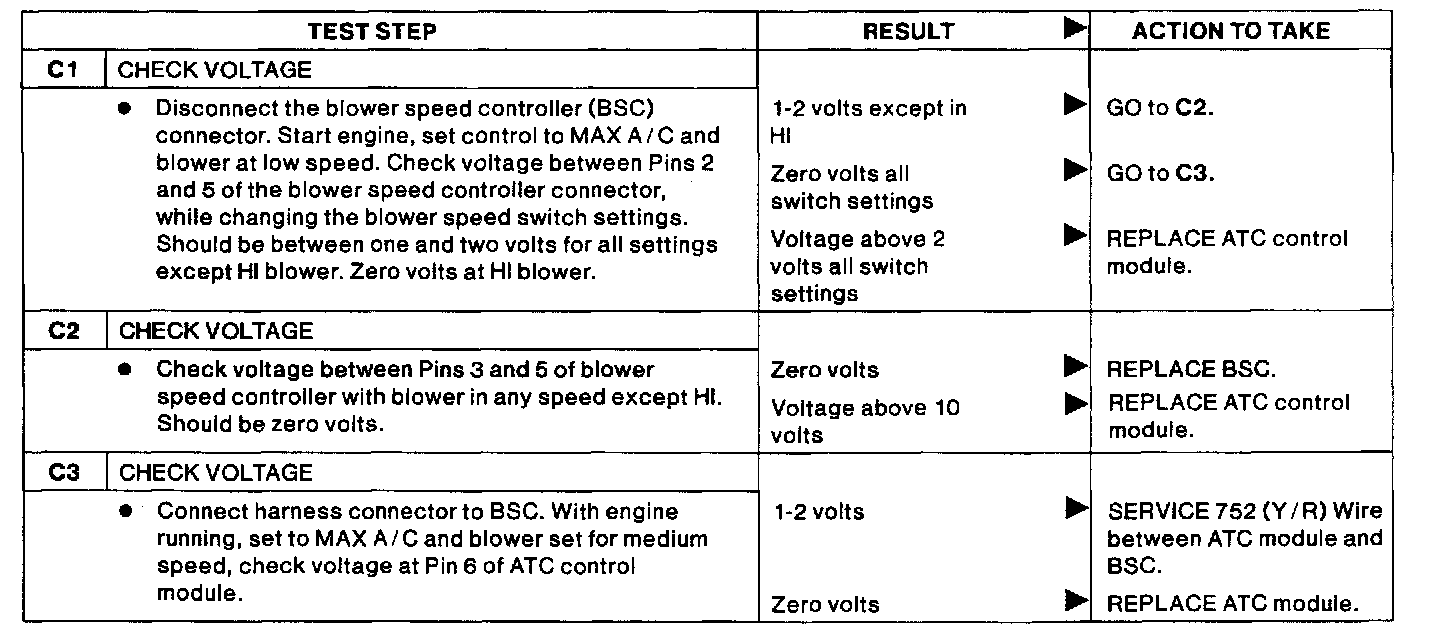

Test Condition

Start engine, set control to MAX A/C, set blower switch to MED. If blower remains in high speeds:
