Home >> Mercury >> 1992 >> Grand Marquis V8-281 4.6L SOHC >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests >> A - No Start >> A17 - Check PWR GND to EDIS Module - PWR GND Fault

A17 - Check PWR GND to EDIS Module - PWR GND Fault

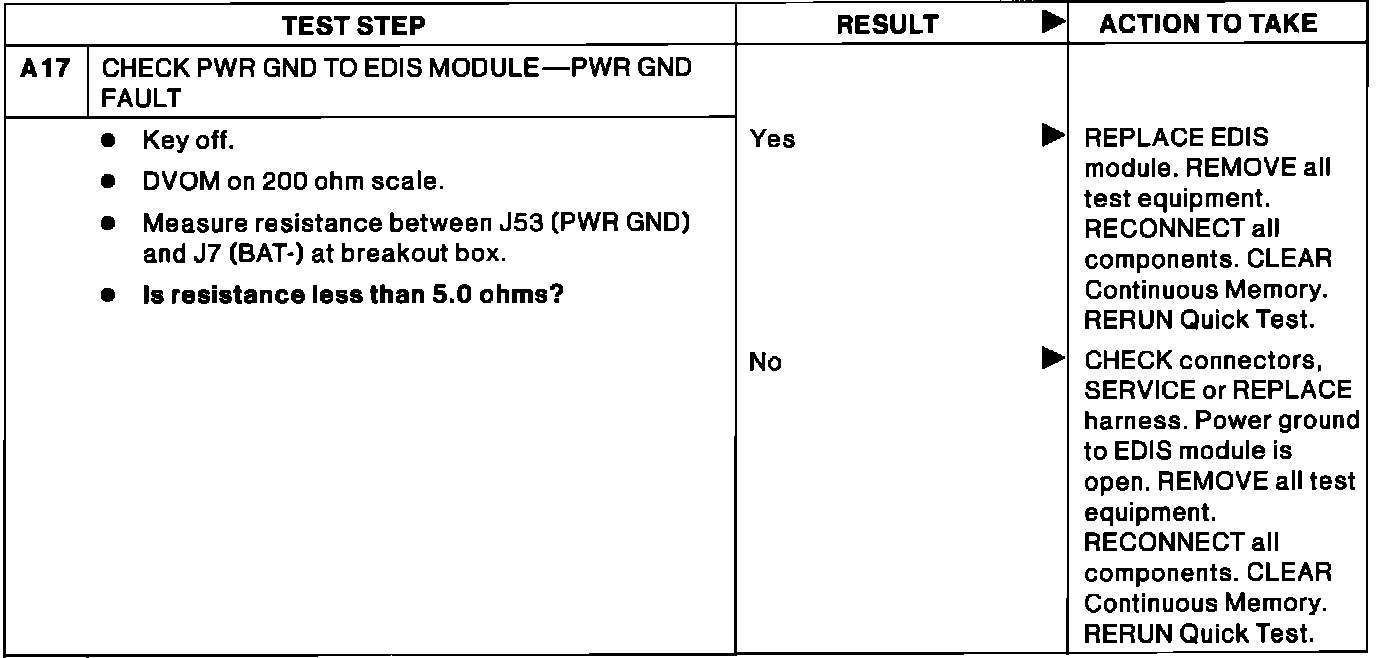

Pinpoint Test A17:
