Home
>>
Mercury
>>
1992
>>
Grand Marquis V8-281 4.6L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
MC - "Check Temp" Light
>>
MC4 - "Check Temp" Light Short to Ground
MC4 - "Check Temp" Light Short to Ground

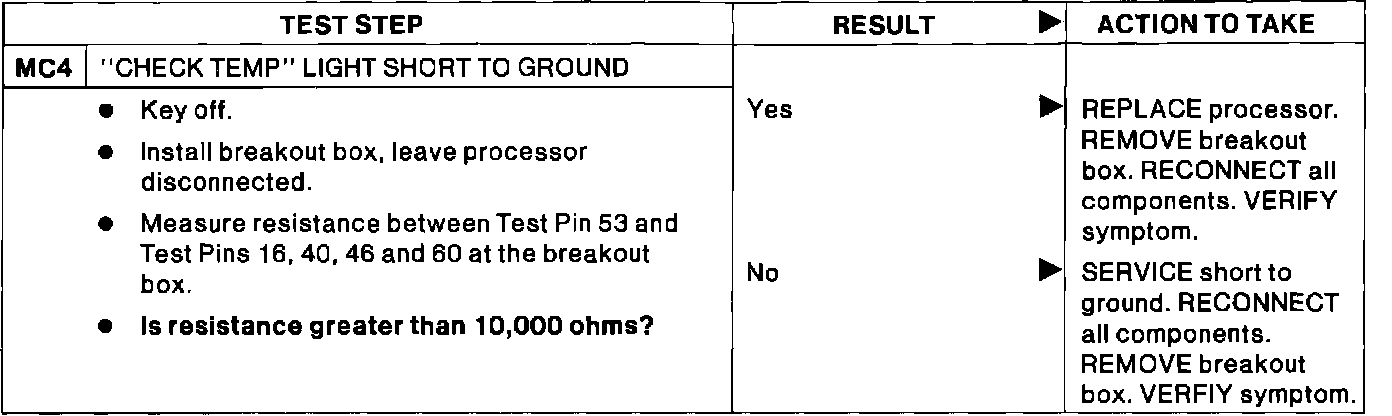

Pinpoint Test MC4:
