Overdrive Cancel Switch, Indicator Lamp and EGR Sensors
>>

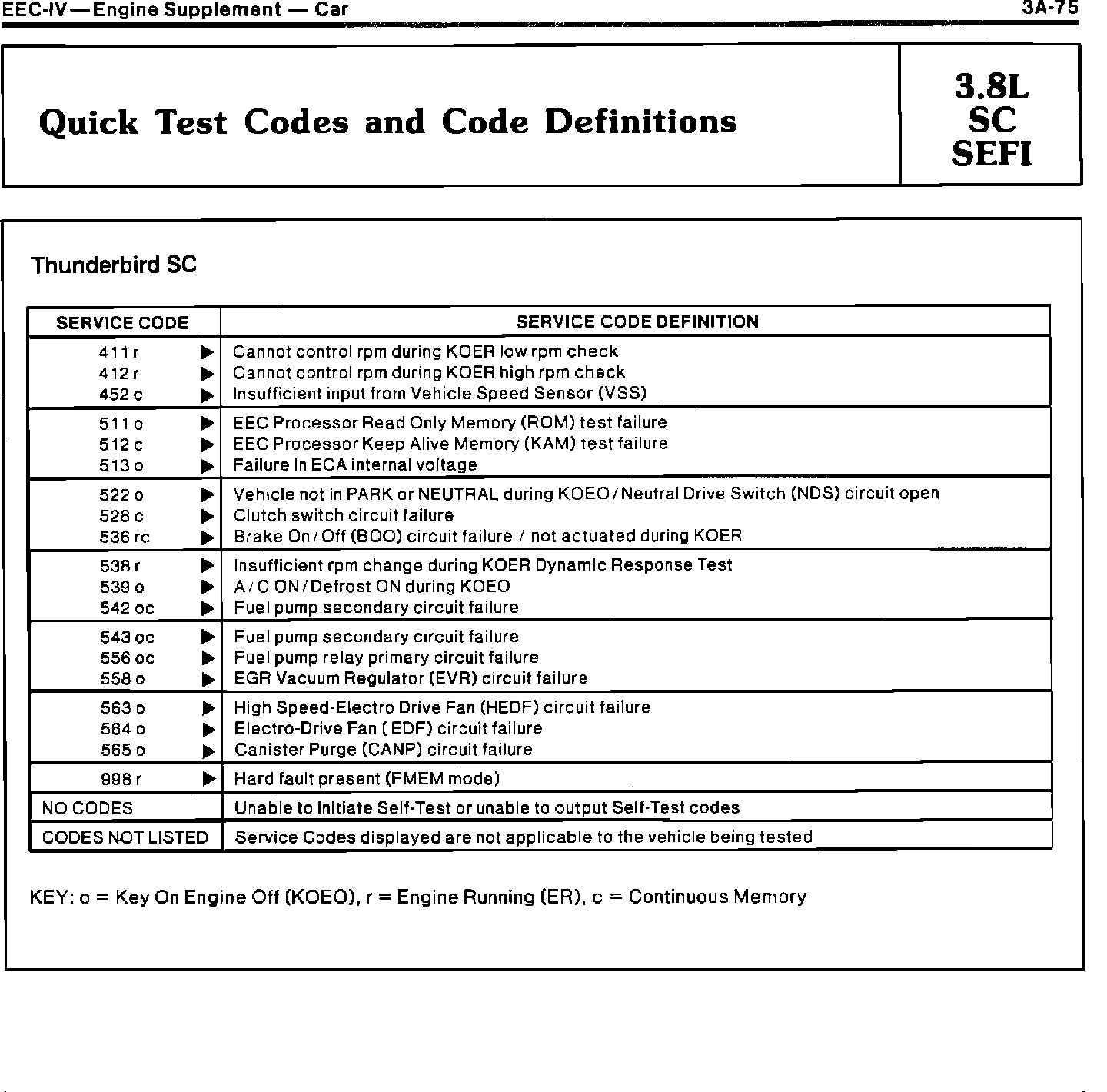

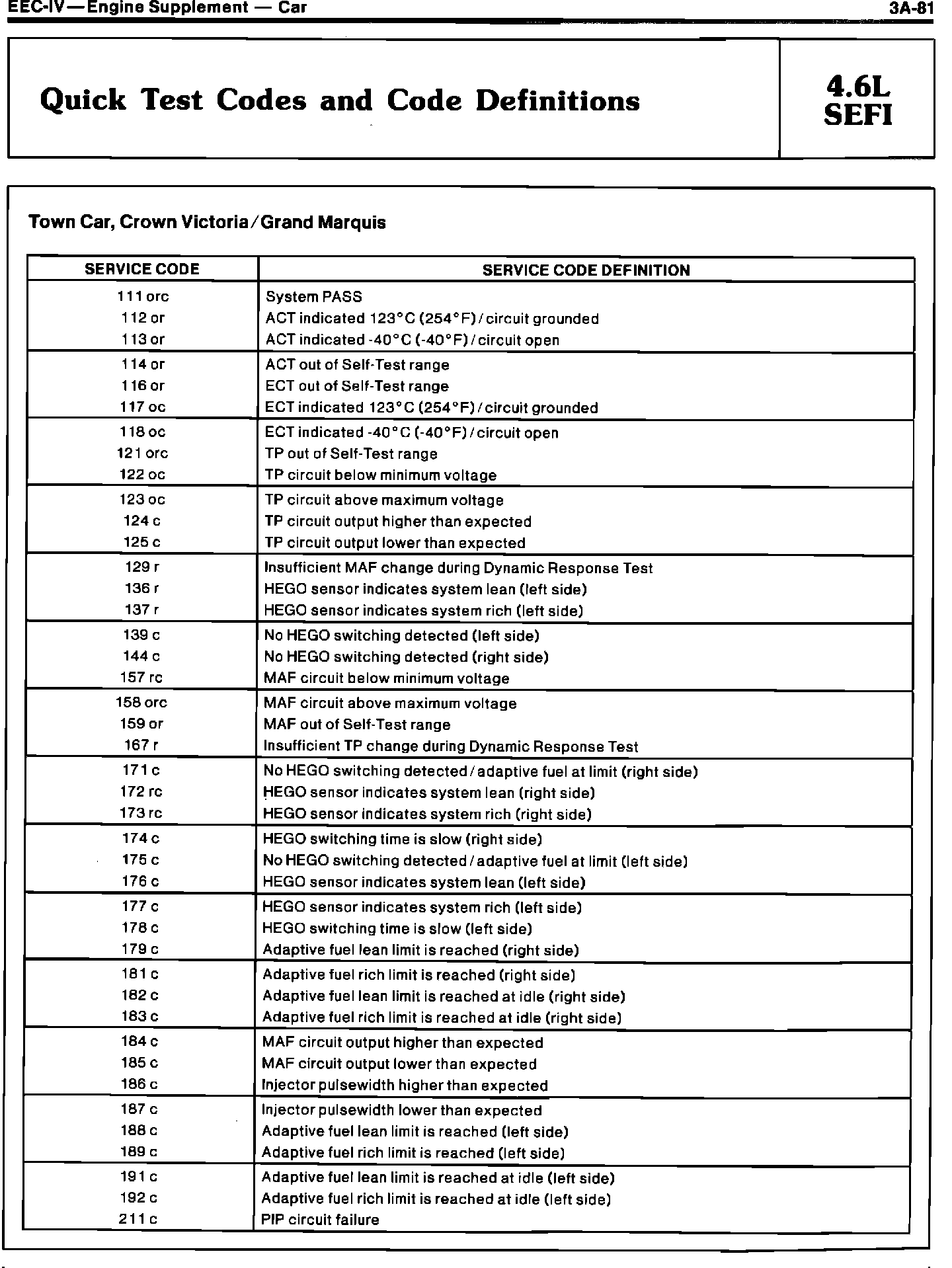

Quick Test Codes and Code Definitions

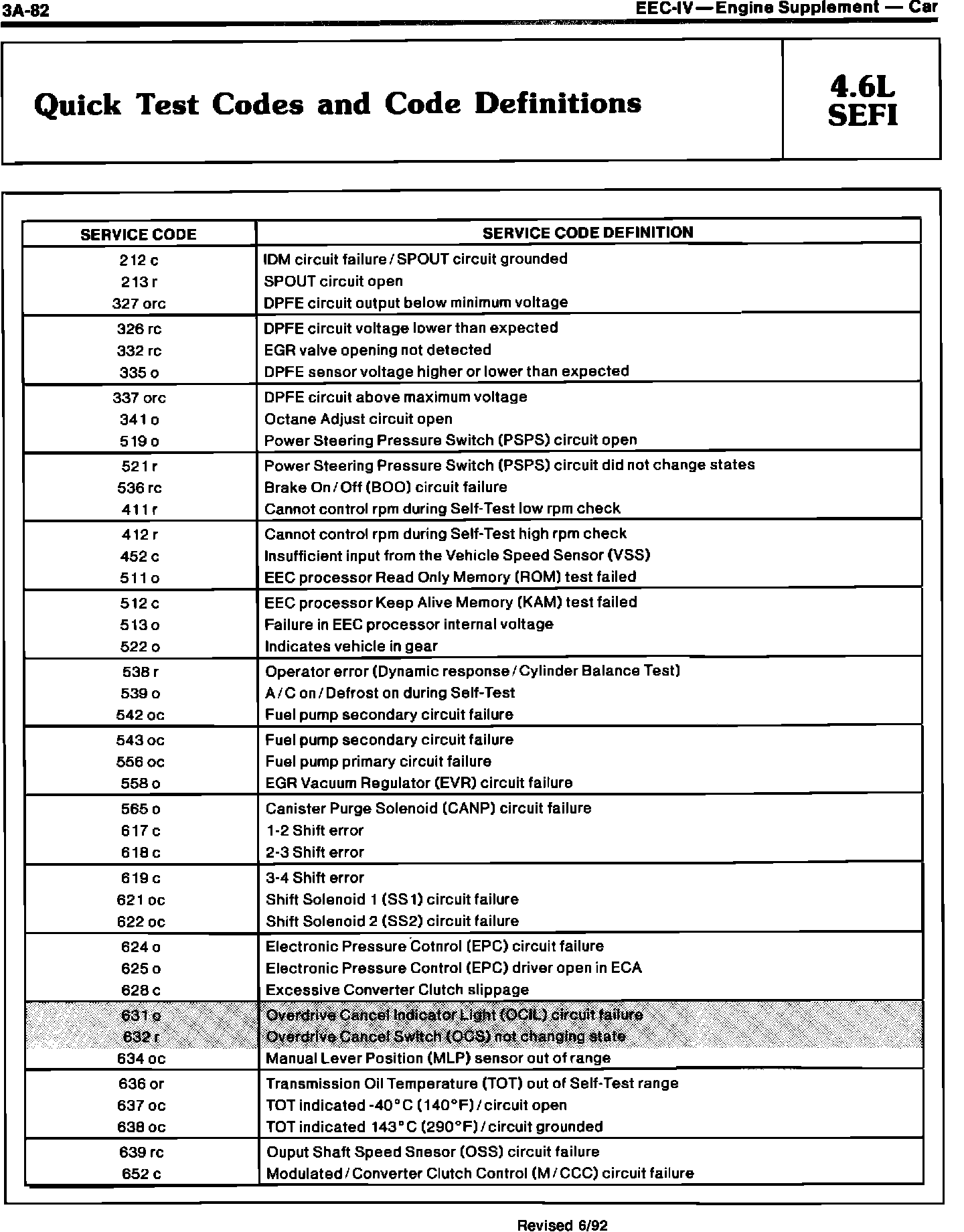

Quick Test Codes and Code Definitions

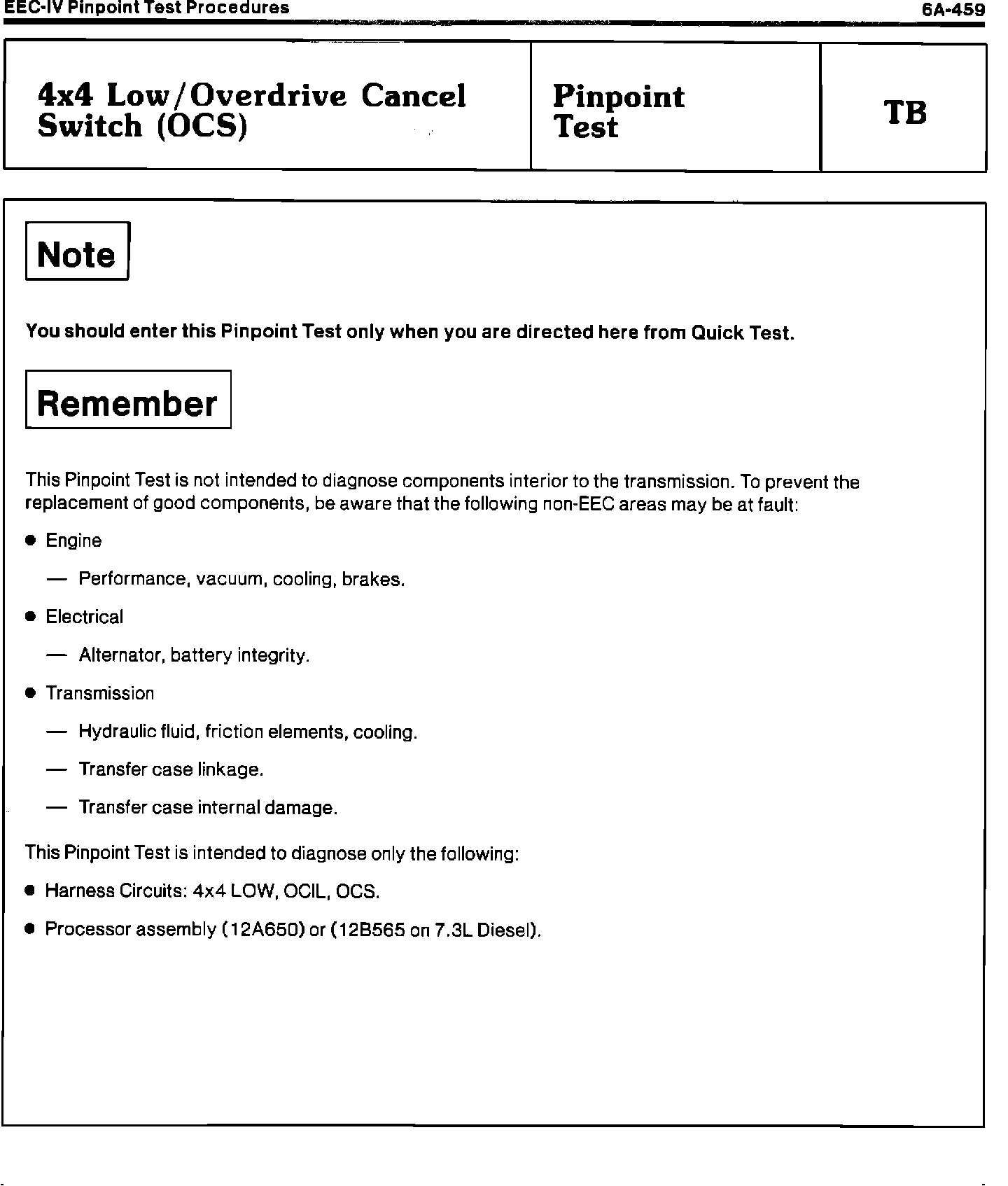

PRECAUTIONS
TEST TB SCHEAMATIC

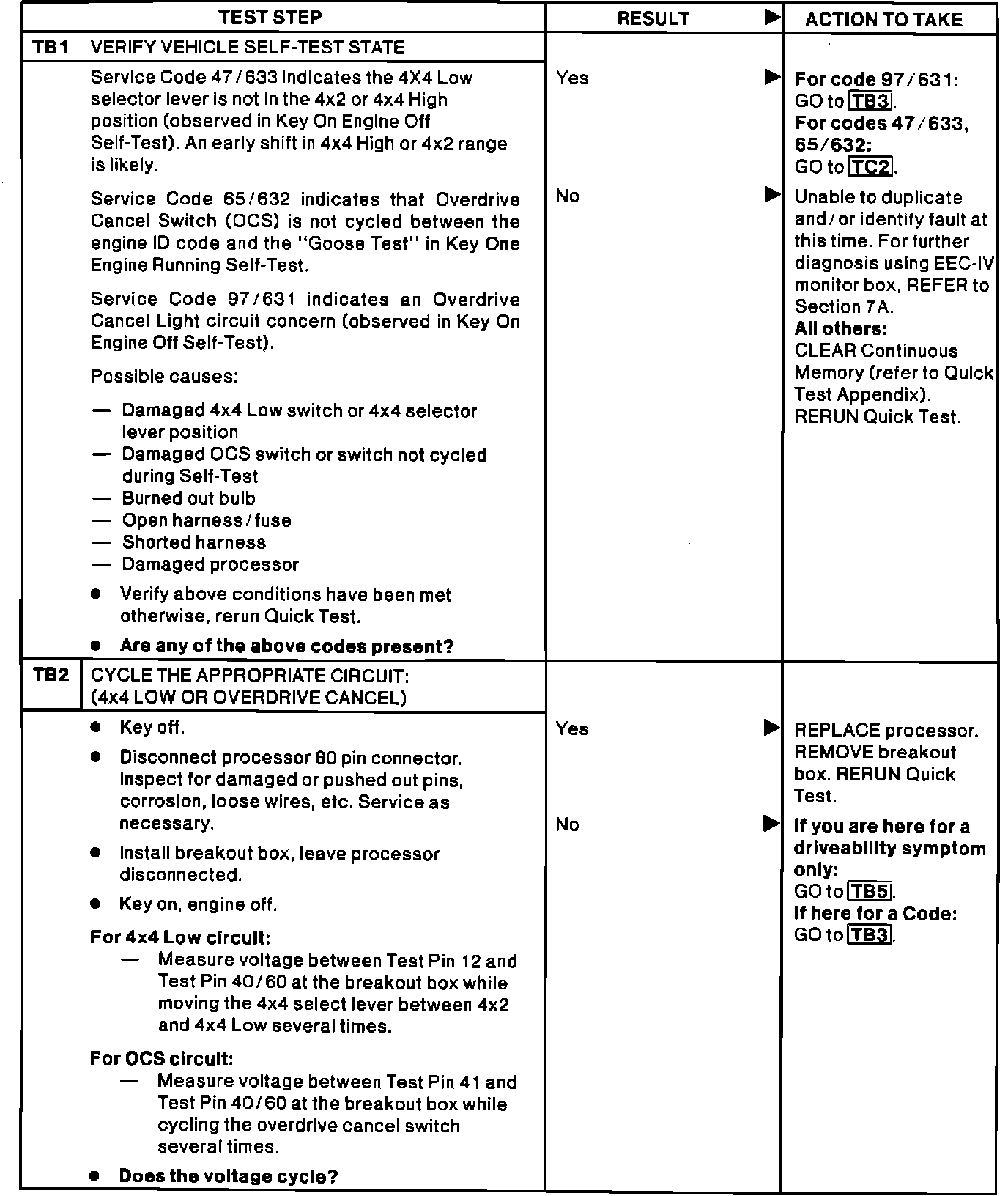

TEST TB1 - TB2

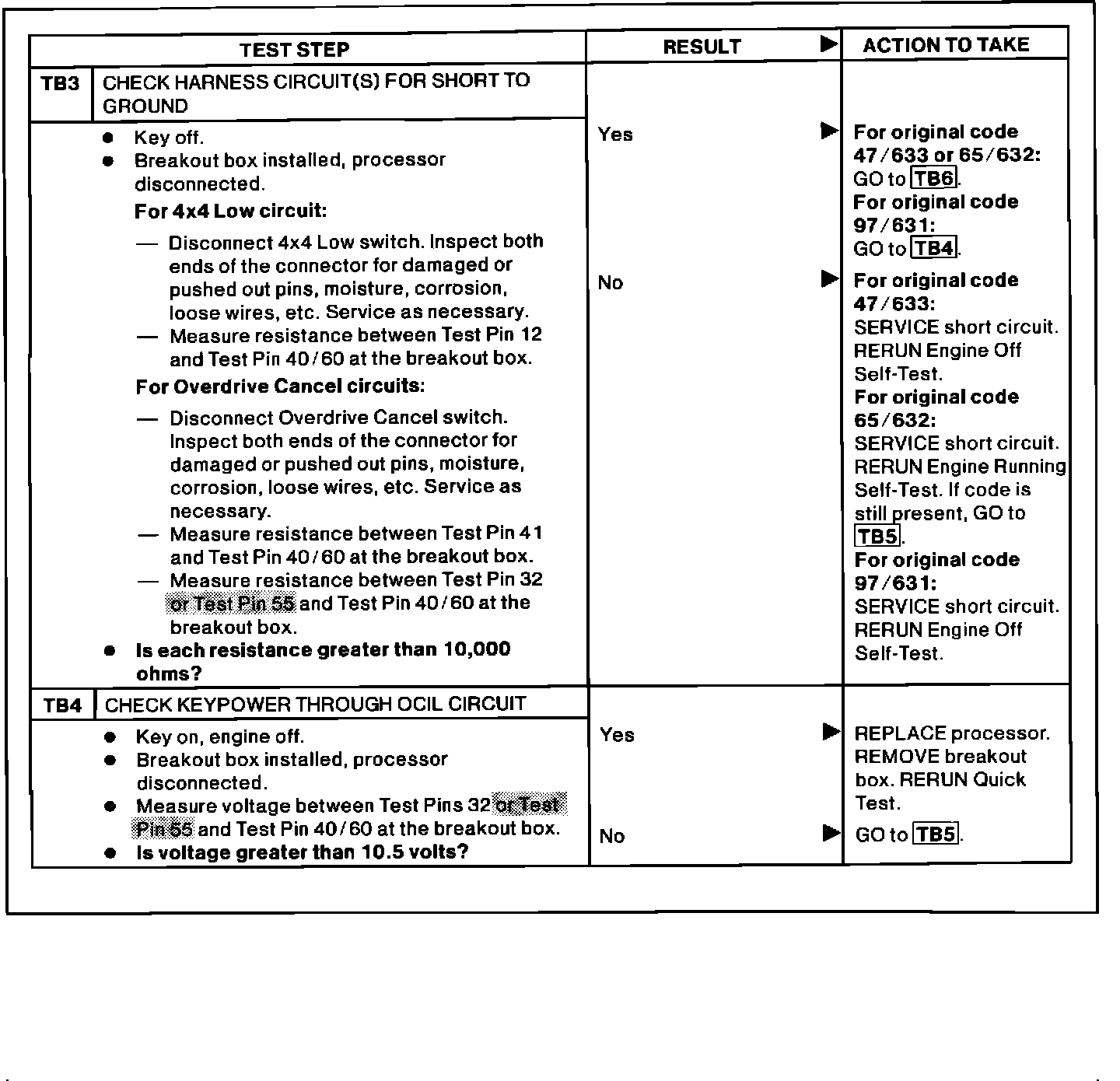

TEST TB3 - TB4

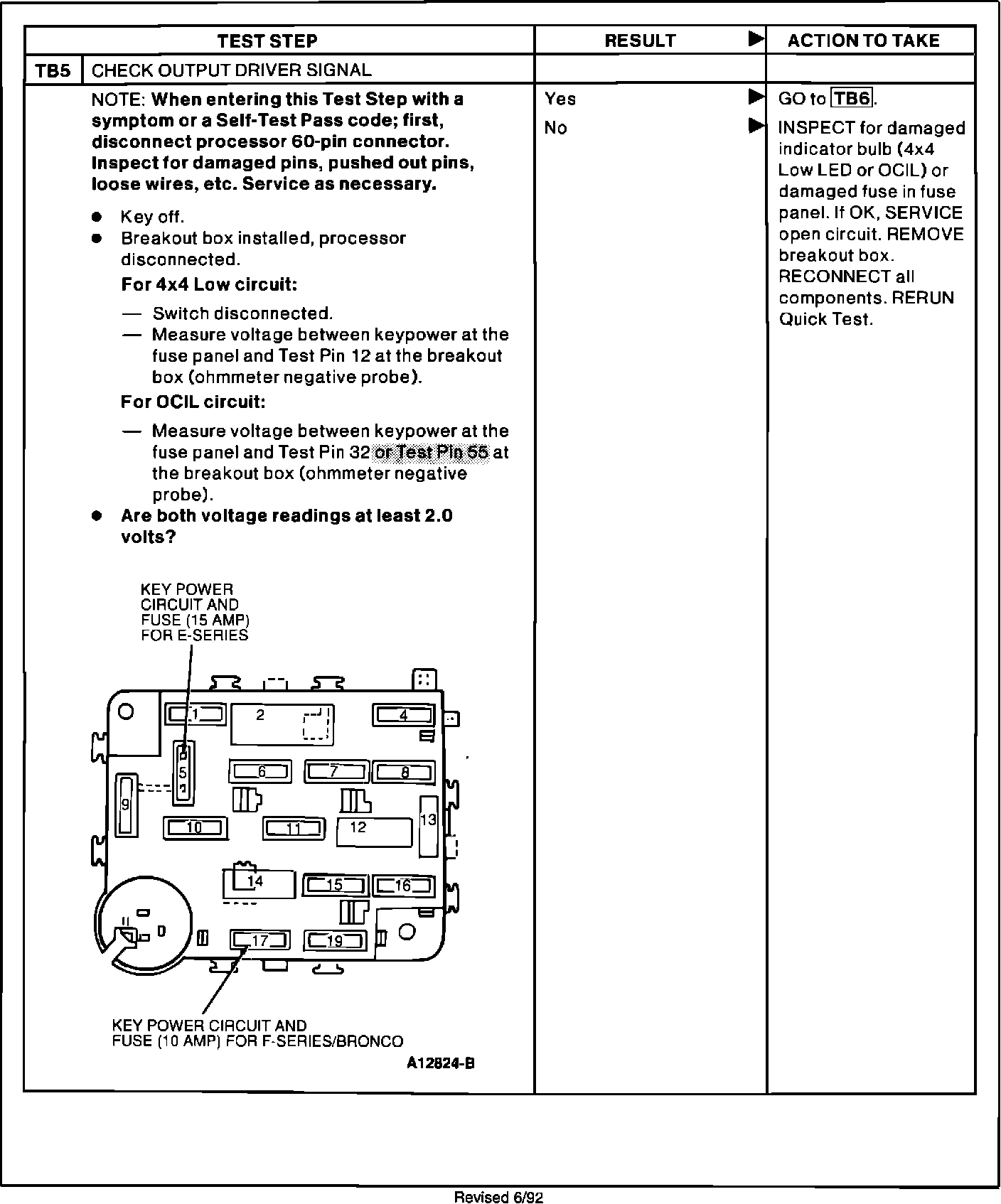

TEST TB5

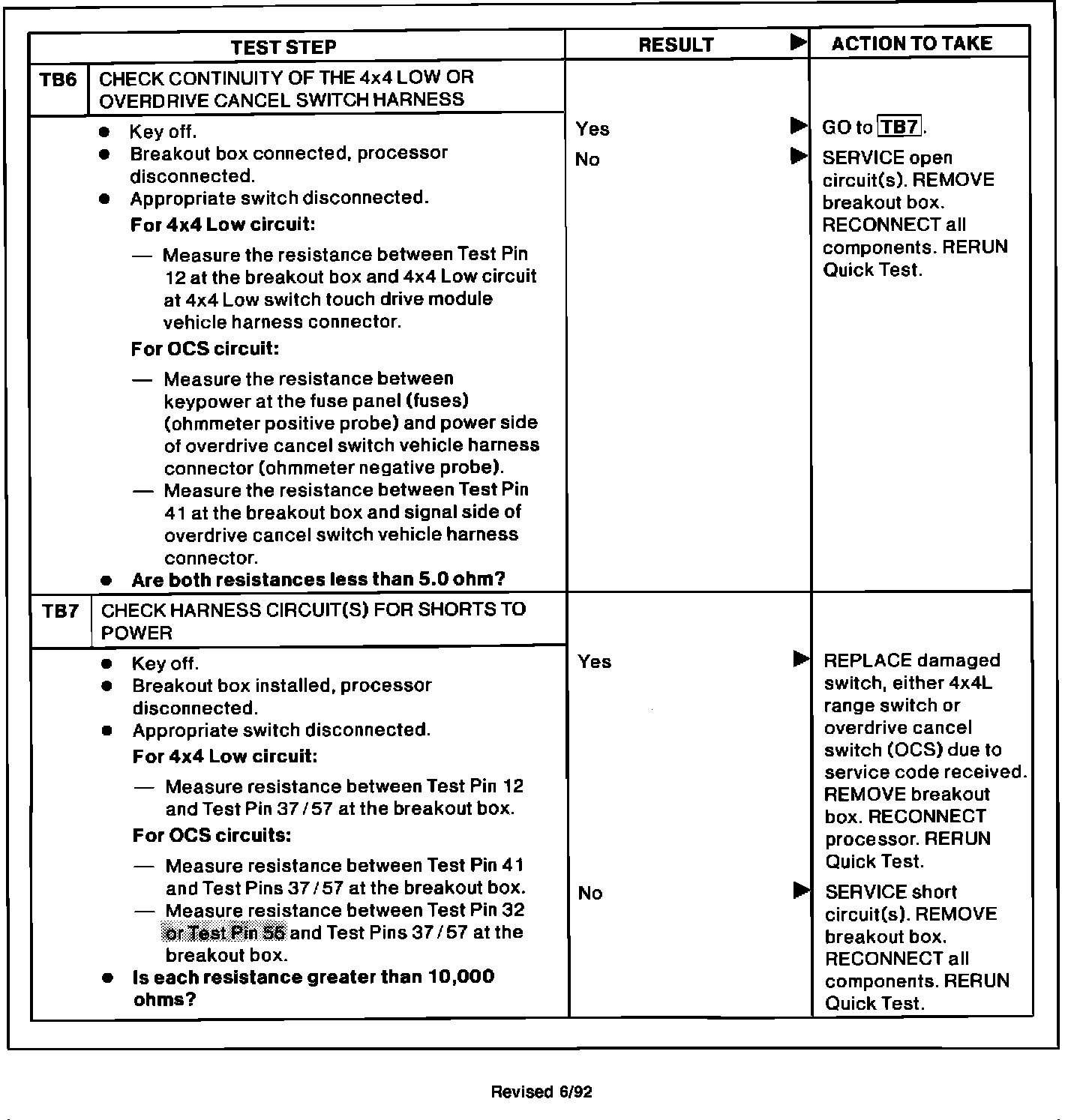

TEST TB6 - TB7
