E: No High Blower Speed
E: No High Blower Speed

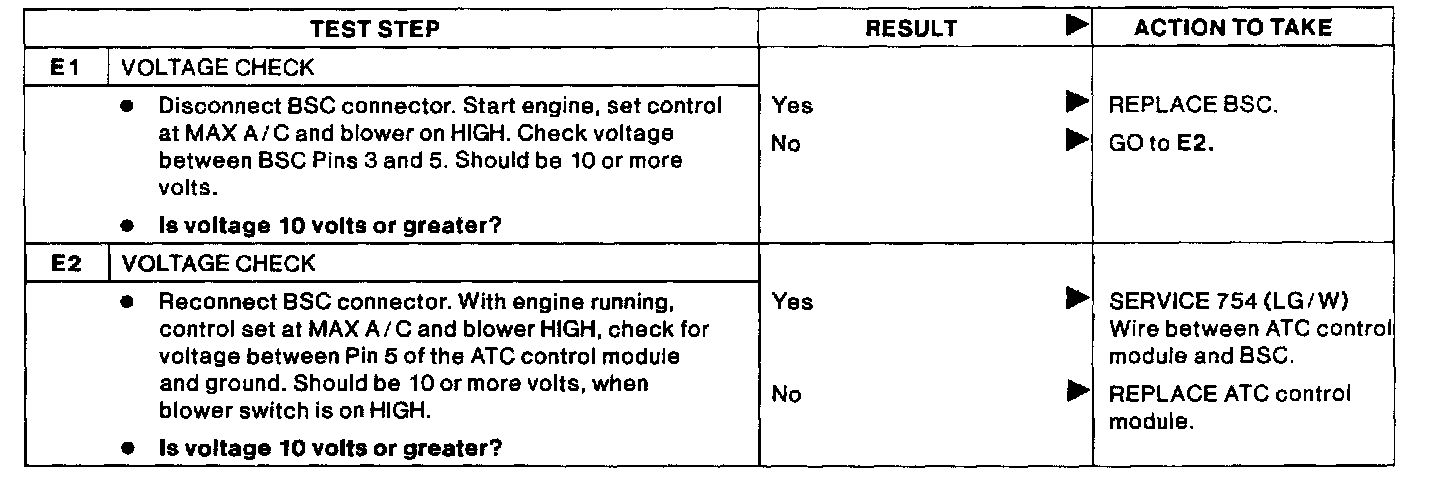

IV Symptom - No High Blower Speed:
Test Condition:
Start engine, set control to MAX A/C, set blower switch to LOW or MED (blower turns), then switch blower to high speed. If blower does not go to full high speed:
