Quick Test
Quick Test
Test Condition:
The following is a "quick guide" and assumes that interior temperature is 70-80°F. It also assumes that there is a reasonable chance that A/C
refrigerant
system (compressor, etc.) is functioning.

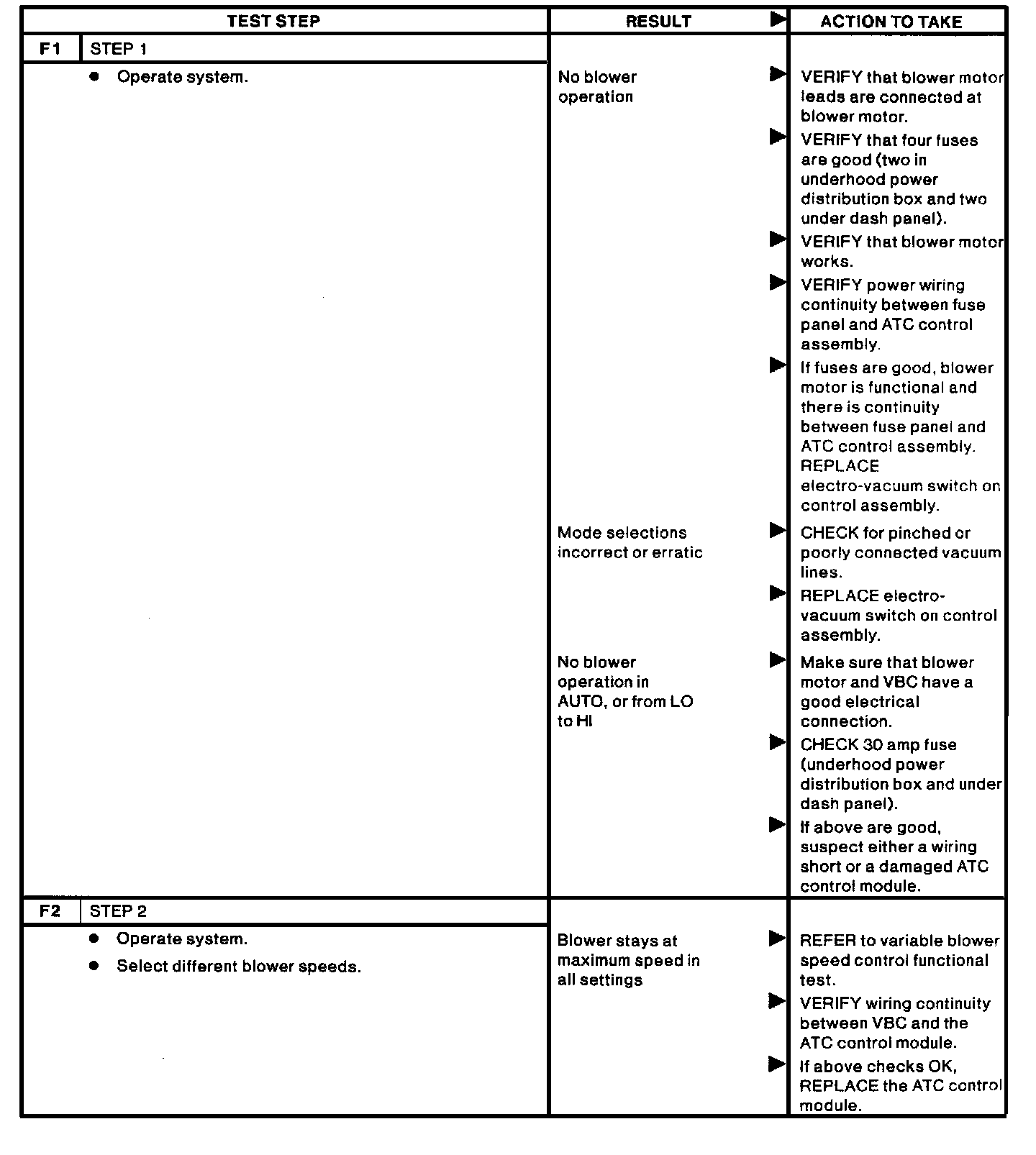

F1 - F2:

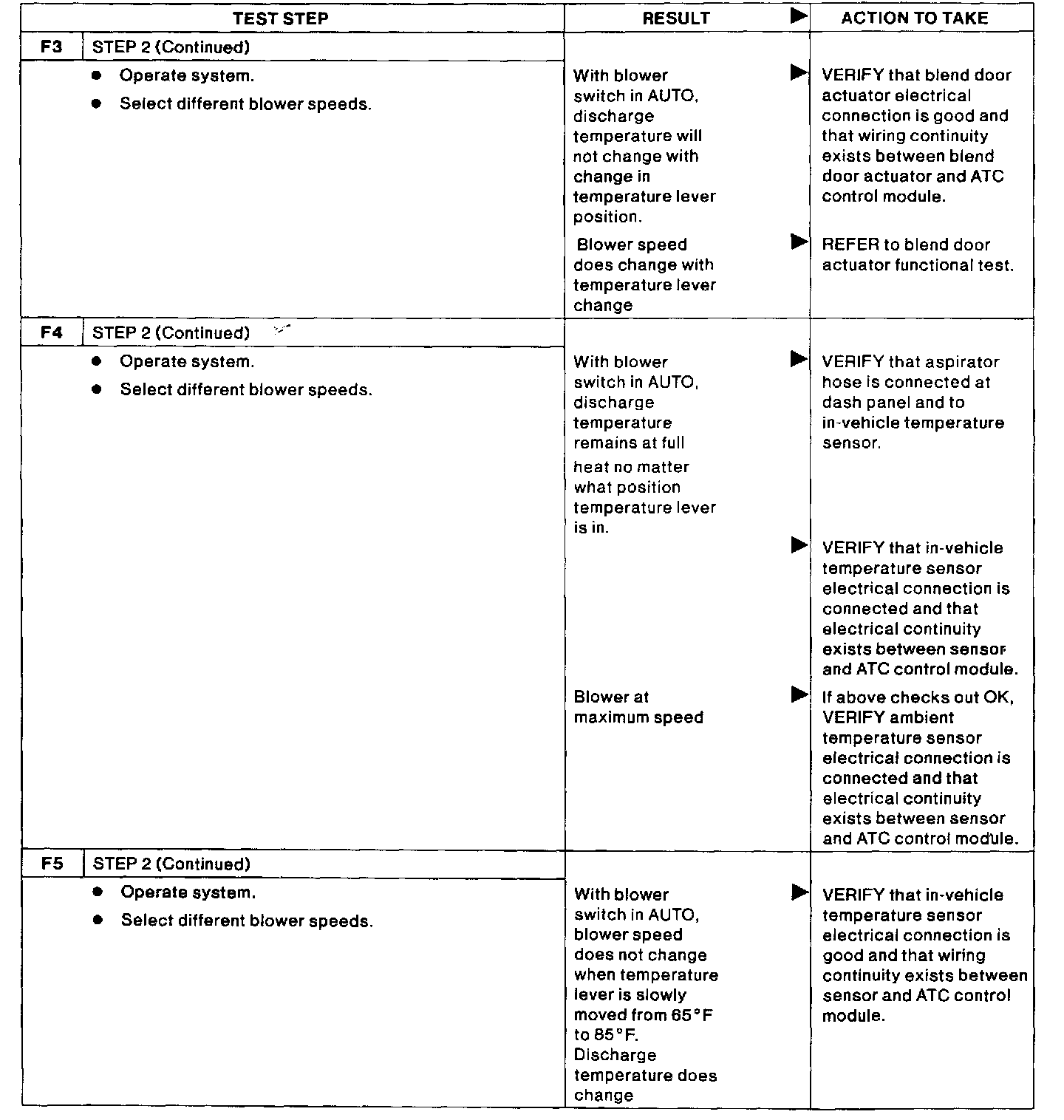

F3 - F5:

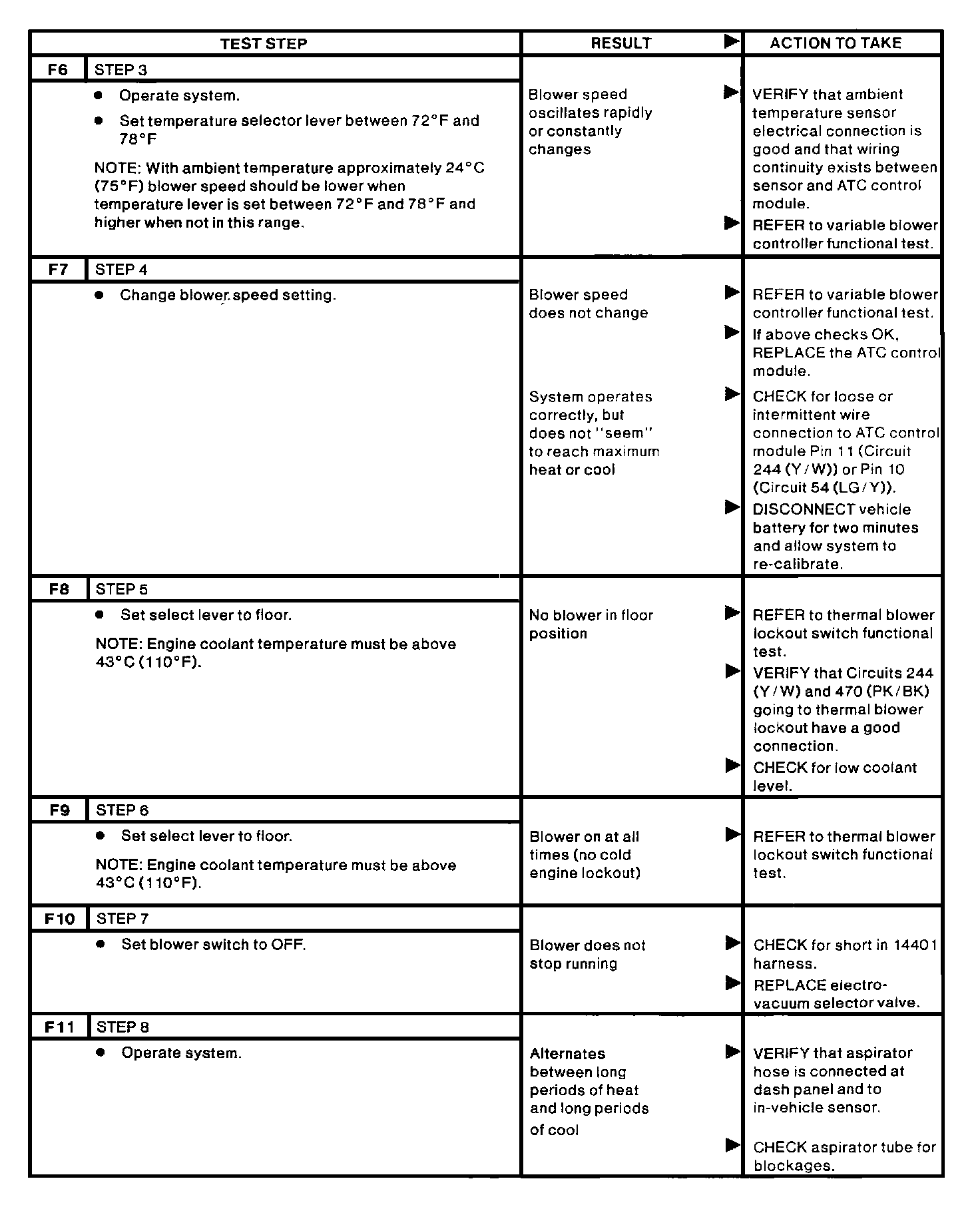

F6 - F11:

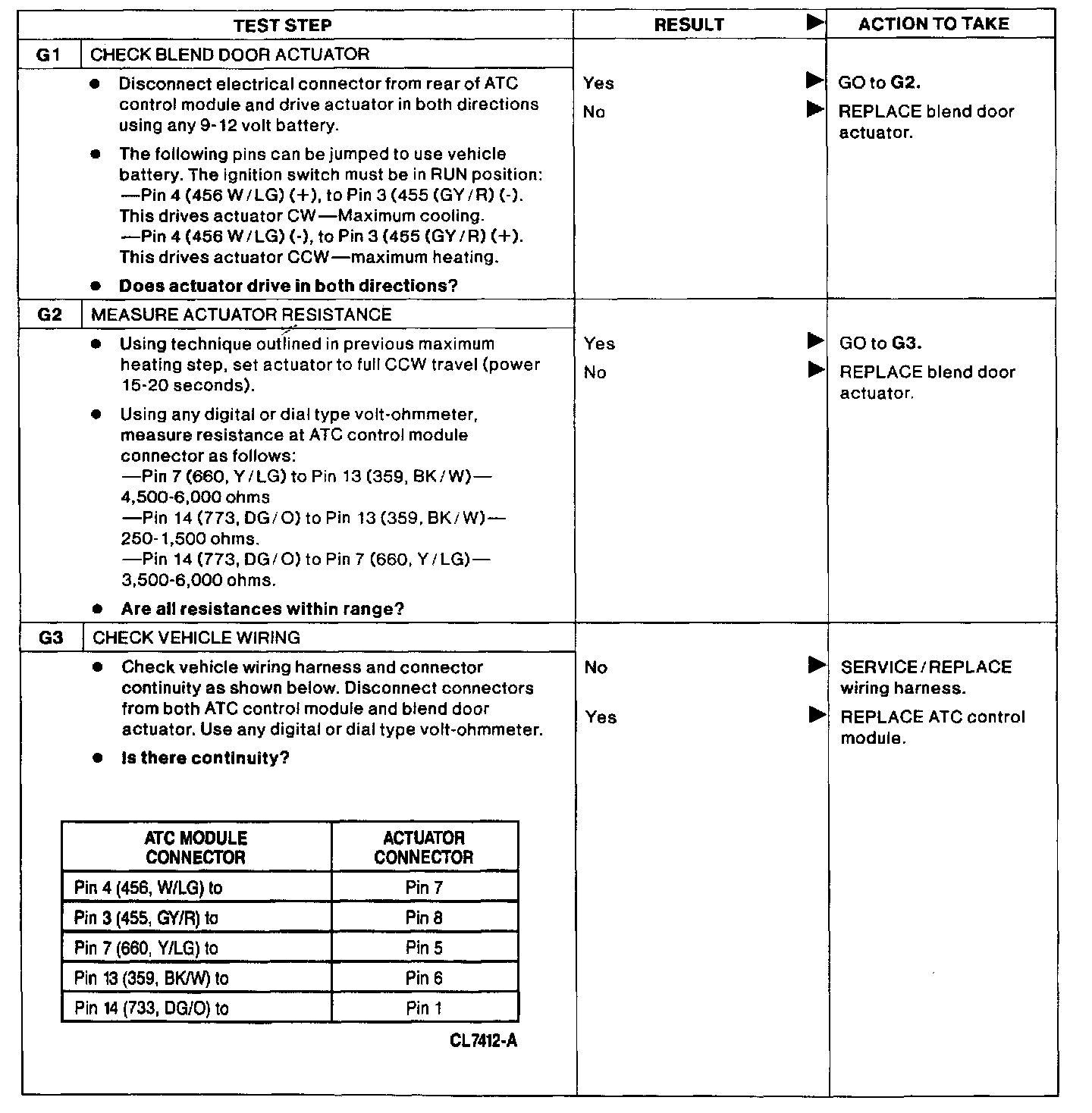

G1 - G3:
