A/C Compressor Plastic Shaft Seal Protector - Revision

9207ford01

Article No.
91-25B-7

12/20/91


SHOP MANUAL-1992-PAGE 12-03-39-PLASTIC SHAFT SEAL PROTECTOR INFORMATION ADDED


FORD: 1992 CROWN VICTORIA

LINCOLN-MERCURY: 1992 GRAND MARQUIS





ISSUE: Information concerning usage of the Plastic Shaft Seal Protector was not included on Page 12-03-39 of the 1992 Crown Victoria/Grand Marquis Shop Manual. Failure to use this plastic seal protector may result in damage to the new seal during installation.

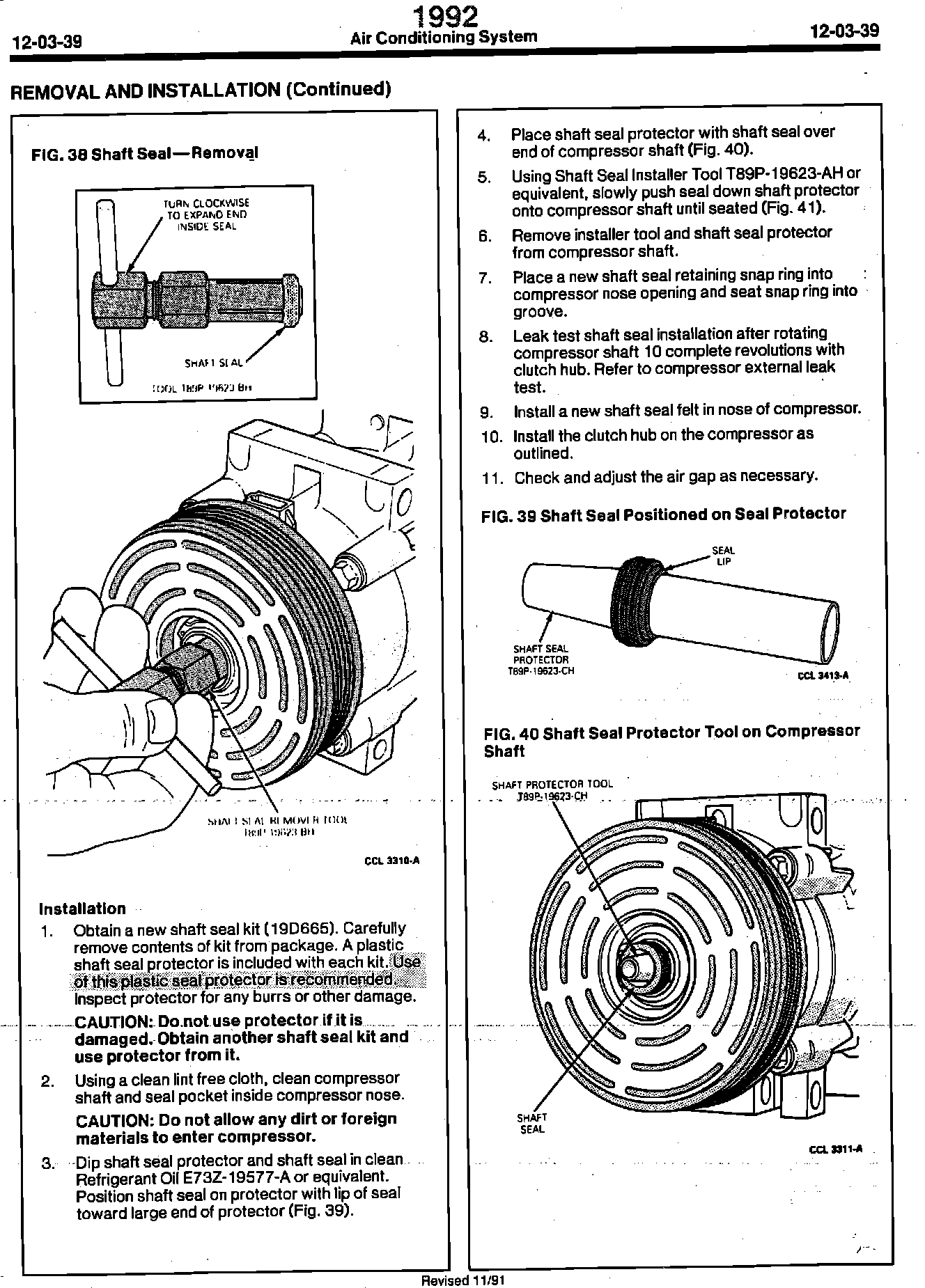

ACTION: Refer to the image in this TSB article for the additional information.


OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 290000
