Home >> Mercury >> 1992 >> Grand Marquis V8-281 4.6L SOHC >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> J Poor Tracking During ABS Function

J Poor Tracking During ABS Function

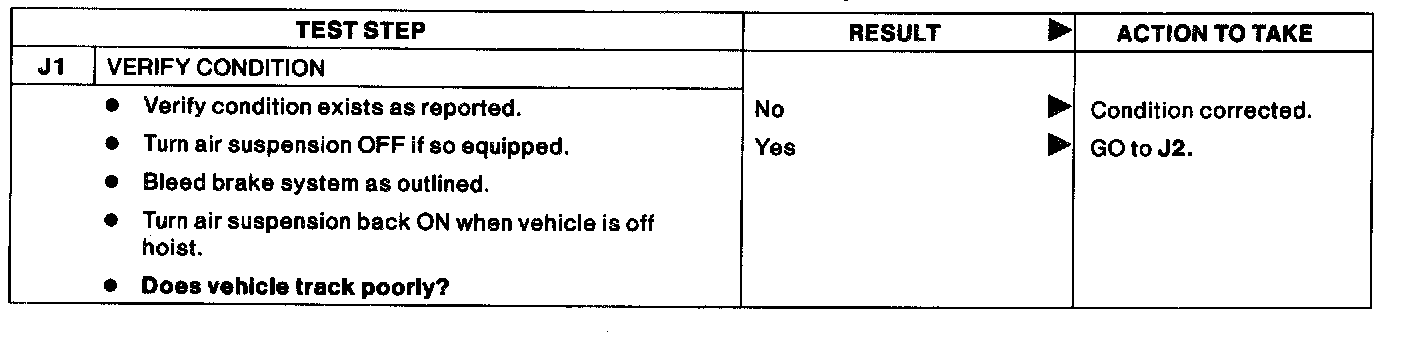

J1:

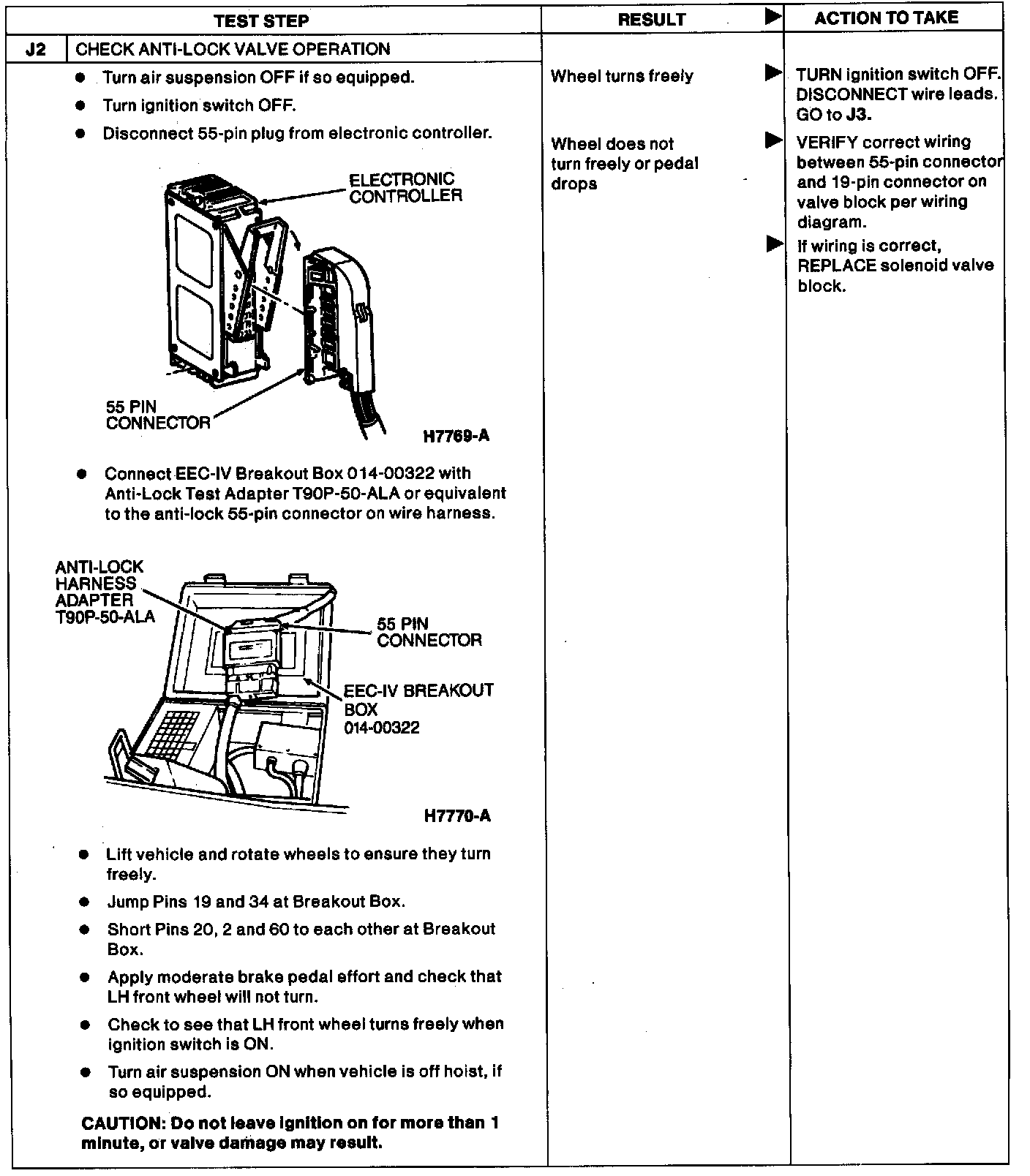

J2:






J3 - J5:
