How to Use Pinpoint Tests

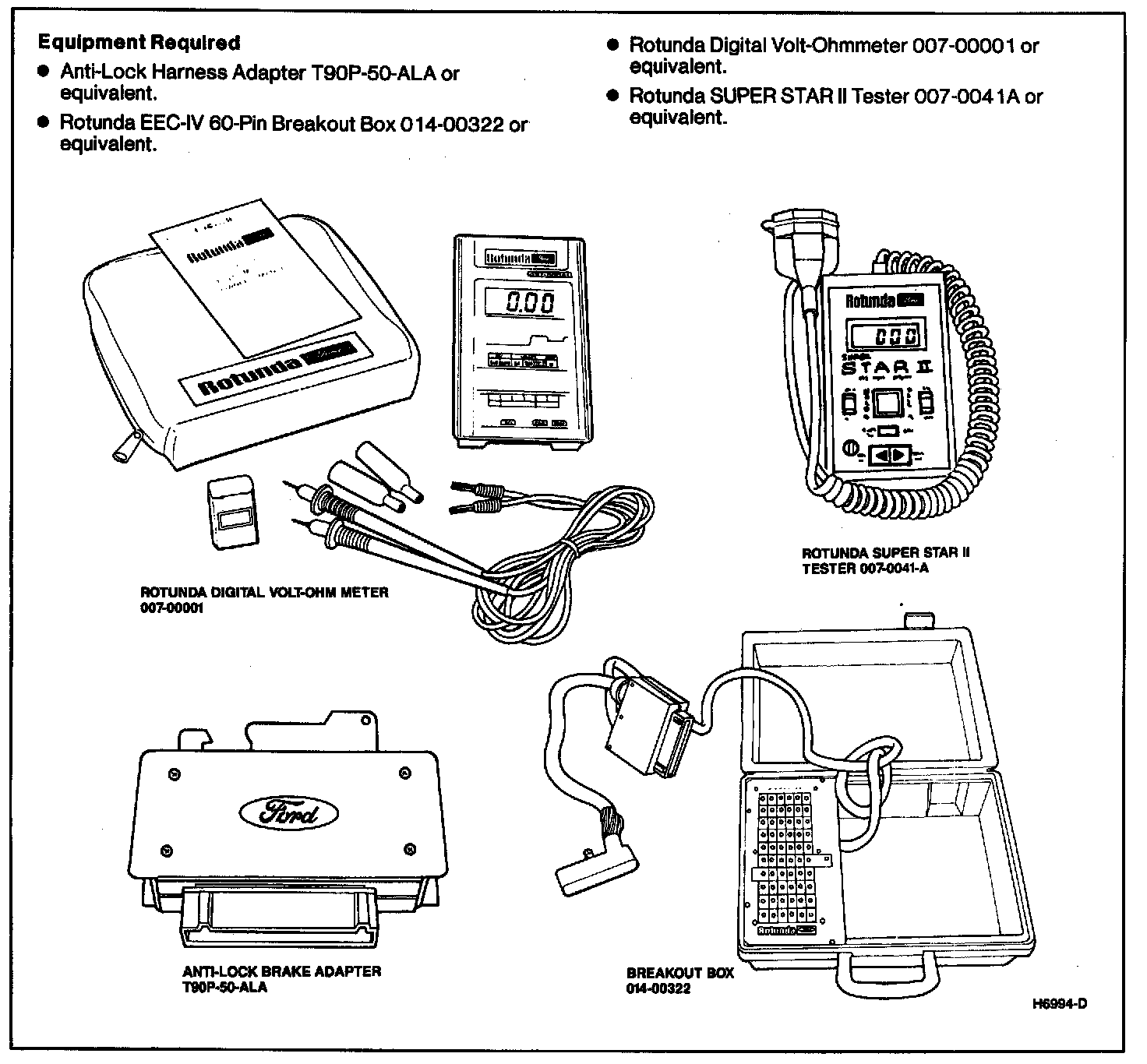

REQUIRED TOOLS

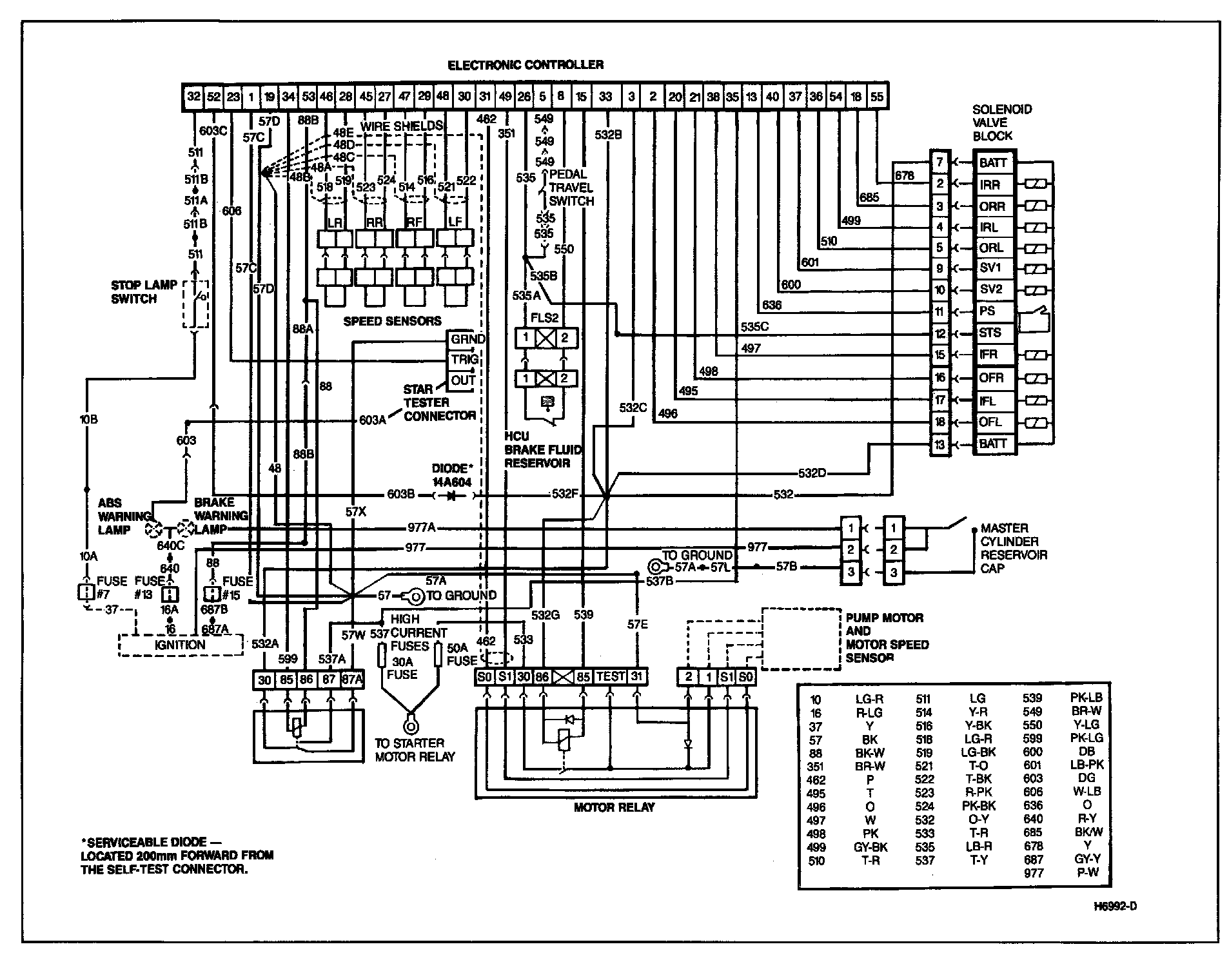

System Schematic, with Traction Assist


Refer to the wiring diagram when performing the Diagnostic Tests to locate wire circuits indicated in the tests. Each test is completely independent of the other tests and within each test are sequences that can identify a condition without requiring completion of the entire test procedure.
