Home >> Mercury >> 1992 >> Grand Marquis V8-281 4.6L SOHC >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> B ABS Warning Indicator on (Brake Indicator Off)

B ABS Warning Indicator on (Brake Indicator Off)

B1 - B2:

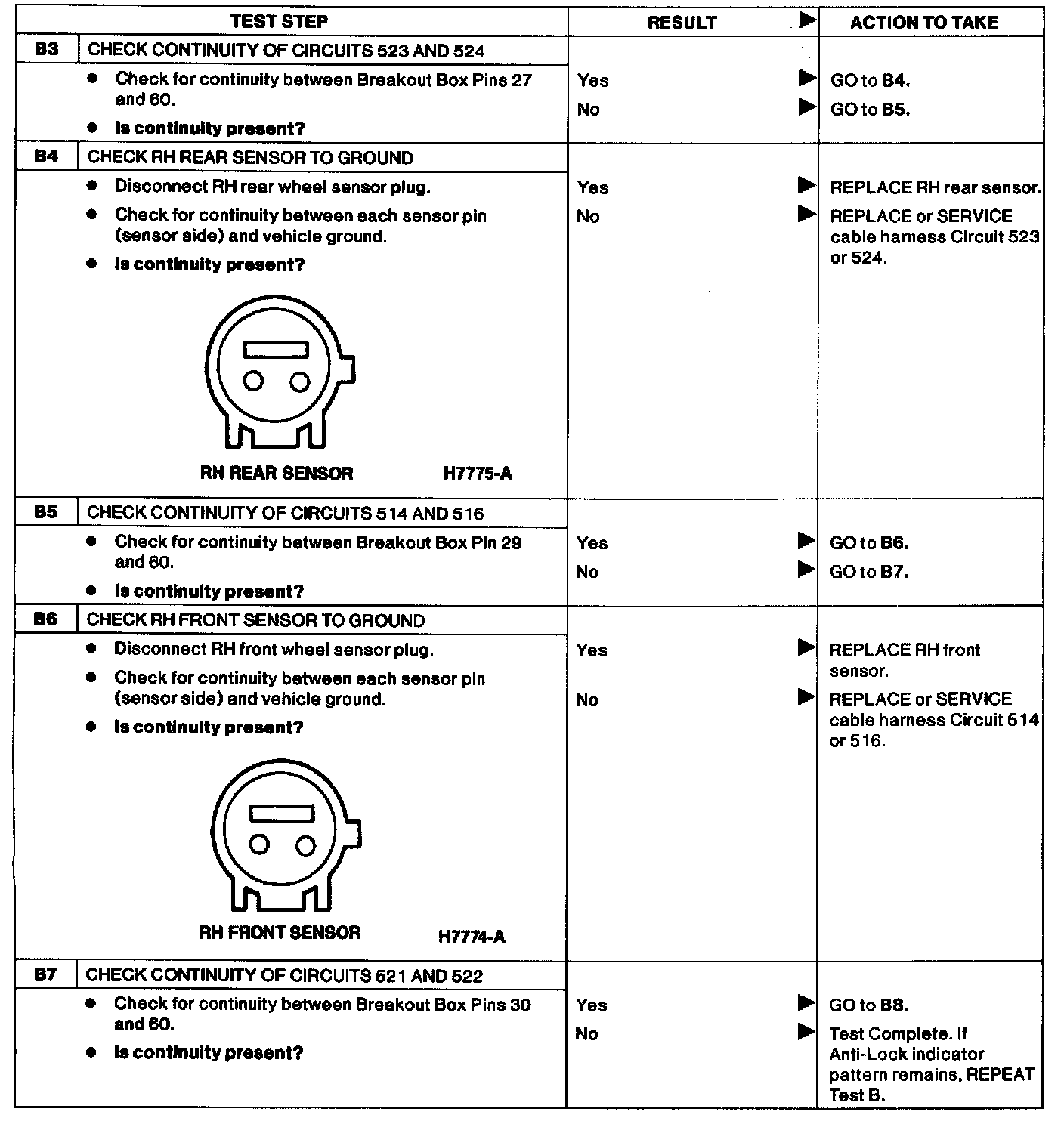

B3 - B7:

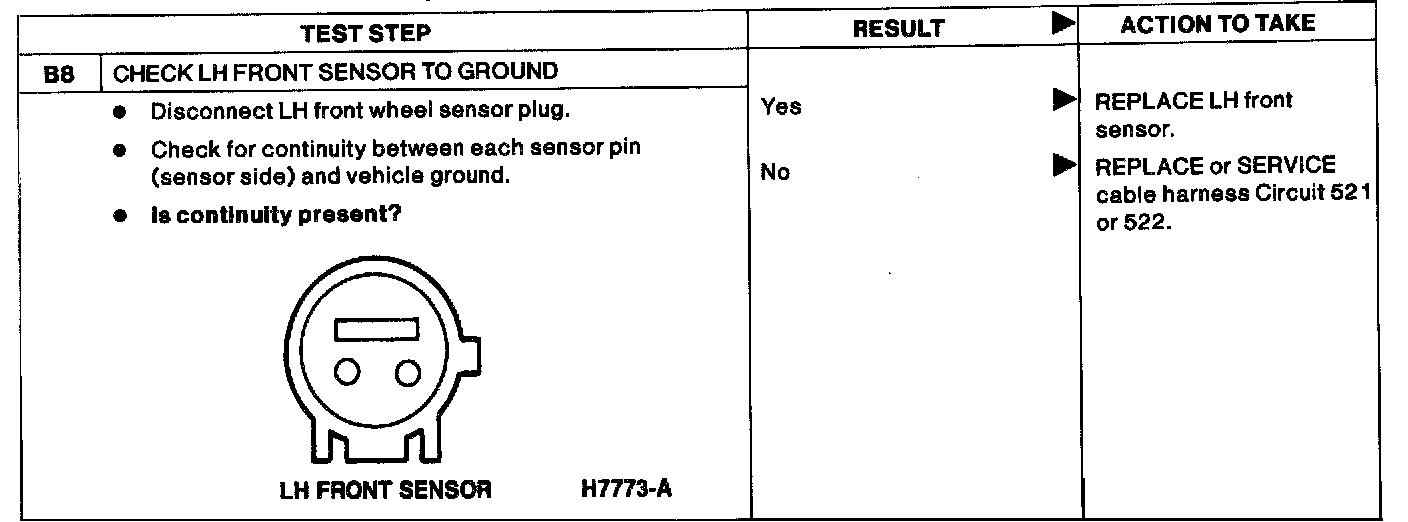

B8:
