Home >> Mercury >> 1992 >> Grand Marquis V8-281 4.6L SOHC >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> A Warning Indicator ON/Brake Warning OFF)

A Warning Indicator ON/Brake Warning OFF)

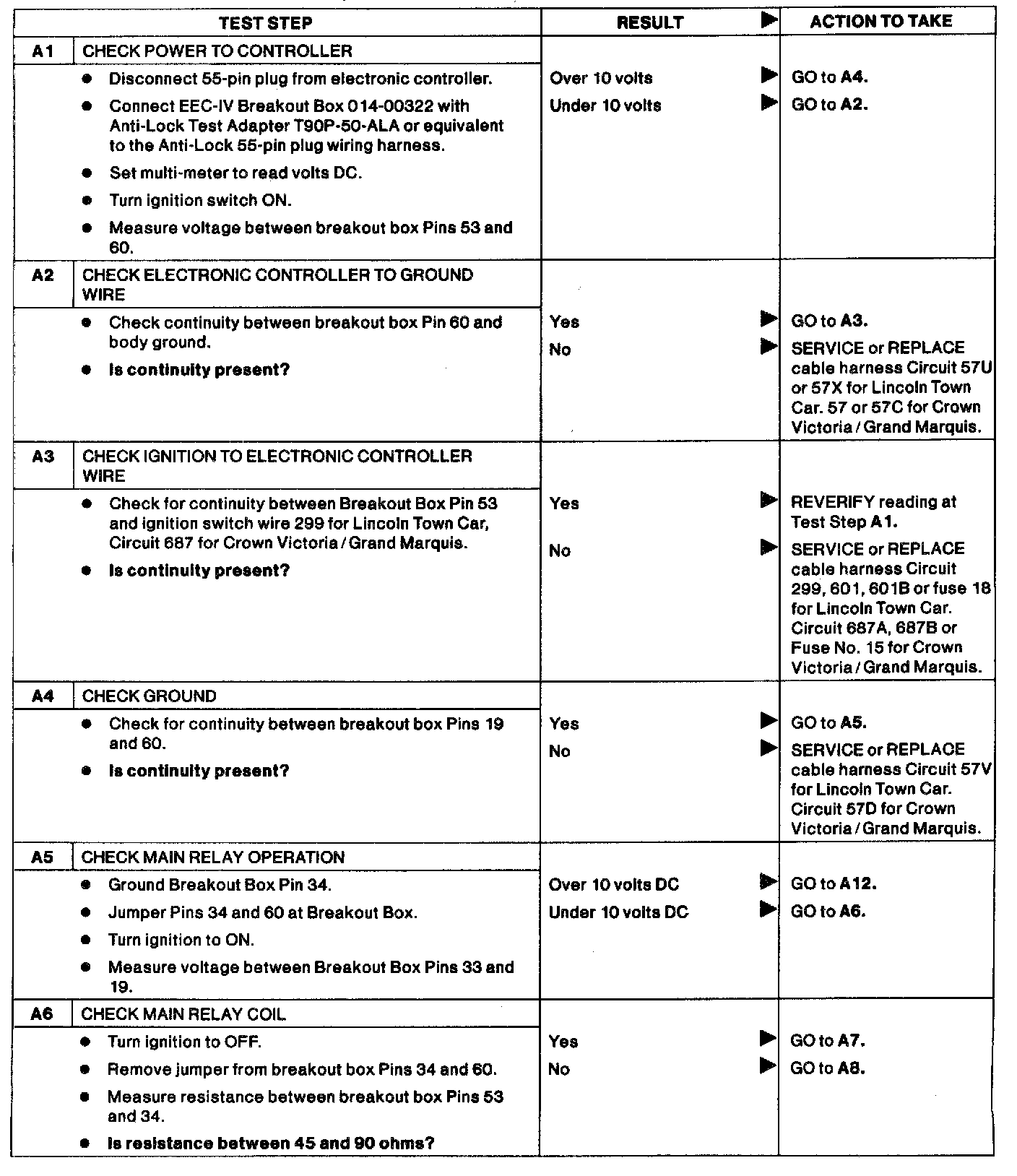

A1 - A6:

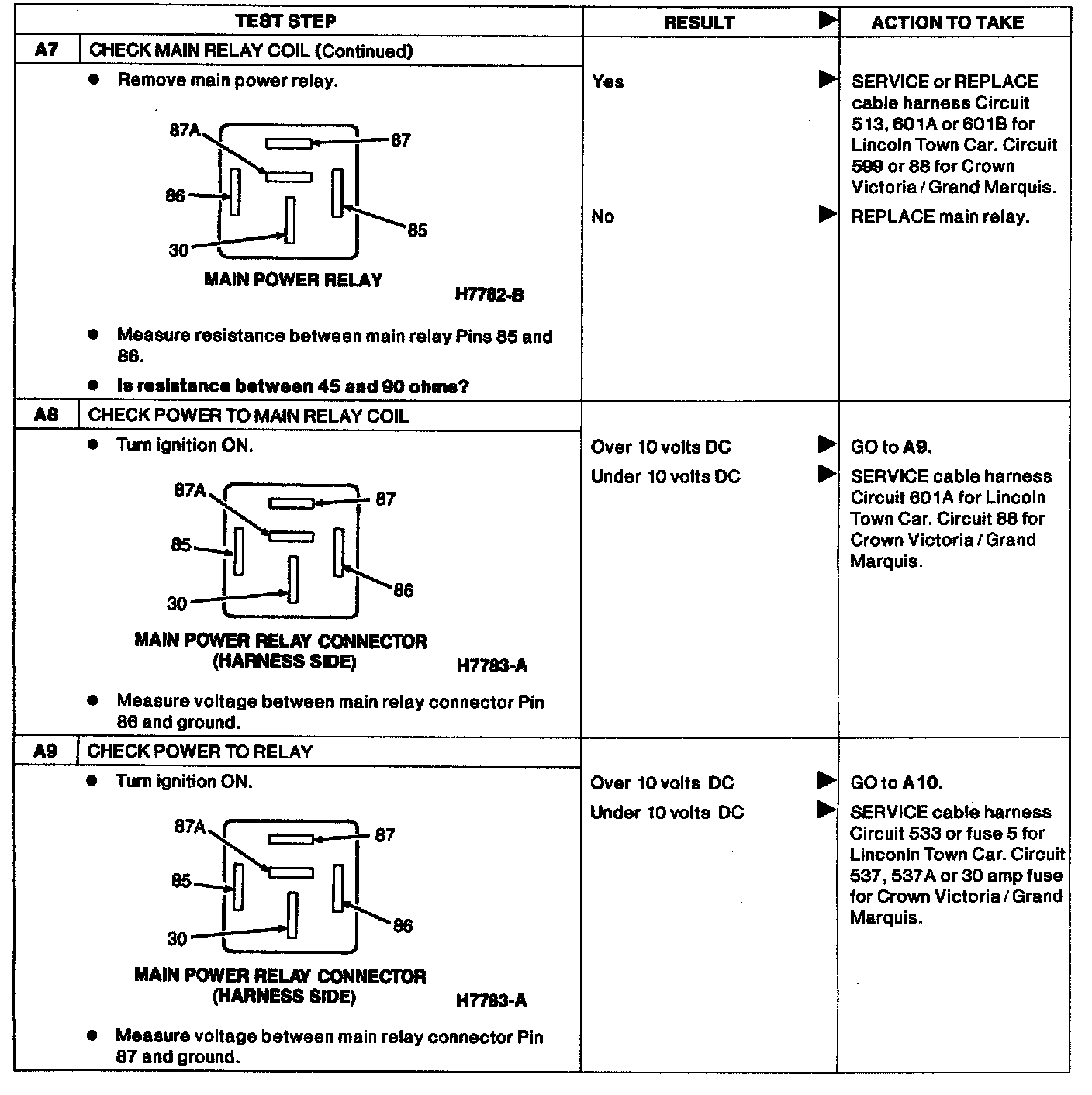

A7 - A9:

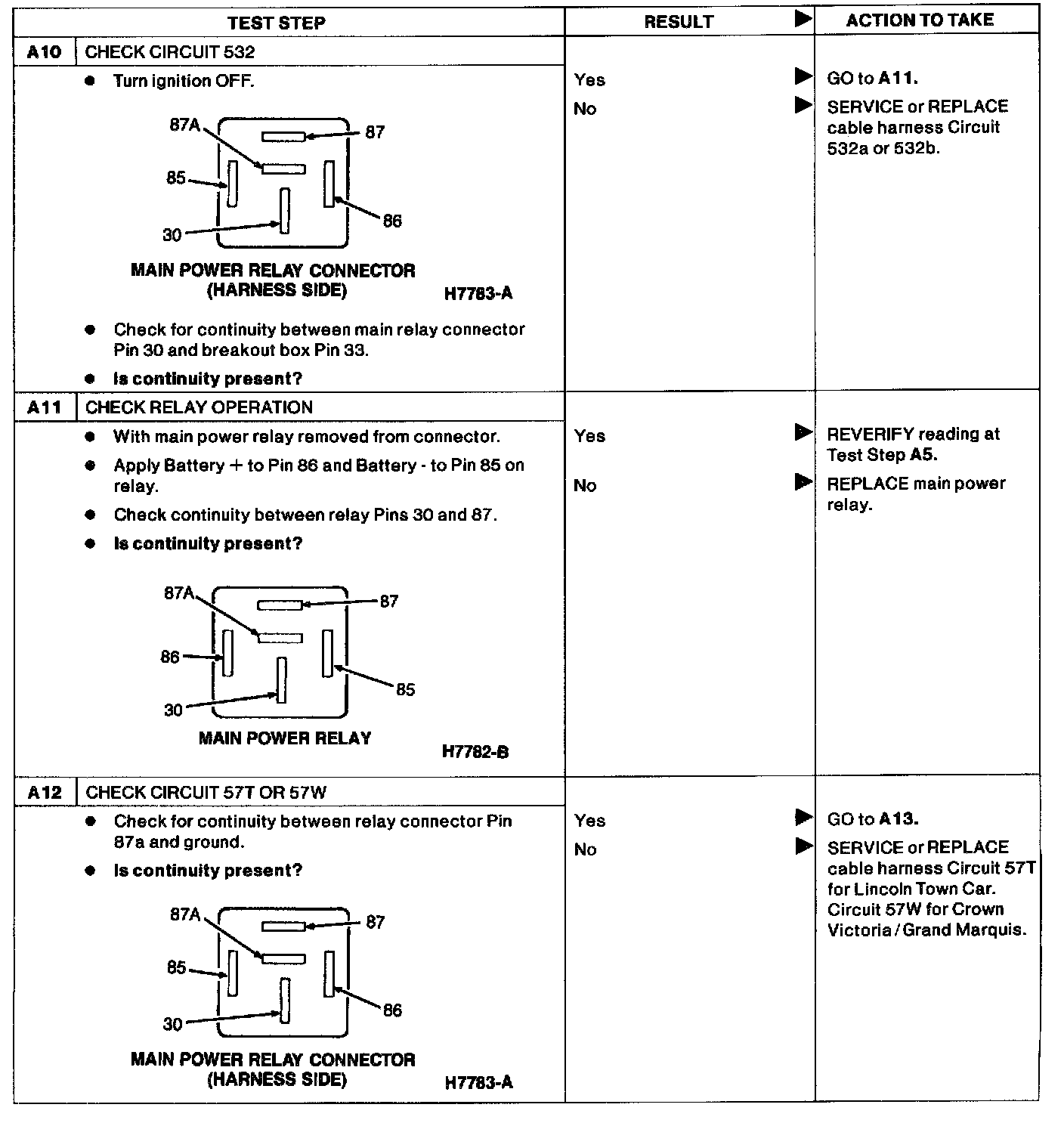

A10 - A12:

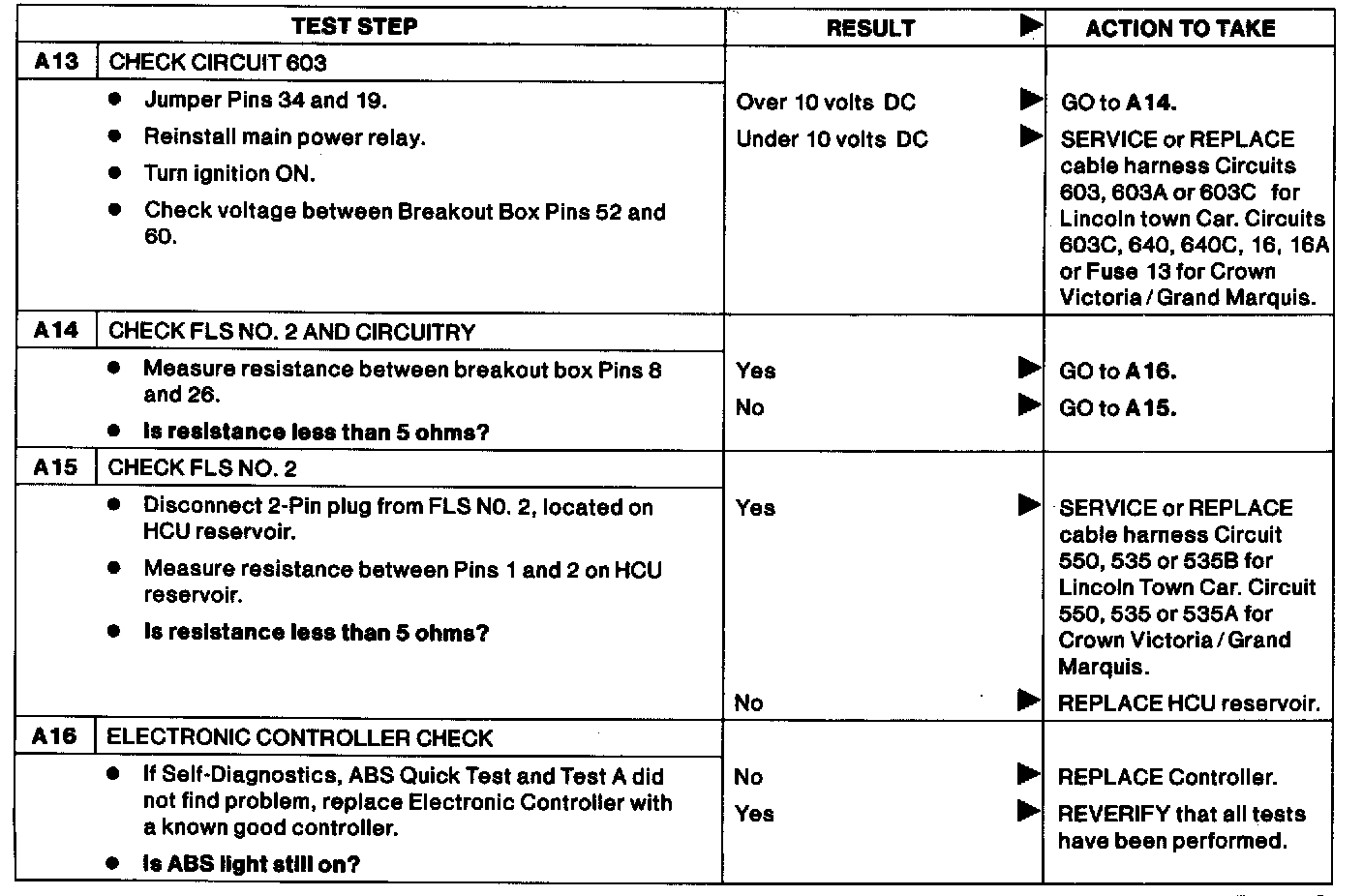

A13 - A16:
