Throttle Position Sensor: Locations

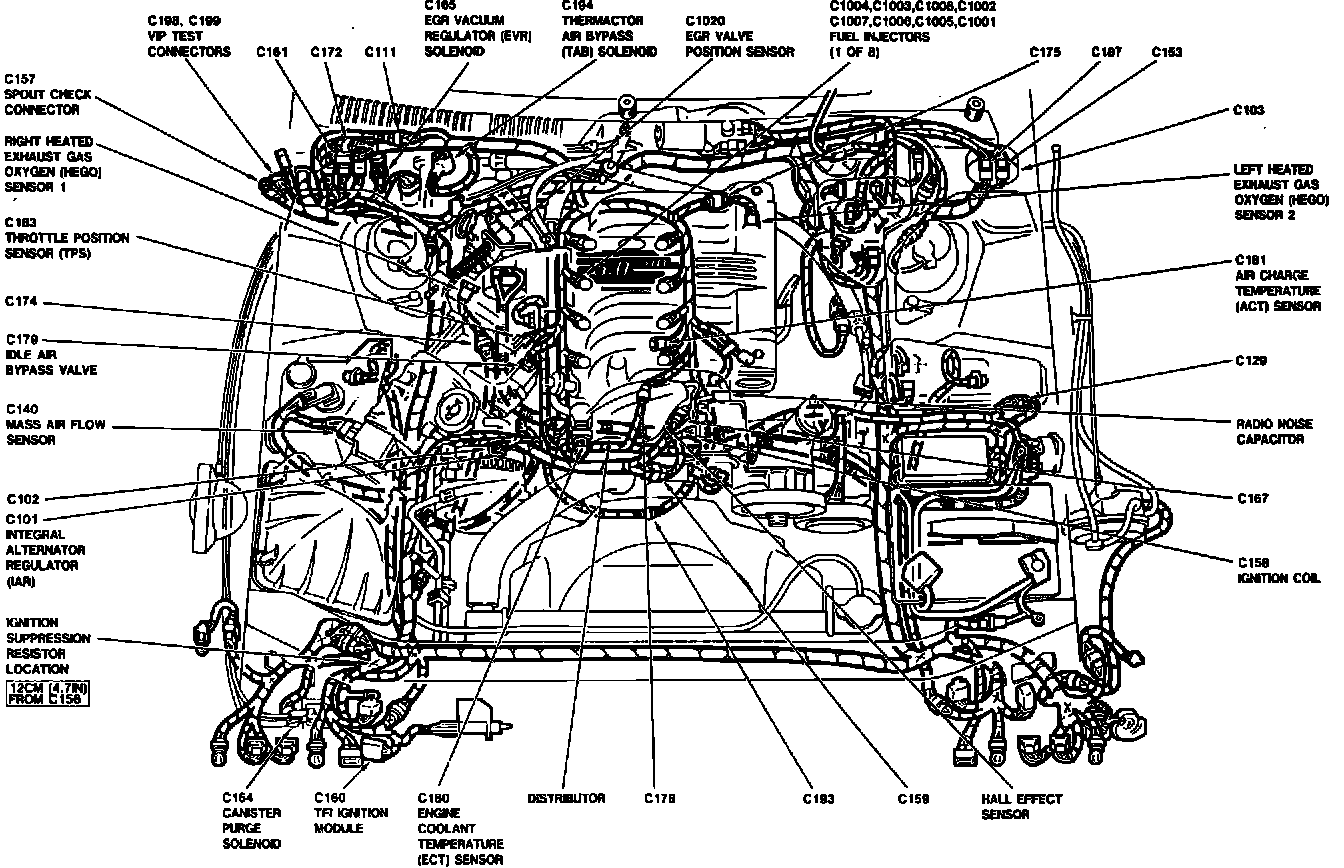

Engine Compartment Components.:




Top RH Side Of Engine, On Throttle Body

Applicable to: 3.8L/V6-232 Except Supercharged

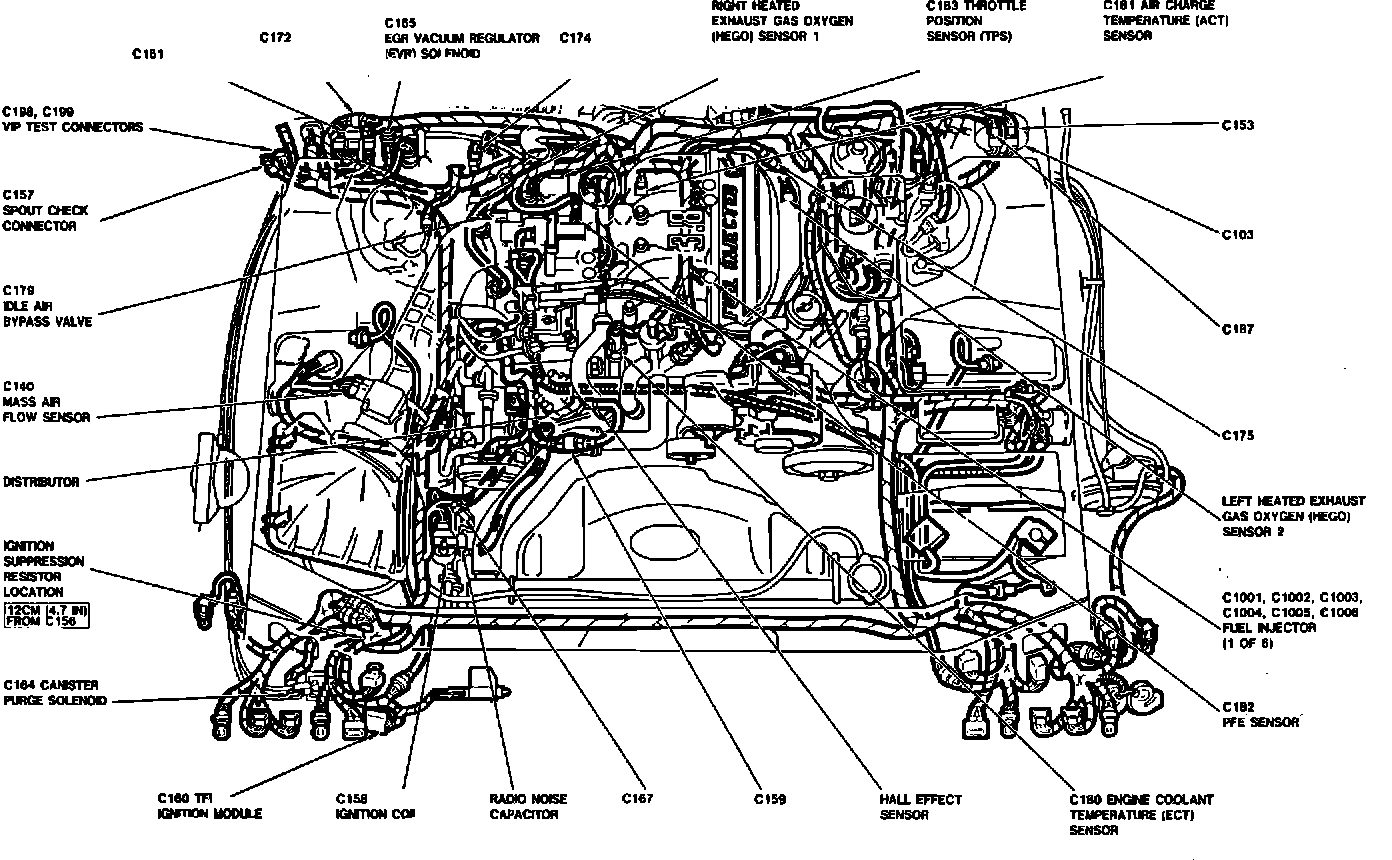

Engine Compartment Components.:




Top RH Side Of Engine, On Throttle Body

Applicable to: 3.8L/V6-232 Supercharged

Engine Compartment Components.:




Top RH Side Of Engine, On Throttle Body

Applicable to: 5.0L/V8-302
