Home >> Mercury >> 1992 >> Cougar/XR7 V8-302 5.0L HO >> Repair and Diagnosis >> Diagrams >> Connector Views >> Suspension Control ( Automatic - Electronic ) >> System Diagram >> Part 2 of 4

Part 2 of 4

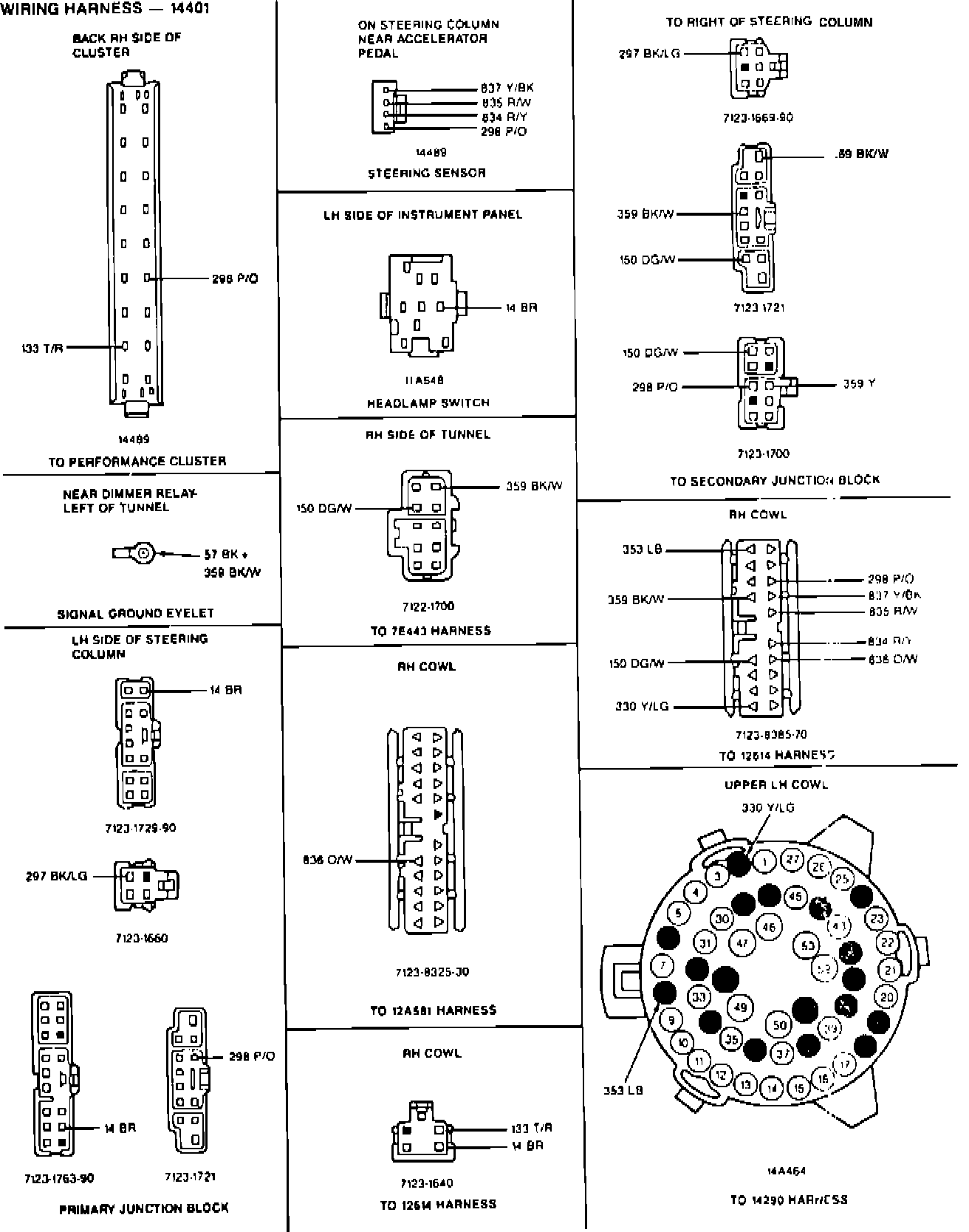

Fig. 3 Automatic Ride Control System Related Electrical Connectors (Part 2 Of 4):
