Home >> Mercury >> 1992 >> Cougar/XR7 V8-302 5.0L HO >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> FF DTC 61 Warning Circuit Diagnosis >> FF2 to FF4

FF2 to FF4

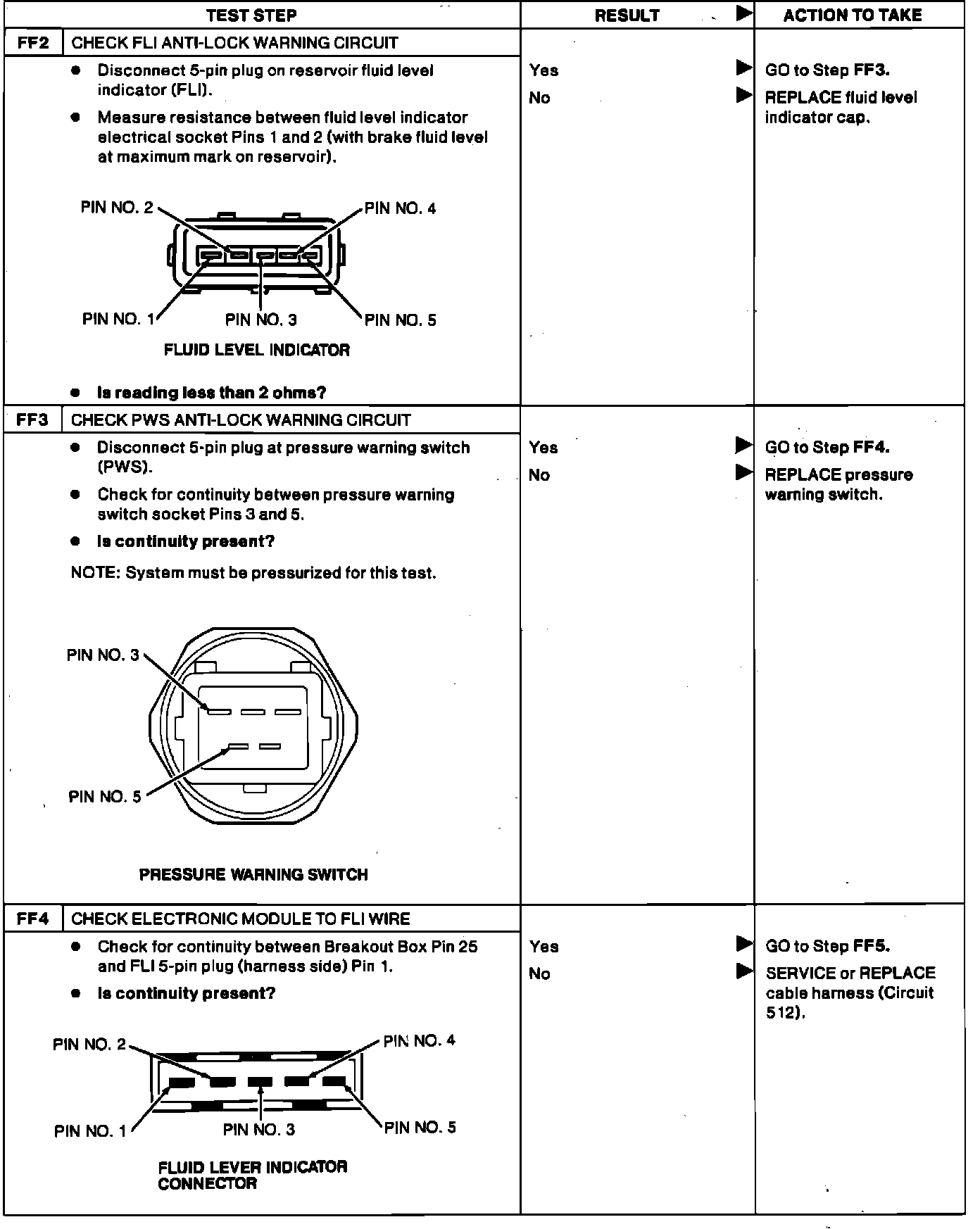

Test FF2 - FF4 Warning Circuit Diagnosis:
