D Antilock Lamp & Brake Lamp On or Pump Runs 60 Seconds
>>
D12 to D15
D12 to D15

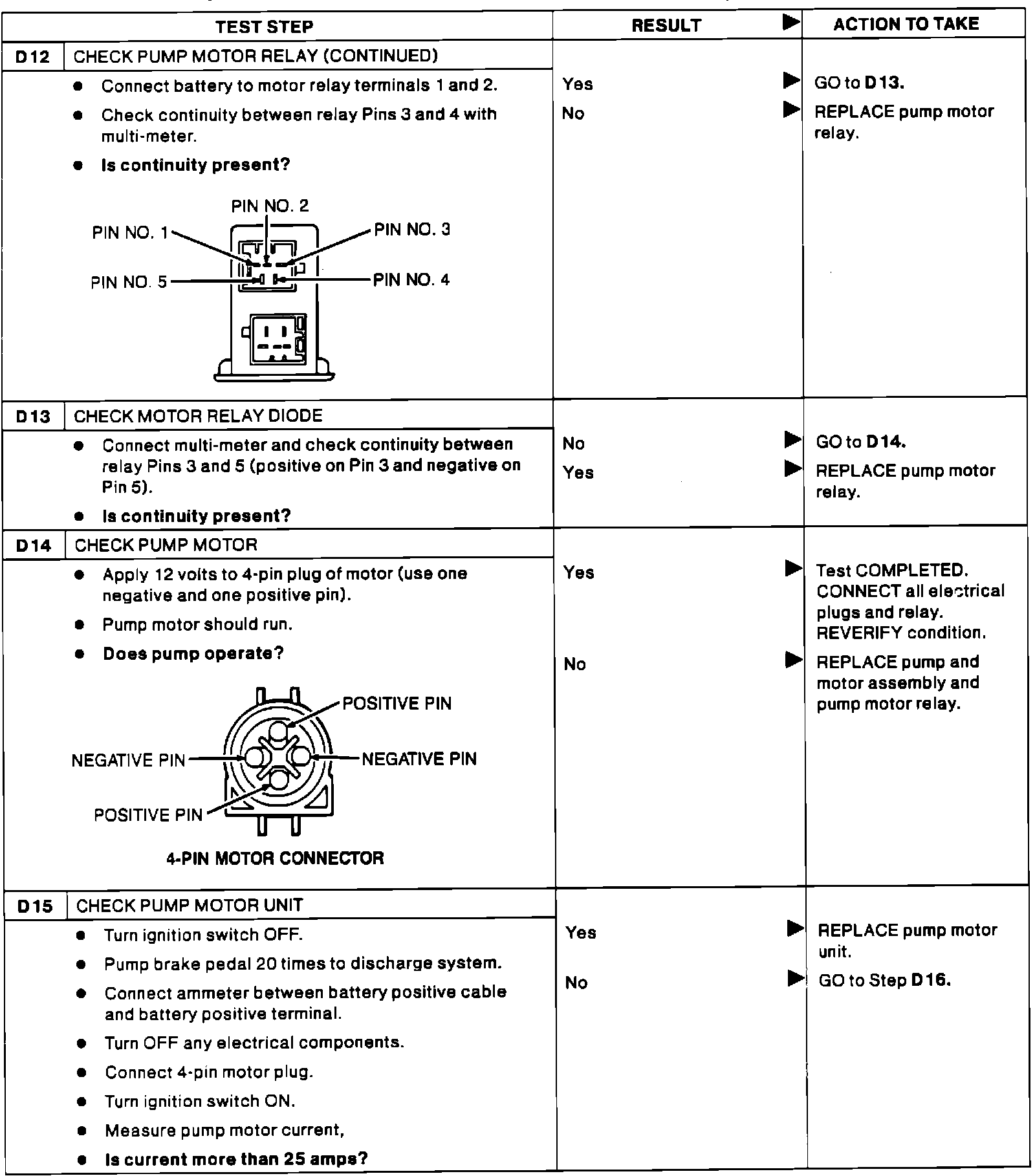

Test D12 - D15 Anti-Lock Warning Lamp And Brake Worning Lamp On And/or Pump Motor Runs More Than 60 Seconds:
