A Warning Indicator ON/Brake Warning OFF)
>>
A49 to A52
A49 to A52

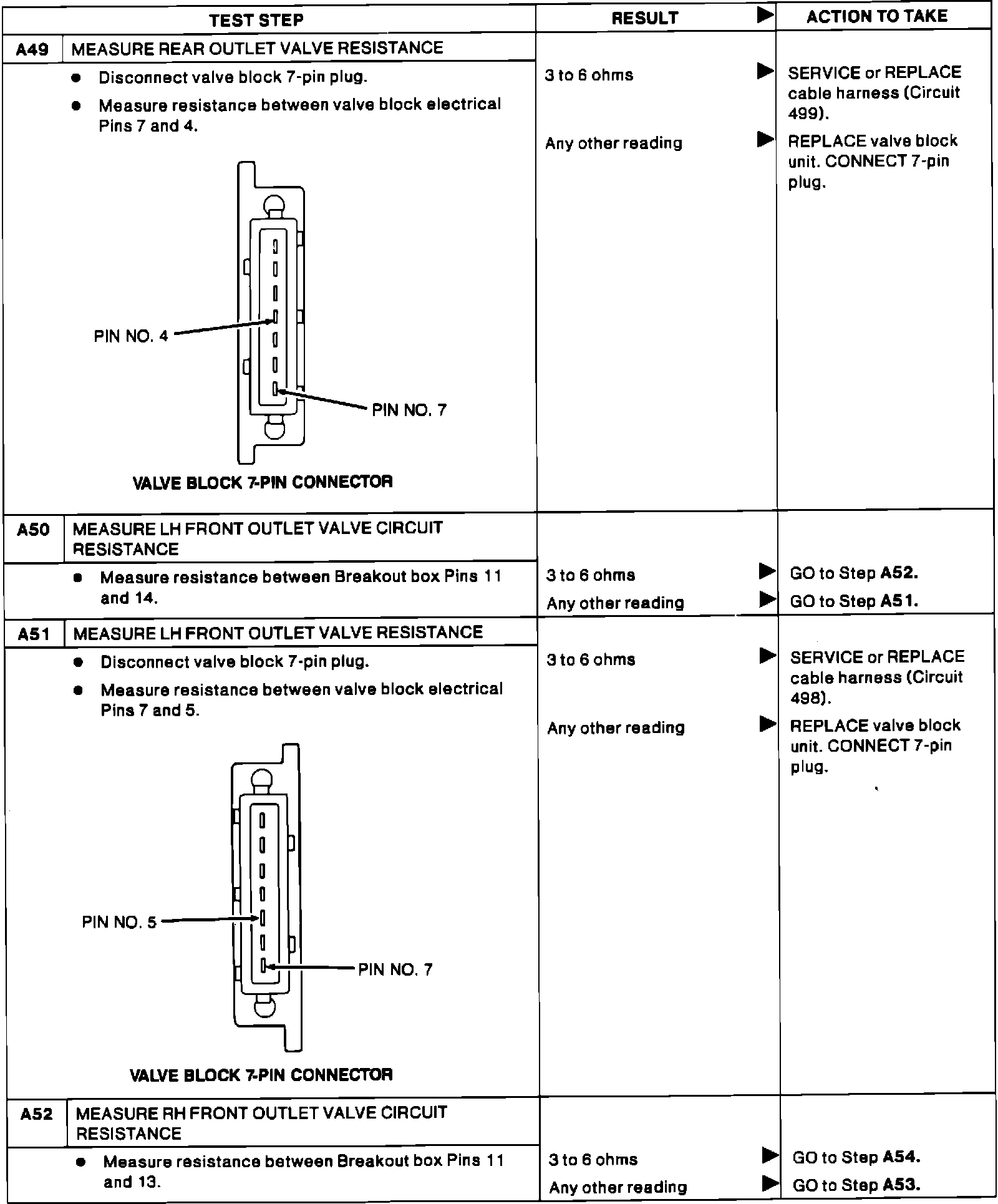

Test A49 - A52 Anti-Lock Warning Lamp On:
