Home >> Mercury >> 1992 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Instrument Panel >> Fuel Gauge Sender >> Testing and Inspection >> Test G2 - G3

Test G2 - G3

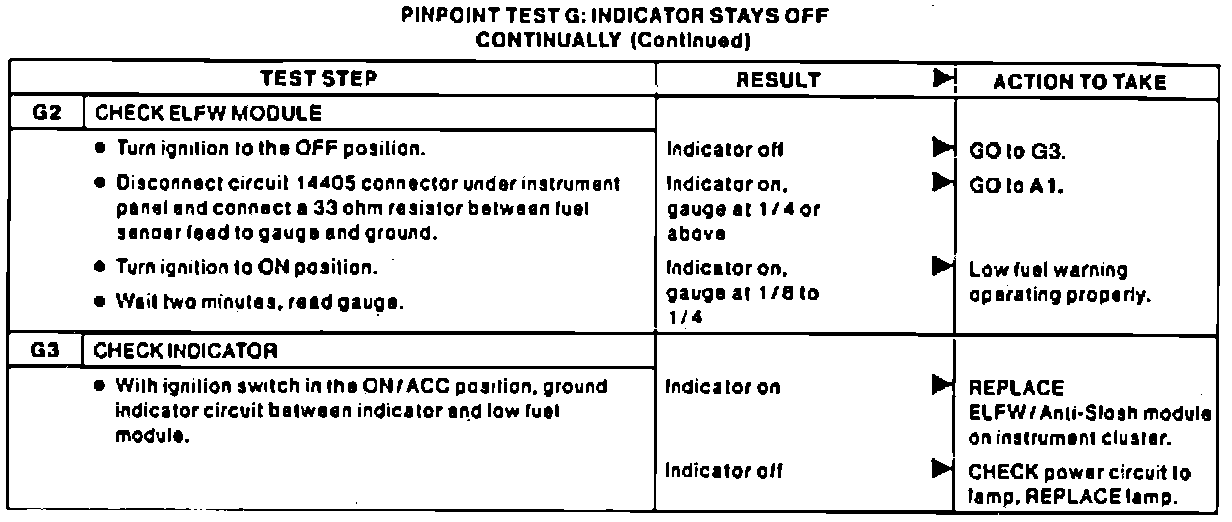

Fig. 1 Fuel Indicating System Diagnosis (Part 5 Of 5). Models w/Magnetic Gauge:
