Home >> Mercury >> 1992 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Testing and Inspection >> Pinpoint Tests >> Test K: Passive Restraint Quick Test

Test K: Passive Restraint Quick Test

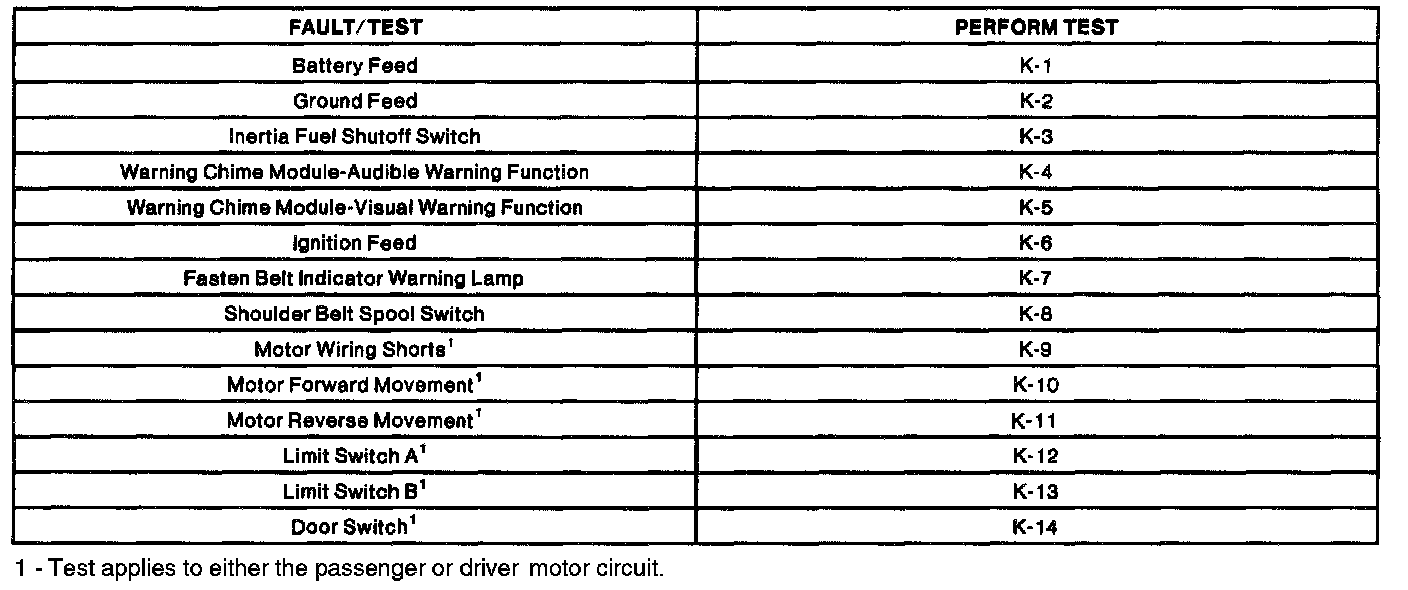

Passive Restraint Fault/Test Reference Guide:

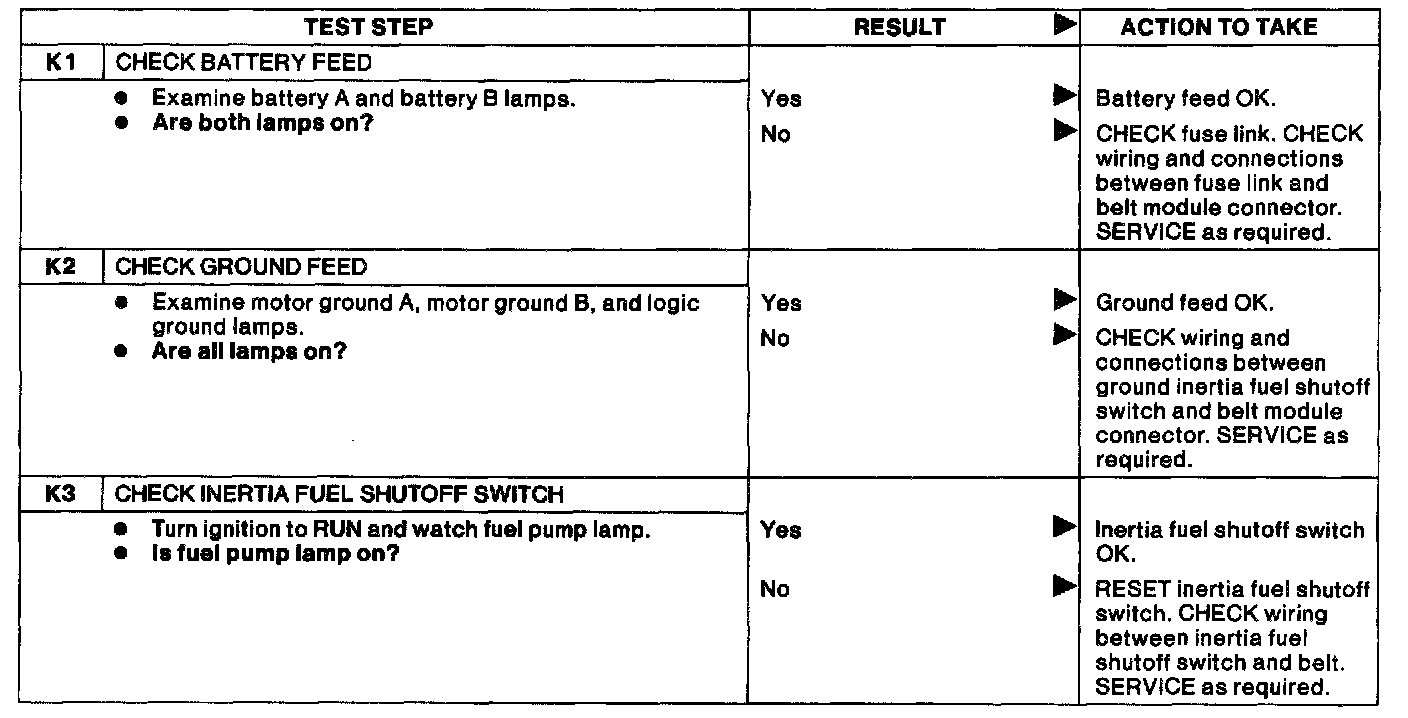

K1 - K3:

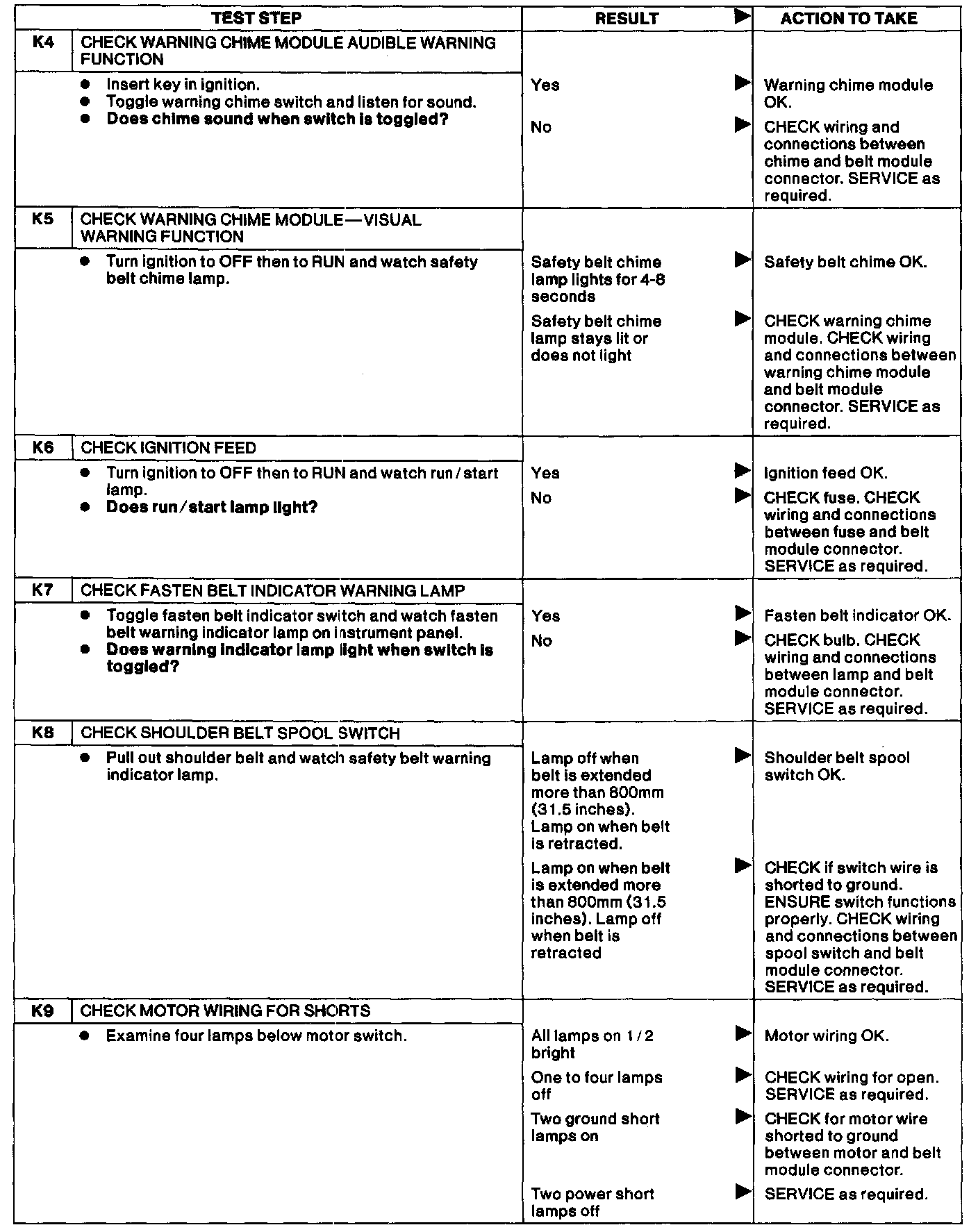

K4 - K9:

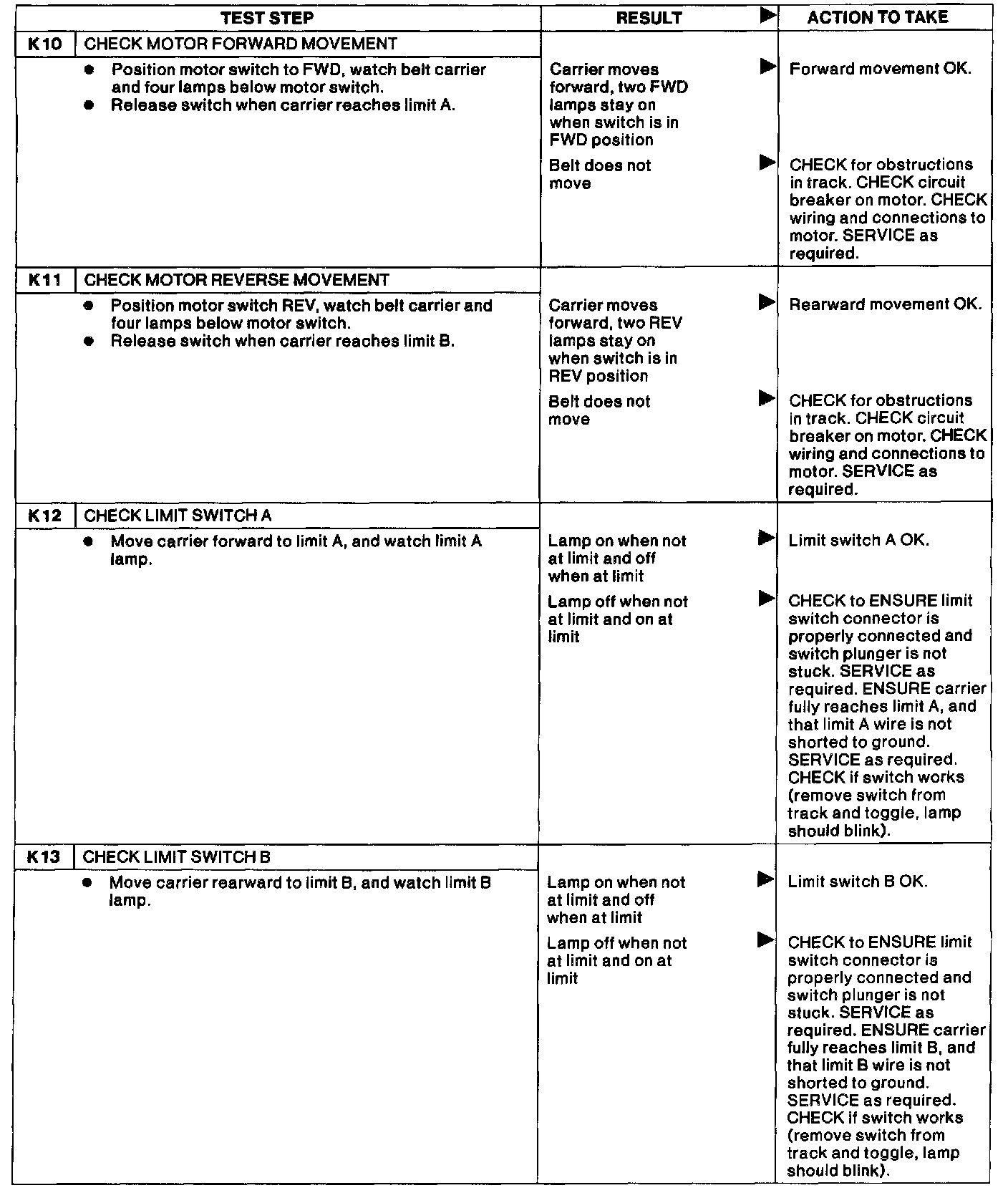

K10 - K13:

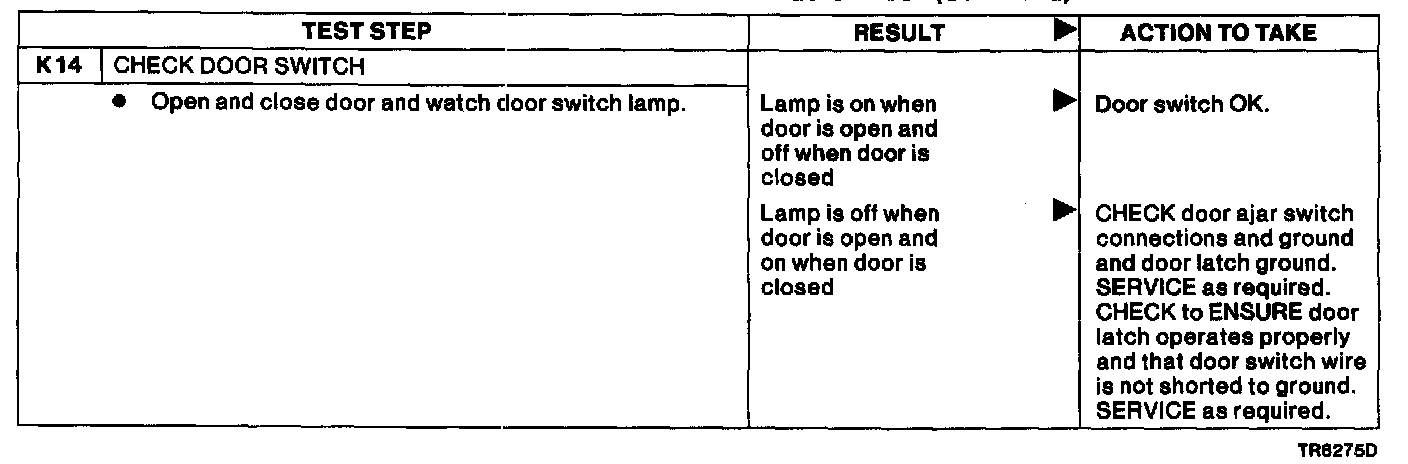

K14:
