Cougar/XR7 V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

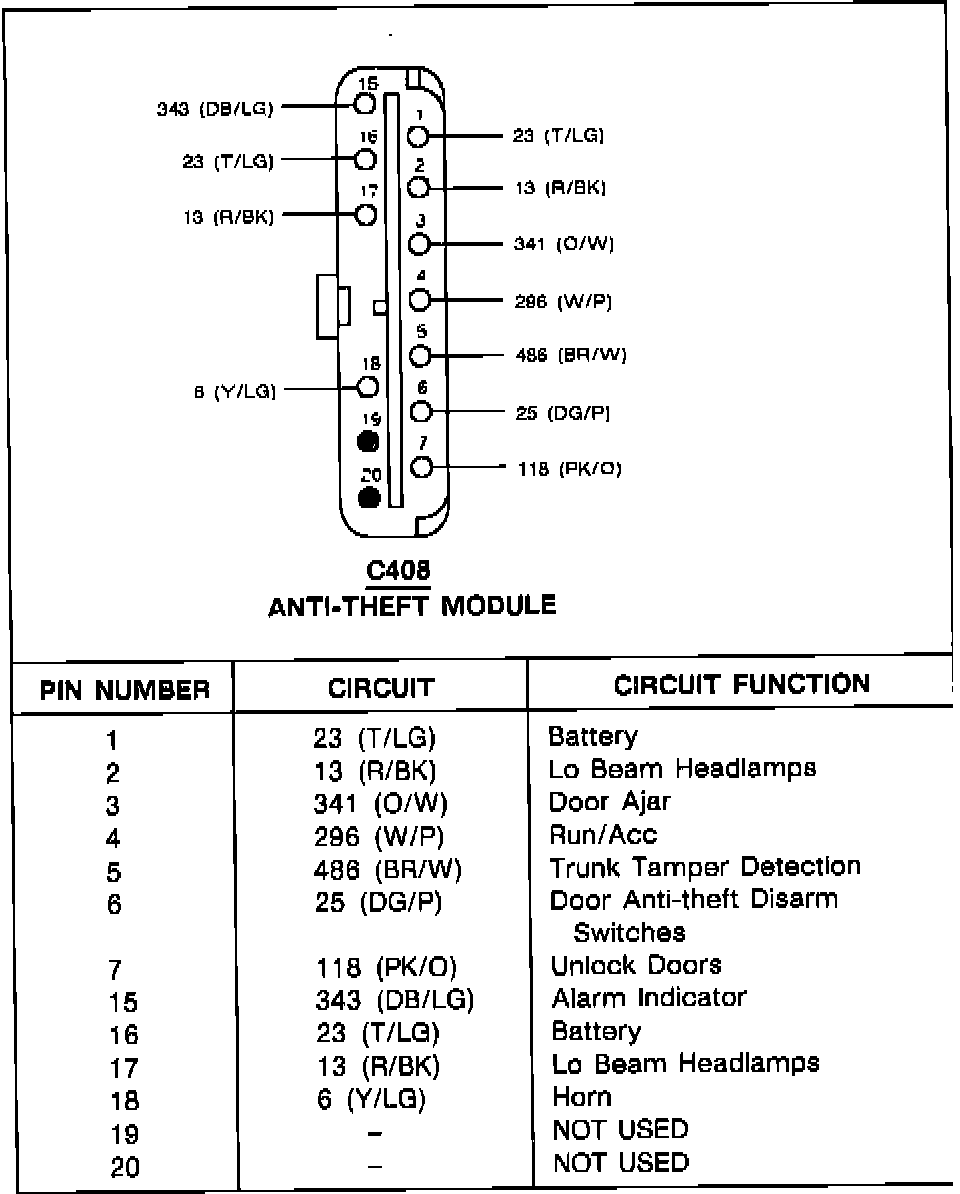

Alarm Module, (Vehicle Antitheft)
Alarm Module, (Vehicle Antitheft)

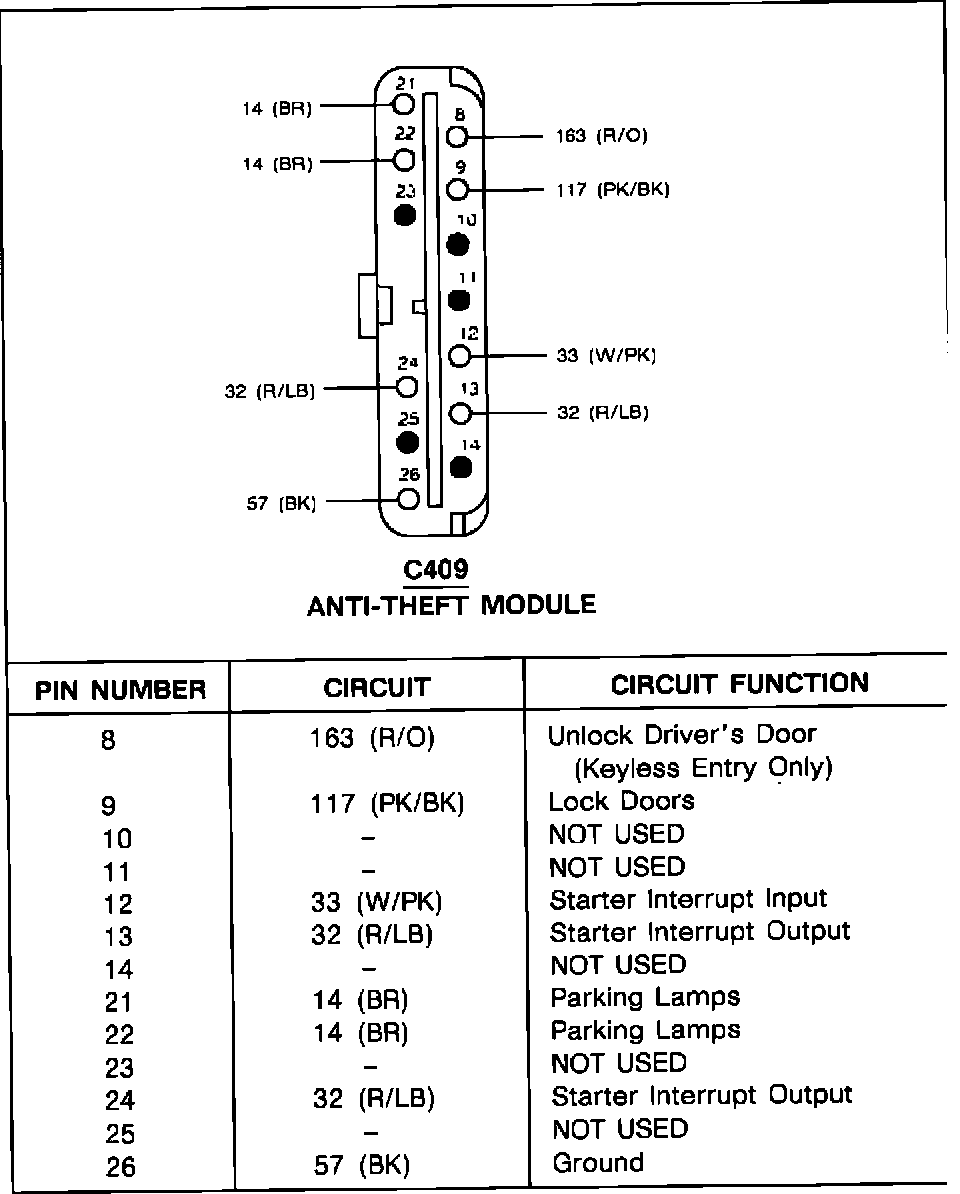

Anti-Theft Module:
Anti-Theft Module:
