Home >> Mercury >> 1992 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> FF DTC 61 Warning Circuit Diagnosis >> FF5 to FF7

FF5 to FF7

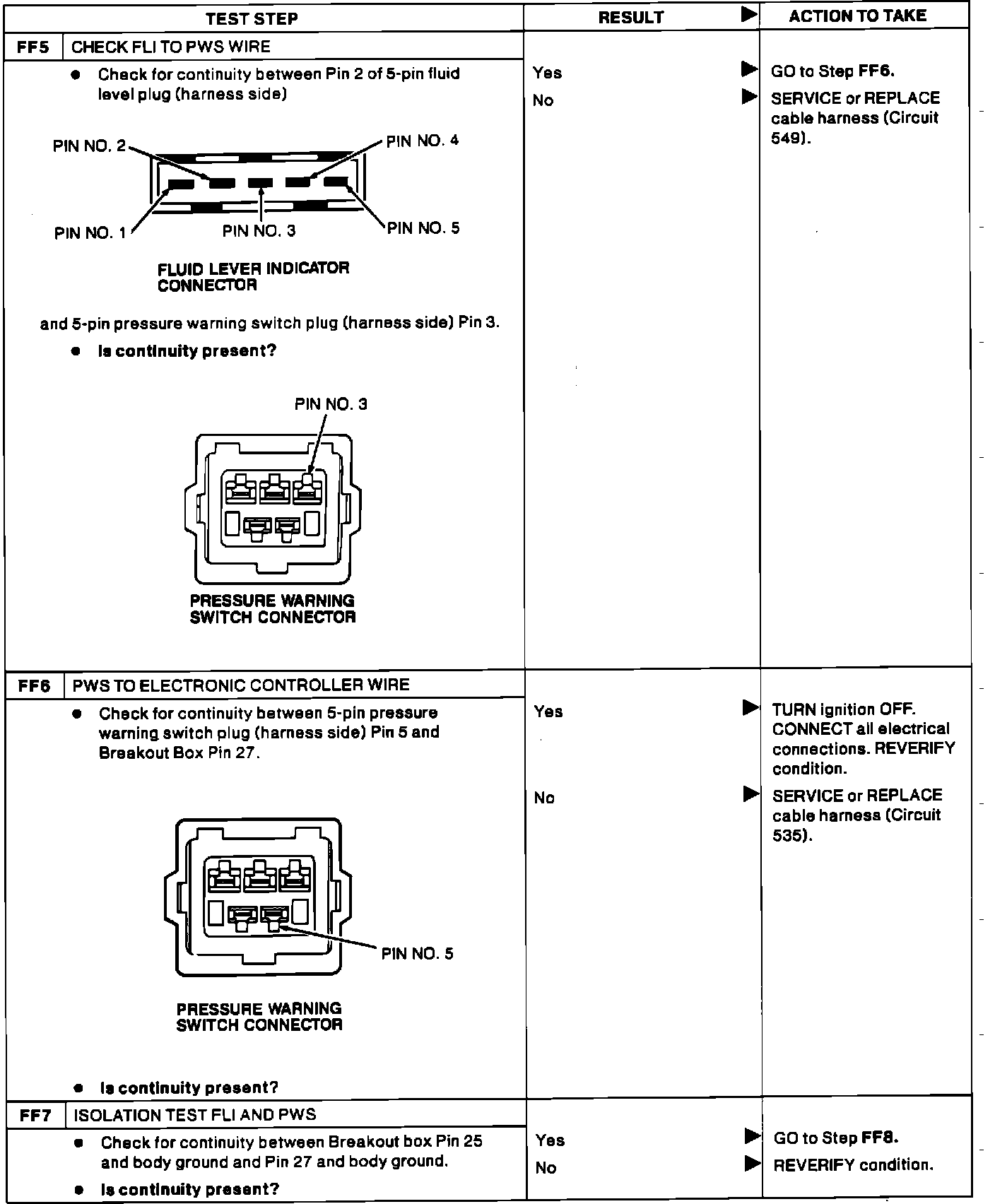

Test FF5 - FF7 Warning Circuit Diagnosis:
