Home >> Mercury >> 1992 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> E Antilock Warning Lamp Intermittently On >> E1 to E2

E1 to E2

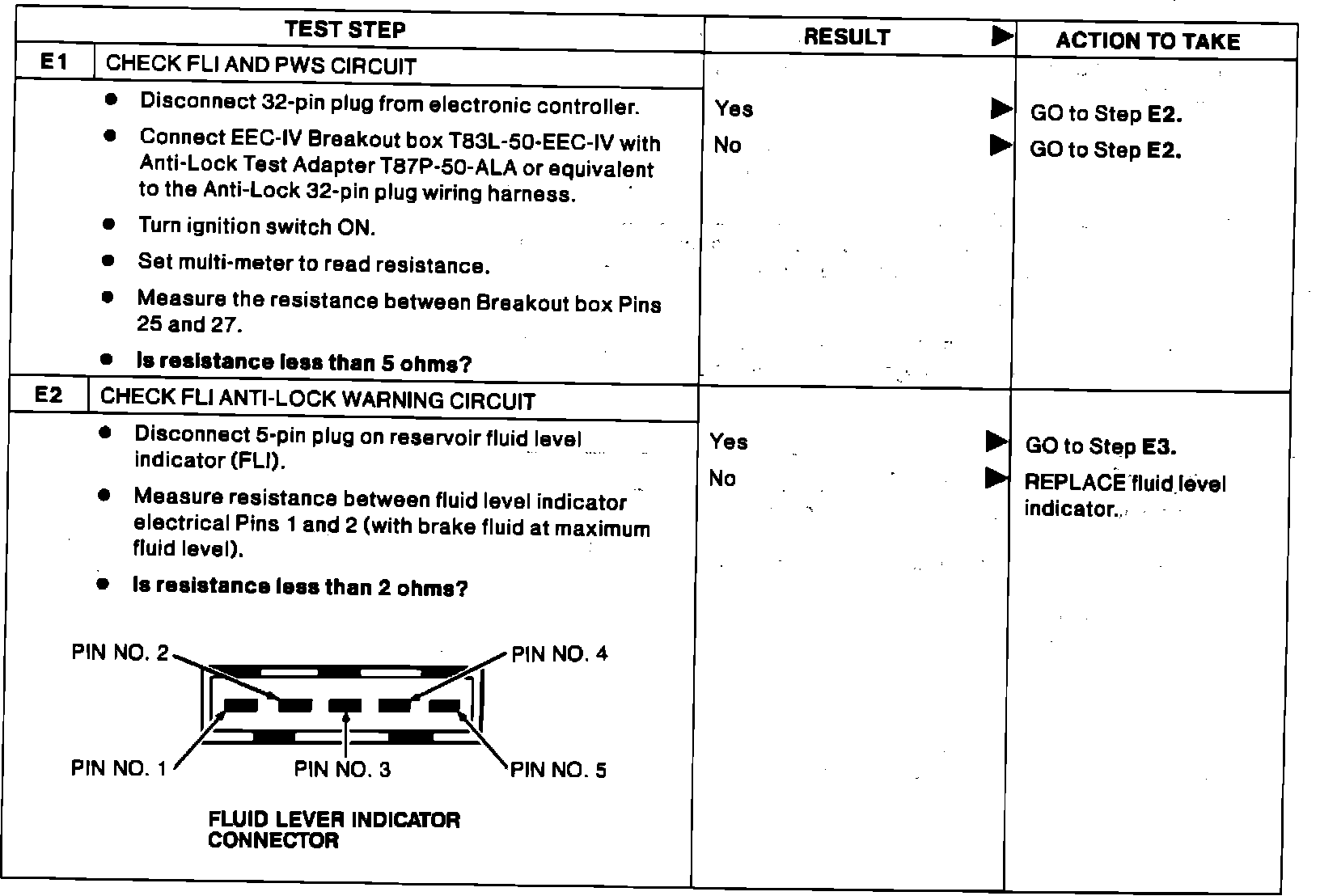

Test - E1 Anti-Lock Warning Intermittently On:
