Home >> Mercury >> 1992 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> CC Solenoid Valve Diagnosis >> CC7 to CC10

CC7 to CC10

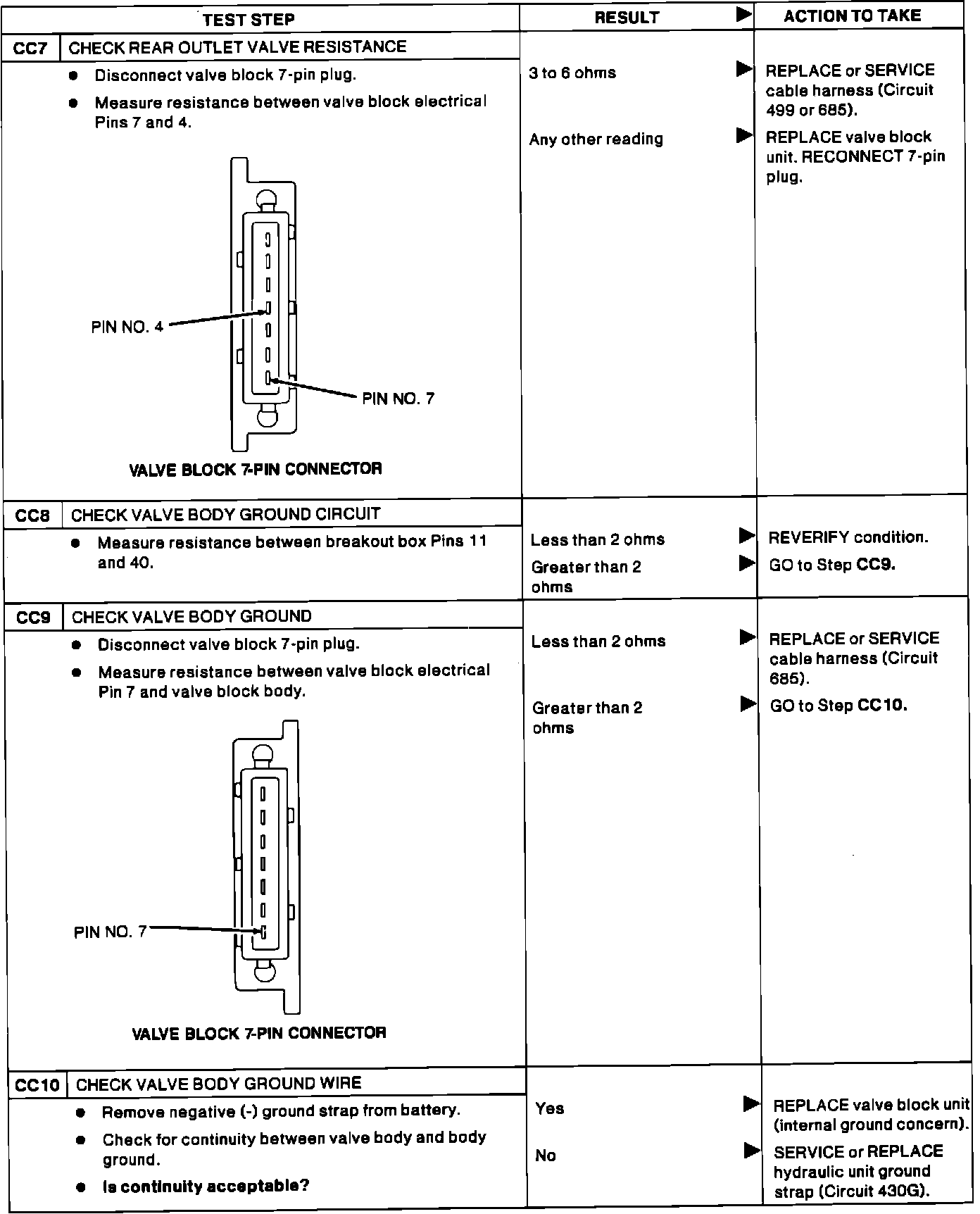

Test CC7 - CC10 Solenoid Valve Diagnosis:
