Home >> Mercury >> 1992 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> C Indicator ON or False Cycling >> C9 to C13

C9 to C13

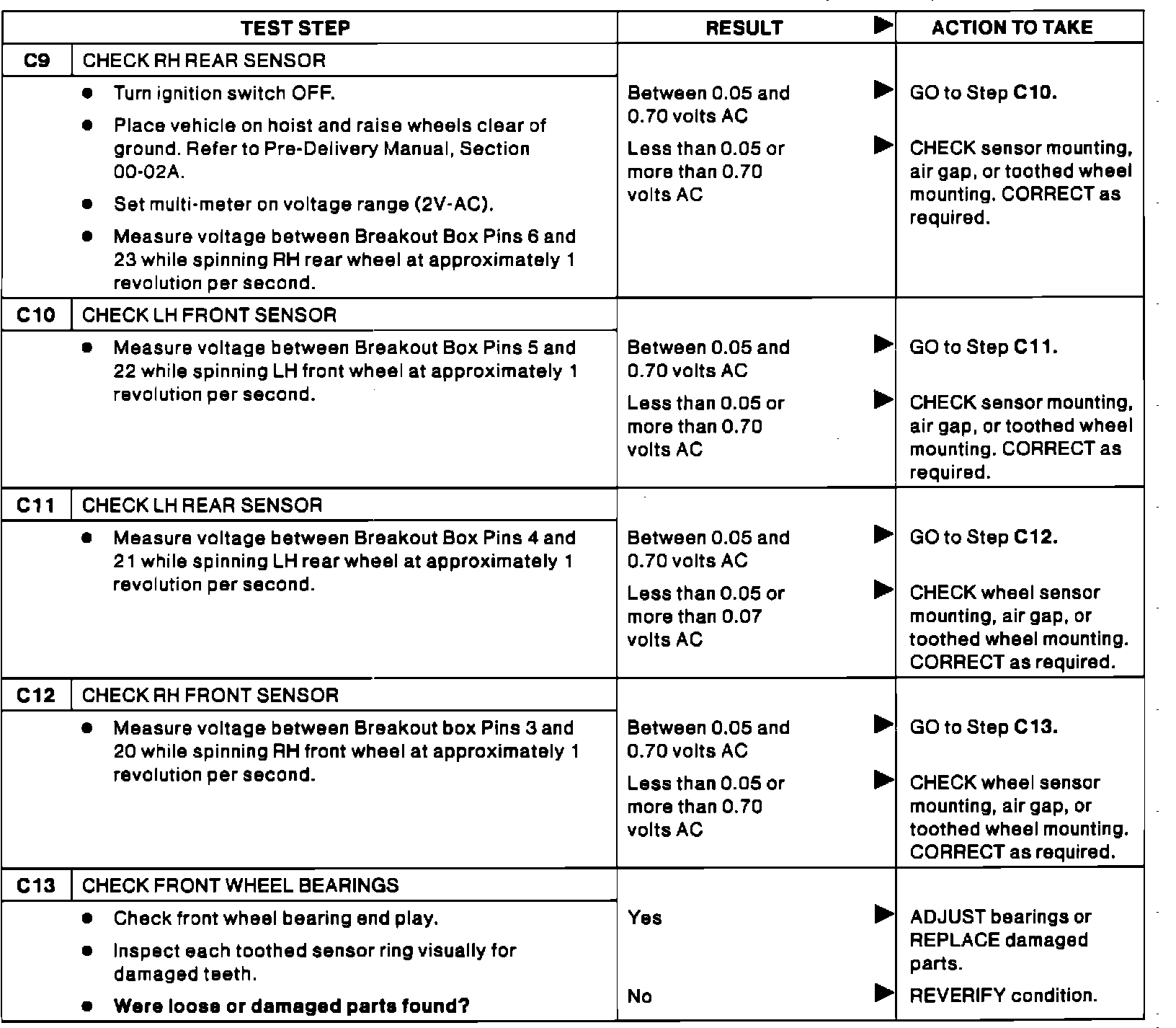

Test C9 - C13 Warning Lamp On After Vehicle Starts To Move Or False Cycling Of System:
